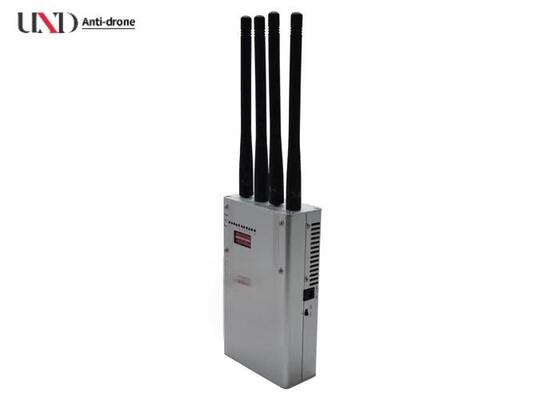

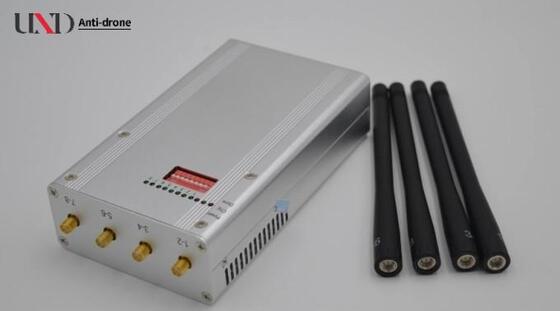

2.5dBi Omni Antennas Handheld Digital Signal Jammer
This professional handheld digital signal jammer blocks GPS, Glonass, and 4G communications with 2.5dBi omni-directional antennas. The 6.5Watt device effectively disrupts communications between RF wireless equipment including mobile phones, cellular base stations, Wi-Fi networks, and satellite phones without interfering with other communication systems.
Product Overview
The U-JN8DGN model features 8 signal frequencies controlled by 4 antennas with individual DIP switch controls for each frequency channel. Utilizing advanced digital noise technology, this jammer delivers twice the jamming range compared to traditional VCO technology jammers.
Key Features
- Compact, portable design for easy carrying and deployment
- Multiple frequency bands with individual channel on/off selector switches
- Extended battery life exceeding 1.5 hours of continuous operation
- Digital signals modulated to VCO produce RF signals that resemble noise in the RF spectrum
- Eight RF frequencies controlled by four high-efficiency antennas
- UWB frequency matching technology reduces antenna quantity while enhancing working efficiency
- Advanced digital Gaussian white noise technology for superior interference performance
Important: Do not turn on device until antennas are properly fixed in place.
Technology Comparison
VCO (Voltage Controlled Oscillator) Technology
Ideal for applications with moderate jamming range requirements, offering cost-effective solutions for civilian consumption levels.
DDS (Direct Digital Synthesis) Technology
Suitable for wideband frequency range requirements with no-gap jamming capabilities from 20-3000MHz.
Pseudo Random Digital Gaussian White Noise Technology
Designed for high jamming range requirements with superior performance for national security and military applications.
Antenna Frequency Specifications
Antenna 1: 791-821MHz & 925-960MHz
Antenna 2: GPS L2 & GPS L1
Antenna 3: 1805-1880MHz & 2110-2170MHz
Antenna 4: 2400-2485MHz & 2620-2690MHz
Technical Specifications
| Type |
Output Port |
Frequency |
Output Power (±1dBm) |
| 8 Band Digital Handheld Jammer |
LTE800 |
791-821MHz |
31dBm |
| GSM900 |
925-960MHz |
30dBm |
| GPS L2 |
1227.6±2MHz |
24dBm |
| GPS L1 |
1575.4±2MHz |
26dBm |
| DCS1800/PCS1900 |
1805-1880/1930-1990MHz |
30dBm |
| WCDMA 3G |
2110-2170MHz |
29.5dBm |
| WiFi 2.4G |
2400-2500MHz |
29.5dBm |
| LTE2600 |
2620-2690MHz |
29.5dBm |
Customizable Frequencies
LTE2300: 2300-2400MHz (29.5dBm)
CDMA800: 851-894MHz (31dBm)
LTE700: 725-770MHz (31dBm)
General Specifications
Power Supply: 50-60Hz, AC 100-240V
AC Adapter: DC12-24V with built-in 4300mAh battery
Total Output Power: 6.5Watt
Working Time: 1.5 hours
Recharging Time: 3 hours with 12V/2A adapter
Jamming Range: 10-30 meters (depending on signal strength)
Weight: 950g
Dimensions: 90x38x156mm (excluding antennas)
Packing Dimensions: 70x210x240mm
Antennas: 4 external omni-directional antennas
Operating Temperature: -10°C to +55°C
Applications
Border control units, checkpoint personnel, meeting rooms, hospitals, banks, churches, conference rooms, and other security-sensitive environments.
