Aperçu /Produits/radar de détection de drones/1D / 2D Drone Detecting Radar Four Sided Low Altitude Surveillance Radar

1D / 2D Drone Detecting Radar Four Sided Low Altitude Surveillance Radar

1
MOQ
$320,000-350,000
Prix
1D / 2D Drone Detecting Radar Four Sided Low Altitude Surveillance Radar
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Nom: Radar de détection de drones
Application: Protection de sécurité
Fonctionnalité: Durable
Taper: Détecteur de signaux
Bande de fréquence de fonctionnement: Bande X
drone: 8KM-15km
Couverture d'azimut: 360°
Dimension: 480 * 480 * 140 mm
Poids: ≤30Kg (simple face)
Mettre en évidence:

1D Drone Detecting Radar

,

2D Drone Detecting Radar

,

Four Sided Low Altitude Surveillance Radar
Informations de base
Lieu d'origine: Shaanxi, Chine
Nom de marque: UND
Conditions de paiement et expédition
Description de produit

Factory Direct Supply 1D/2D Four-sided Array Low-altitude Surveillance Radar 8KM-15KM X-band Drone Detection Radar Protection

Contact Us
Sales Engineer: Susan Chang
WhatsApp/WeChat: +86 13991372145
https://www.uav-ir.com

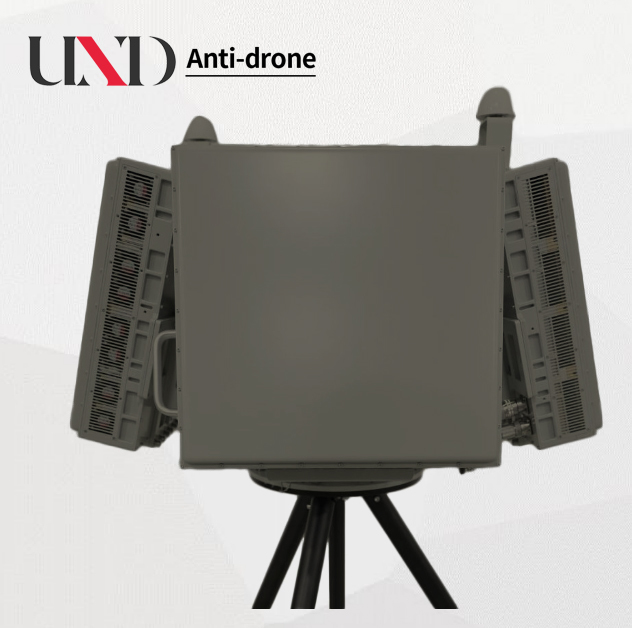

1D / 2D Drone Detecting Radar Four Sided Low Altitude Surveillance Radar 0



UND-A15 Low Altitude Surveillance Radar is a 2D Active Electronically Scanned Array (AESA) 3D radar. It can rapidly detect and continuously track targets such as drones, aircraft, and birds, while simultaneously monitoring ground personnel, vehicles, and surface vessels. By employing intelligent beam scheduling and high-performance signal processing technology, it can quickly and accurately acquire the position and motion state of targets in complex, dense multi-target environments. Within a collaborative sensing system, this radar can serve as the core perception unit, providing highprecision target data to other sensors (such as electro-optical equipment and bird repellent systems) for precise guidance. This radar is widely applicable in various fields including critical site protection, the low-altitude economy, airport bird detection, air traffic control, and border and coastal defense.

Product Features:
1. High Detection Accuracy: Based on advanced signal processing algorithms and system hardware architecture, this radar demonstrates exceptional accuracy in measuring distance, speed, azimuth, and elevation, providing stable and precise sensing data for command decisions and target tracking/countermeasures.
2. Large-Capacity Wide-Area Detection: Utilizing a two-dimensional active electronically scanned array (AESA) design, the radar achieves a wide coverage range of 360° in azimuth and 47° in elevation. Supported by a high-performance signal processor, it can detect and track up to 500 moving targets in real time within the entire field of view, effectively handling complex, large-scale, and multi-target scenarios. High Refresh Rate and Precise Tracking: The radar operates at a high refresh rate of 144 times/second and employs advanced tracking filtering algorithms, significantly enhancing its ability to track high-speed and highly maneuverable targets.
3. High Sensitivity and Low False Alarm Rate: Advanced clutter suppression technology effectively extracts weak target signals in complex electromagnetic environments with strong ground or weather clutter, while maintaining an extremely low false alarm probability, greatly improving radar efficiency.
4. All-Solid-State and High Reliability: The design without mechanical scanning components ensures high reliability and low maintenance costs. Flexible Beam Control: Supports TAS tracking capability up to 4Hz, allowing for focused monitoring of up to 8 high-threat targets.

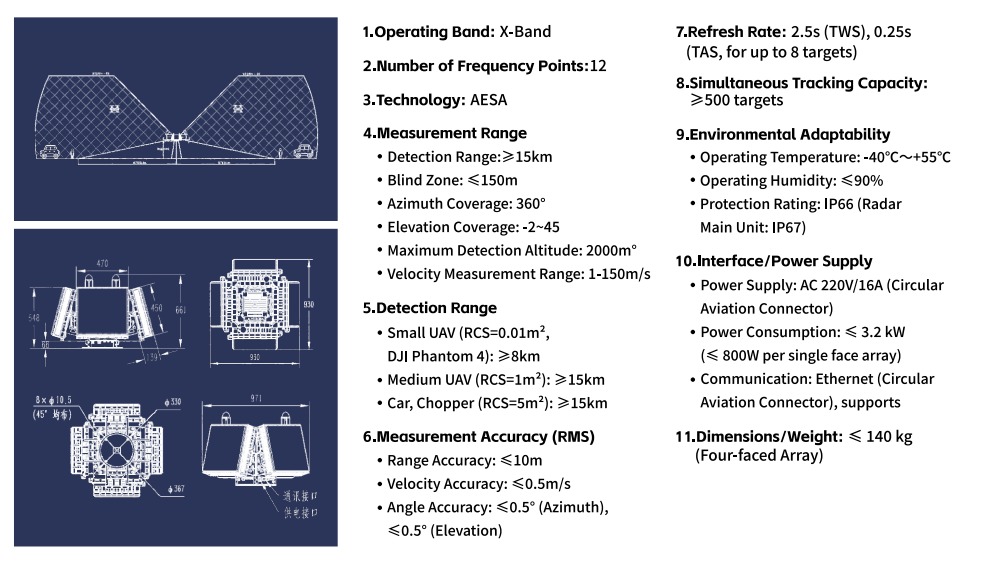

Product Specifications
1D / 2D Drone Detecting Radar Four Sided Low Altitude Surveillance Radar 2
Product Applications
1D / 2D Drone Detecting Radar Four Sided Low Altitude Surveillance Radar 4

ABOUT US



 1D / 2D Drone Detecting Radar Four Sided Low Altitude Surveillance Radar 6



1D / 2D Drone Detecting Radar Four Sided Low Altitude Surveillance Radar 8



 1D / 2D Drone Detecting Radar Four Sided Low Altitude Surveillance Radar 10





Certification



1D / 2D Drone Detecting Radar Four Sided Low Altitude Surveillance Radar 121D / 2D Drone Detecting Radar Four Sided Low Altitude Surveillance Radar 14



Why Choose Us?

OEM/ODM capabilities

Competitive pricing & bulk discounts

Fast shipping & customs clearance support

Turnkey project solutions

FAQ

Q: What’s the lead time for orders?

A: Standard models ship in 15–30 days; customized units require 30–45 days.

 Q: Do you provide after-sales service overseas?

A: Yes, we have partnered service centers in key regions.

 Q: Can I request a customized bucket size?

A: Absolutely! We offer tailored attachments.

 Q: What documents do you provide for export?

A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

 Q: How do I place an order?

A: Contact us via email/phone for a quote, then confirm with a PO.
