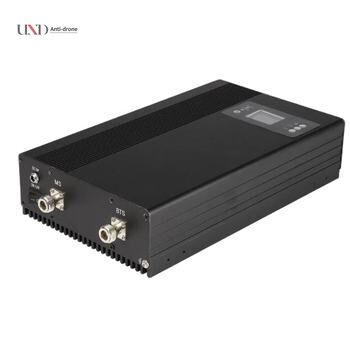

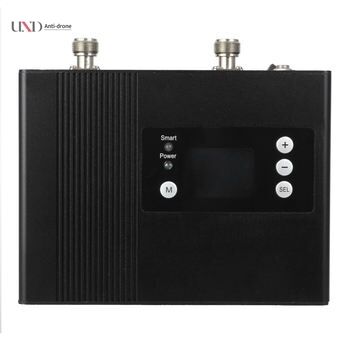

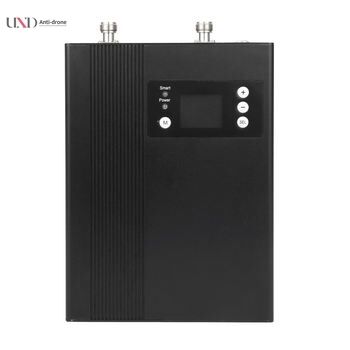

BTS Port: Connect donor antenna cable to Outdoor Port
MS Port: Connect service whip antenna to Indoor Port
DC IN: Connect to Power adapter
| Parameter | Uplink | Downlink |
|---|---|---|
| GSM900 Frequency Range | 880-915MHz | 925-960MHz |
| DCS 1800 Frequency Range | 1710-1785MHz | 1805-1880MHz |
| WCDMA 2100 Frequency Range | 1920-1980MHz | 2110-2170MHz |
| Gain | 75dB±2dB | 80dB±2dB |
| Output Power | 27dBm±2dBm | 30dBm±2dBm |
| Band Width | Wide Band | |
| Manual Gain Control | 31dB / 1dB Step | |
| ALC | ≥ 20dB | |
| Ripple in Band | 8dB | |
| Noise Figure | ≤ 6dB | |
| VSWR | ≤ 2.0 | |
| Intermodulation Products | ≤ -40dBc | |
| Spurious Emission | 9KHz~1GHz: ≤ -36dBm/30KHz | 1~12.75GHz: ≤ -30dBm/30KHz |
| Time Delay | ≤ 1.5 μs | |
| Frequency Stability | ≤ 0.01ppm | |
| MTBF | > 50,000 hours | |
| Impedance | 50Ω | |
| Power Supply | AC 90-264V, DC 10V/10A | |
| Power LED | Power indicator | |
| Alarm LED | Red: Self oscillation or Strong input signal | Green: Normal operation |
| RF Connector | N-Female | |
| Switch | Power Switch | |
| Cooling System | Heatsink Convection cooling | |
| Humidity | < 90% | |
| Operating Temperature | -10°C to +55°C | |
| Environment Conditions | IP40 (Indoor use) | |
| Installation Type | Wall Installation | |
| Size | 439 * 268 * 58mm | |
| Weight | 7Kg | |
