홈 /제품 소개/호송 폭탄 방해기/720W Full Band Signal Jammer 20MHz - 6000MHz Vehicle Jammer System With Military Spec Shockproof Case

720W Full Band Signal Jammer 20MHz - 6000MHz Vehicle Jammer System With Military Spec Shockproof Case

1
MOQ
Please consult a sales engineer
가격
720W Full Band Signal Jammer 20MHz - 6000MHz Vehicle Jammer System With Military Spec Shockproof Case
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
이름: 풀 밴드 신호 방해기
전원공급장치: AC 어댑터 50~60Hz, (AC220V)
총 전력: 720W
작동 온도: -30 ° C ~ 60 ° C
실드 반지름: 100-500미터(특정 지역의 신호 강도에 따라 다름)
패키지 무게: 80kg(순) / 105kg(안테나 포함 총중량)
패키지 크기: 1060×720×625mm
강조하다:

720W Full Band Signal Jammer

,

Full Band Signal Jammer 20MHz

,

6000MHz Vehicle Jammer System
기본 정보
원래 장소: 중국
브랜드 이름: UND
모델 번호: U-BJ-Vip12
결제 및 배송 조건
배달 시간: 5~8일
지불 조건: 티/티
공급 능력: 100
제품 설명
720W High Power 20-6000MHz Full Band Convoy Bomb Jammer Vehicle Jammer System with Military Spec Shockproof Case
This high power DDS convoy jamming system implements the most effective and reliable RF jamming technology, featuring a fully-integrated broadband jamming system. Designed for VIP protection and group security, it disables radio-controlled improvised explosive devices in dangerous areas and prevents information leakage during confidential communications.
Key Features
Total output power of 640W with ultra-broadband frequency coverage from 20MHz to 6000MHz
12 modular plug-and-play design for easy future upgrades, replacement, and maintenance
Each band features VSWR and temperature over-protection
American Mil-spec standard casing with shockproof and drop-resistant construction
Up to 400MHz frequency range per band using DDS technology
Compact design weighing no more than 70kg
Integrated smart active cooling system for continuous operation
Equipped with flange spring omnidirectional antenna and optional up/down lifter
Optional integrated backup UPS battery system providing approximately 100 minutes of continuous silent operation
Technical Specifications
Frequency Channels & Output Power
Channel Output Port Frequency Range Average Output Power
CH1 Radio Control Toys, Phones & Alarms 20-100MHz 47dbm / 50W
CH2 Walky-talky (VHF) UHF/RC315 100-400MHz 47dbm / 50W
CH3 Walky-talky (UHF) 400-800MHz 47dbm / 50W
CH4 Cellular CDMA/GSM 800-1000MHz 47dbm / 50W
CH5 Wireless Camera GPSL5 1000-1400MHz 47dbm / 50W
CH6 GPSL1/GLONASS/5G1500 1400-1620MHz 47dbm / 50W
CH7 Cellular DCS & PCS & UMTS/WCDMA (3G) 1800-2200MHz 47dbm / 50W
CH8 WLAN & Bluetooth & WiFi2.4G / Cellular 4G LTE 2600 or 2300 2300-2700MHz 47dbm / 50W
CH9 Cellular 5G3500/3700 3400-3800MHz 47dbm / 50W
CH10 WIFI5.2G 5100-5500MHz 47dbm / 50W
CH11 Wi-Fi 5.8G 5500-5580MHz 47dbm / 50W
CH12 Option
General Specifications
Power Supply: AC adapter 50 to 60Hz, (AC220V)
Total Power: 720W
Device Dimensions: 978*719*467mm (excluding antenna)
Device Weight: 65kg (Net Weight)
Package Dimensions: 1060*720*625mm
Package Weight: 80kg (Net) / 105kg (Gross including antennas)
Shielding Radius: 100-500 meters (depending on signal strength in given area)
Working Temperature: -30°C to 60°C

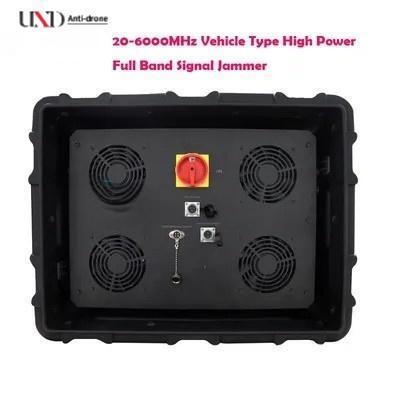

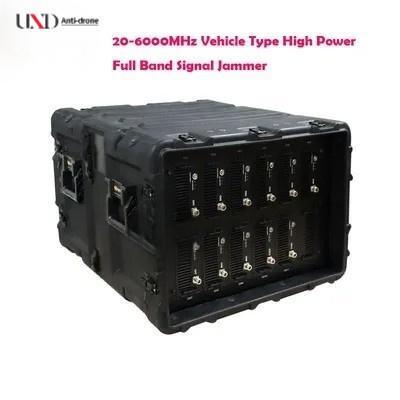

Product Images
720W Full Band Signal Jammer 20MHz - 6000MHz Vehicle Jammer System With Military Spec Shockproof Case 0 720W Full Band Signal Jammer 20MHz - 6000MHz Vehicle Jammer System With Military Spec Shockproof Case 1
