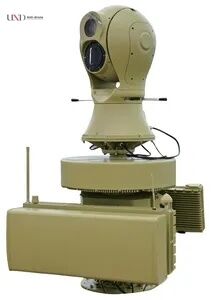

RF Drone Signal Jammer 3km Anti Drone Equipment With 360 Degree Monitoring

1
MOQ
Please consult a sales engineer
가격
RF Drone Signal Jammer 3km Anti Drone Equipment With 360 Degree Monitoring
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
이름: 드론 신호 방해기
감지 범위: 1~3km
기능: 탐지+추적+재밍
기원: 중국
사양: 방위각 360도; 완전한 공역
생산능력: 100개/년
운송 패키지: 알루미늄 합금 패키지
강조하다:

RF Drone Signal Jammer

,

3km Anti Drone Equipment

,

360 Degree Monitoring Anti Drone Equipment
기본 정보
원래 장소: 중국
브랜드 이름: UND
모델 번호: 안티 드론 시스템
결제 및 배송 조건
배달 시간: 5~8일
지불 조건: 티/티
공급 능력: 100
제품 설명
Drone Signal Jammer Anti-drone System with 3km Detection Range RF Neutralization and 360 Degree Monitoring
R&D Background
As rapid evolution of low-cost, highly capable drones presents new security challenges, our integrated anti-drone solution provides comprehensive drone defense protection through a unique and flexible approach.
Radar Detection Subsystem
Drone detection radar provides real-time detection and monitoring with 360°/90° coverage and fast scan rates, capable of detecting drones at distances up to 1-3km with automatic detection and tracking of multiple targets.
  • Microwave Pulse Doppler technology (C-band & S-band)
  • Detection of various moving objects including pedestrians, vehicles, and low-flying drones
  • 360°/90° real-time monitoring coverage
  • Available for short, medium, and long-range requirements
RF Detection Subsystem
RF detection system passively detects and identifies RF transmissions related to drones, even in low-power or RF-noisy conditions, providing comprehensive drone identification capabilities.
  • Detection of any drone emitting RF signals (known and unidentified drones)
  • 360° detection radius up to 3km diameter
  • Simultaneous detection of multiple drones during intrusion
  • Geolocation of both drone and drone controller
EO Visual and Thermal Camera Tracking
Our visual and thermal camera surveillance provides target viewing capability day and night, serving as an additional layer to RF/Radar systems for visual confirmation of detected targets.
  • High sensitivity tracking capability within detection range
  • Excellent visual output for day camera and thermal imaging
  • Visual intrusion alarm system
RF Neutralization Subsystem
Designed to neutralize unauthorized drone flights by interfering with control and navigation signals, providing effective drone countermeasures.
  • GNSS: 1550-1620 MHz
  • Remote Control Signal: 860-930MHz; 2400-2500MHz; 5725-5850MHz
  • Optional Frequencies: 5150-5350MHz; 315MHz; 433MHz
  • Omnidirectional & directional antenna options available
  • Additional jamming bands available upon demand
  • Range: Remote Control Signal 1-3km; GNSS Signal 3-5km
Monitoring Software Center
Information processing and command center for automatic UAV detection and defense system, providing comprehensive control and analysis capabilities.
  • Simple, intuitive display and control of multiple subsystems
  • Microsoft Windows based platform
  • User-definable alert and exclusion zones
  • Automatic selection of background maps
  • Continuous record and playback for post-event analysis
