Ultra-Precise 3km Detection Range Anti-drone System with 360 Degree Monitoring and RF Neutralization

1
MOQ
Please consult a sales engineer
가격
Ultra-Precise 3km Detection Range Anti-drone System with 360 Degree Monitoring and RF Neutralization
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
발각: 레이더
운송 패키지: 알루미늄 합금 패키지
생산능력: 10000 조각/년
범위: 1km/3km/4-6km
사양: 약 100kg
기원: 중국
강조하다:

3km detection range anti-drone system

,

360 degree monitoring counter UAV solution

,

RF neutralization drone defense system
기본 정보
원래 장소: 중국
브랜드 이름: UND
결제 및 배송 조건
배달 시간: 5~8일
지불 조건: 티/티
공급 능력: 100
제품 설명
Ultra-Precise Drone Detection Counter UAV Jamming Anti-Drone Systems
Auto Counter UAVs Solution

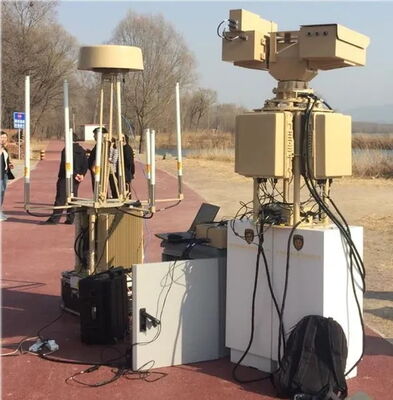

Our integrated anti-drone solution provides comprehensive drone defense protection through a unique and flexible approach. The system combines RF sensor passive detection, radar active surveillance, EO/IR tracking and location of multiple detected low-flying drones, along with mitigation capabilities via RF neutralization.
Radar Detection Subsystem
Drone Radar Real-Time Detection
Radar systems emit electromagnetic waves and process echoes reflected by objects to locate them. Our drone detection radar provides front-end real-time detection and monitoring with 360°/90° coverage and fast scan rates, capable of detecting drones at distances up to 1-3km with automatic detection and tracking of multiple targets.
Radar Surveillance Systems
  • Microwave Pulse Doppler technology (C-band & S-band)
  • Detection of wide variety of moving objects including pedestrians, land vehicles, and low-flying drones
  • 360°/90° real-time monitoring capabilities
  • Available for short, medium, and long-range requirements
Drone detection radar works in combination with RF detection or RF neutralization systems to provide comprehensive drone detection and counteraction within protected areas.

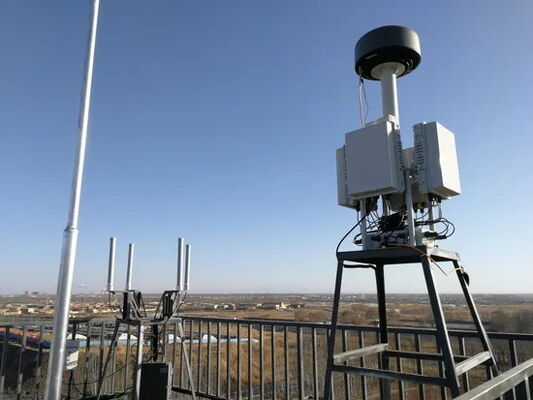

RF Detection Subsystem
RF Passive Sensor Detection System
Civil drones are typically operated via radio control signals and often have on-board data link transmitters. Our RF detection system can passively detect and identify RF transmissions related to drones, even in low-power or RF-noisy conditions.
RF Drone Detection Systems
  • RF sensor detection for any drone emitting RF signals (known and unidentified drones)
  • 360° detection radius up to 3 kilometer diameter
  • Simultaneous detection of multiple drones during intrusion events
  • Geolocation capability for both drone and drone controller
RF sensor detection systems work together with radar detection to provide 3D location data, flight height, and air speed measurements. The system automatically triggers alerts upon drone detection.

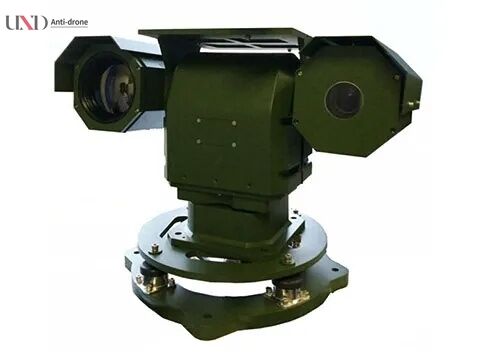

EO Visual and Thermal Camera Tracking
Our visual and thermal camera surveillance provides target viewing capability day and night, serving as an additional layer on top of RF/Radar systems to provide imaging of detected targets.
  • High sensitivity tracking capability within detection range
  • Excellent visual output for day cameras and thermal imaging cameras
  • Visual intrusion alarm systems
RF Neutralization Subsystem
The RF neutralization subsystem is designed to neutralize unauthorized drone flights by interfering with their control and navigation signals.
Signal Type Frequency Range Effective Range
GNSS 1550-1620 MHz 3-5km
Remote Control 860-930MHz; 2400-2500MHz; 5725-5850MHz 1-3km
Optional Frequencies 5150-5350MHz; 315MHz; 433MHz -
  • Omnidirectional and directional antenna options available
  • Additional jamming bands can be added upon demand
Monitoring Software Center
The information processing and command center serves as the core of the automatic UAV detection and defense system, controlling each subsystem through collection, presentation, analysis, statistics, and real-time system control.
  • Simple, intuitive display and control of one or more subsystems
  • Microsoft Windows based platform
  • User definable alert and exclusion zones
  • Automatic selection of background maps
  • Continuous record and playback facility for post-event analysis
Ultra-Precise 3km Detection Range Anti-drone System with 360 Degree Monitoring and RF Neutralization 0
