VIP Security Stationary Long Distance Anti-drone System with 3km Detection Range, 360 Degree Monitoring, and RF Neutralization

1
MOQ
Please consult a sales engineer
가격
VIP Security Stationary Long Distance Anti-drone System with 3km Detection Range, 360 Degree Monitoring, and RF Neutralization
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
생산능력: 10000 조각/년
감지 범위: 1~3km
사양: 감옥 전파 방해기
기원: 중국
운송 패키지: 알루미늄 합금 패키지
야외 사용하기: 반대로 Uav 시스템/카운터 드론 /Drone 방해기
강조하다:

3km detection range anti-drone system

,

360 degree monitoring drone defense system

,

RF neutralization counter UAV solution
기본 정보
원래 장소: 중국
브랜드 이름: UND
결제 및 배송 조건
배달 시간: 5~8일
지불 조건: 티/티
공급 능력: 100
제품 설명
VIP Security Stationary Long Distance Drone Jammer Anti-drone Systems
Our integrated anti-drone solution provides comprehensive drone defense protection through a unique and flexible approach to address the growing challenges posed by low-cost, highly capable drones.
Auto Counter UAVs Solution
Our system combines multiple detection and mitigation technologies to provide complete drone defense protection, including RF sensor passive detection, radar active surveillance, EO/IR tracking, and RF neutralization.
Radar Detection Subsystem
Drone detection radar provides real-time detection and monitoring with 360°/90° coverage and fast scan rates, capable of detecting drones at distances up to 1-3km with automatic detection and tracking of multiple targets.
Radar Surveillance Systems Features:
  • Microwave Pulse Doppler technology (C-band & S-band)
  • Detection of various moving objects including pedestrians, vehicles, and low-flying drones
  • 360°/90° real-time monitoring coverage
  • Available for short, medium, and long-range requirements
The radar detection system works in combination with RF detection or neutralization systems to provide comprehensive drone detection and countermeasures within protected areas.
RF Detection Subsystem
RF detection systems passively detect and identify RF transmissions related to drones, even in low-power or RF-noisy conditions, providing detection of both known and unidentified drones.
RF Drone Detection Capabilities:
  • 360° detection radius up to 3km diameter
  • Simultaneous detection of multiple drones during intrusion
  • Geolocation of both drone and drone controller
RF sensor detection combined with radar detection provides 3D location data including flight height and air speed. The system automatically triggers alerts upon drone detection.

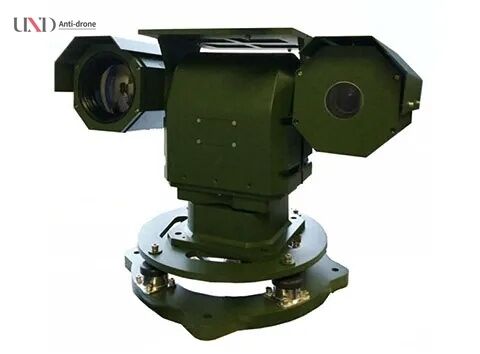

EO Visual and Thermal Camera Tracking
Our visual and thermal camera surveillance provides additional detection layers with imaging capabilities for day and night operation.
  • High sensitivity tracking within detection range
  • Excellent visual output for day cameras and thermal imaging
  • Visual intrusion alarm capabilities
RF Neutralization Subsystem
Designed to neutralize unauthorized drone flights by interfering with control and navigation signals.
Jamming Frequency Ranges:
  • GNSS: 1550-1620 MHz
  • Remote Control Signal: 860-930MHz; 2400-2500MHz; 5725-5850MHz
  • Optional Frequencies: 5150-5350MHz; 315MHz; 433MHz
  • Omnidirectional & directional antenna options available
  • Additional jamming bands can be added upon demand
  • Effective Range: Remote Control Signal 1-3km; GNSS Signal 3-5km
Monitoring Software Center
The information processing and command center for automatic UAV detection and defense systems, controlling all subsystems through data collection, presentation, analysis, and real-time system control.
Software Features:
  • Simple, intuitive display and control of multiple subsystems
  • Microsoft Windows based platform
  • User-definable alert and exclusion zones
  • Automatic selection of background maps
  • Continuous recording and playback for post-event analysis
