홈 /제품 소개/안티 드론 시스템/Anti-drone system with 3km detection range, 360 degree monitoring, and RF neutralization for comprehensive UAV countermeasure solutions

Anti-drone system with 3km detection range, 360 degree monitoring, and RF neutralization for comprehensive UAV countermeasure solutions

1
MOQ
Please consult a sales engineer
가격
Anti-drone system with 3km detection range, 360 degree monitoring, and RF neutralization for comprehensive UAV countermeasure solutions
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
사양: 감옥 전파 방해기
기원: 중국
감지 범위: 1~3km
안테나 유형 선택: 방향 또는 전방향 안테나 옵션
운송 패키지: 알루미늄 합금 패키지
생산능력: 10000 조각/년
강조하다:

3km detection range anti-drone system

,

360 degree monitoring UAV countermeasure solution

,

RF neutralization drone defense system
기본 정보
원래 장소: 중국
브랜드 이름: UND
결제 및 배송 조건
배달 시간: 5~8일
지불 조건: 티/티
공급 능력: 100
제품 설명

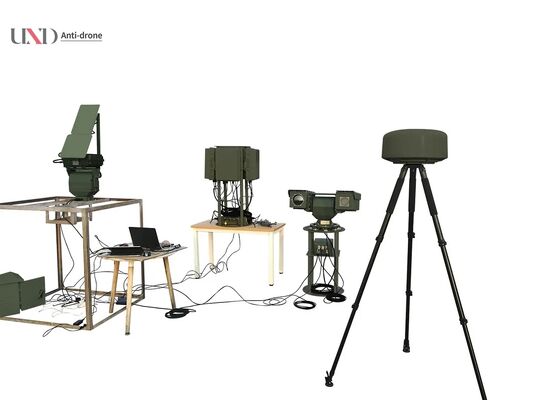

UAV Jamming and Detection Countermeasure Solutions
Our integrated anti-drone solution provides comprehensive drone defense protection through a unique and flexible approach. The system combines RF sensor passive detection, radar active surveillance, EO/IR tracking, and RF neutralization to protect against unauthorized drone intrusions.
Radar Detection Subsystem
Drone detection radar provides real-time detection and monitoring with 360°/90° coverage and fast scan rates, capable of detecting drones at distances up to 1-3km with automatic detection and tracking of multiple targets.
  • Microwave Pulse Doppler technology (C-band & S-band)
  • Detection of various moving objects including pedestrians, vehicles, and low-flying drones
  • 360°/90° real-time monitoring coverage
  • Available for short, medium, and long-range requirements
RF Detection Subsystem
RF detection system passively detects and identifies RF transmissions related to drones, even in low-power or noisy RF conditions, providing comprehensive drone identification capabilities.
  • Detection of any drone emitting RF signals (known and unidentified)
  • 360° detection radius up to 3km diameter
  • Simultaneous detection of multiple intruding drones
  • Geolocation of both drone and controller positions
EO Visual and Thermal Camera Tracking
Our visual and thermal camera surveillance provides additional verification layer with excellent imaging capabilities for day and night operations.
  • High sensitivity tracking within detection range
  • Excellent visual output for day camera and thermal imaging
  • Visual intrusion alarm capabilities
RF Neutralization Subsystem
Designed to neutralize unauthorized drone flights by interfering with control and navigation signals through targeted jamming technology.
Signal Type Frequency Range Effective Range
GNSS 1550-1620 MHz 3-5km
Remote Control 860-930MHz; 2400-2500MHz; 5725-5850MHz 1-3km
Optional Frequencies 5150-5350MHz; 315MHz; 433MHz -
Both omnidirectional and directional antennas available with additional jamming bands upon demand.
Monitoring Software Center
The information processing and command center provides comprehensive control over the automatic UAV detection and defense system through advanced monitoring and analysis capabilities.
  • Simple, intuitive display and control of multiple subsystems
  • Microsoft Windows based platform
  • User-definable alert and exclusion zones
  • Automatic selection of background maps
  • Continuous recording and playback for post-event analysis
Anti-drone system with 3km detection range, 360 degree monitoring, and RF neutralization for comprehensive UAV countermeasure solutions 0
