Highly Effective Jammer Counter Drone Anti-Drone Systems
Our integrated anti-drone solution provides comprehensive drone defense protection through a unique and flexible approach. The system combines RF sensor passive detection, radar active surveillance, EO/IR tracking, and RF neutralization to protect against unauthorized drone intrusions.
Auto Counter UAVs Solution
As low-cost, highly capable drones continue to evolve, they present new security challenges. Our counter-drone technology addresses these concerns with a comprehensive defense system capable of detecting, tracking, and neutralizing unauthorized drones.
Radar Detection Subsystem
Drone detection radar provides real-time detection and monitoring with 360°/90° coverage and fast scan rates. Capable of detecting drones at distances up to 1-3km, this system automatically detects and tracks multiple drones simultaneously.
- Microwave Pulse Doppler technology (C-band & S-band)
- Detection of various moving objects including pedestrians, vehicles, and low-flying drones
- 360°/90° real-time monitoring coverage
- Available for short, medium, and long-range requirements
RF Detection Subsystem
RF passive sensor detection system identifies RF transmissions related to drones, even in low-power or noisy RF conditions. This system can detect both known and unidentified drones that emit RF signals.
- 360° detection radius up to 3km diameter
- Simultaneous detection of multiple drones during intrusion
- Geolocation capability for both drone and controller

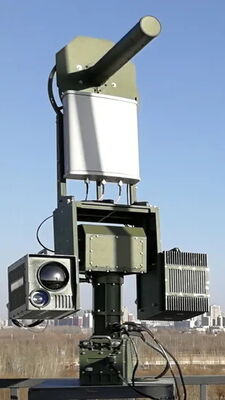

EO Visual and Thermal Camera Tracking
Our visual and thermal camera surveillance provides additional verification layer on top of RF/Radar detection, enabling target viewing day and night.
- High sensitivity tracking within detection range
- Excellent visual output for day camera and thermal imaging
- Visual intrusion alarm capabilities
RF Neutralization Subsystem
Designed to neutralize unauthorized drones by interfering with their control and navigation signals.
| Signal Type |
Frequency Range |
Range |
| GNSS |
1550-1620 MHz |
3-5km |
| Remote Control |
860-930MHz; 2400-2500MHz; 5725-5850MHz |
1-3km |
| Optional Frequencies |
5150-5350MHz; 315MHz; 433MHz |
- |
- Omnidirectional and directional antenna options available
- Additional jamming bands can be added upon demand
Monitoring Software Center
The information processing and command center for the automatic UAV detection and defense system, controlling all subsystems through collection, presentation, analysis, and real-time system control.
- Simple, intuitive display and control of multiple subsystems
- Microsoft Windows based platform
- User-definable alert and exclusion zones
- Automatic selection of background maps
- Continuous record and playback for post-event analysis
