Advanced Anti-drone System with 3km Detection Range, 360 Degree Monitoring, and RF Neutralization for Comprehensive Drone Defense

1
MOQ
Please consult a sales engineer
가격
Advanced Anti-drone System with 3km Detection Range, 360 Degree Monitoring, and RF Neutralization for Comprehensive Drone Defense
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
감지 범위: 1km/3km/4-6km
주요 하이라이트: 전파 방해기+탐지기
운송 패키지: 알루미늄 합금 패키지
생산능력: 10000 조각/년
방해 범위: 3km-5km
애플리케이션: 법 집행 장비
강조하다:

3km detection range anti-drone system

,

360 degree monitoring counter UAV solution

,

RF neutralization drone defense system
기본 정보
원래 장소: 중국
브랜드 이름: UND
결제 및 배송 조건
배달 시간: 5~8일
지불 조건: 티/티
공급 능력: 100
제품 설명
Counter Drone Solutions: Safeguard Your Skies with Anti-Drone Systems
Auto Counter UAVs Solution

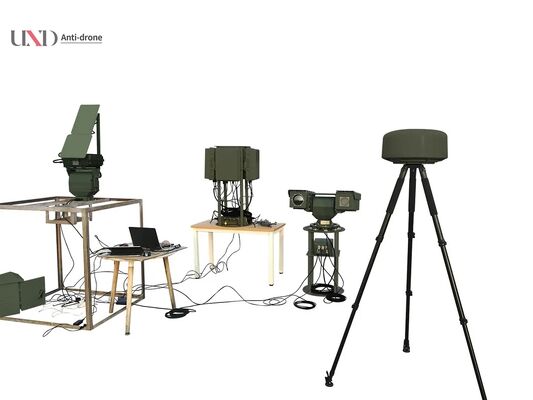

Our integrated anti-drone solution provides comprehensive drone defense protection through a unique and flexible approach. The system offers RF sensor passive detection, radar active surveillance detection, EO/IR tracking and location of multiple low-flying drones, and mitigation through RF neutralization.
Radar Detection Subsystem
Drone detection radar provides real-time detection and monitoring with 360°/90° coverage and fast scan rates, capable of detecting drones at distances up to 1-3km with automatic detection and tracking of multiple targets.
  • Microwave Pulse Doppler technology (C-band & S-band)
  • Detection of various moving objects including pedestrians, vehicles, and low-flying drones
  • 360°/90° real-time monitoring capability
  • Available for short, medium, and long-range requirements
Works in combination with RF detection or neutralization systems to provide comprehensive drone detection and counteraction within protected areas.
RF Detection Subsystem
RF detection system passively detects and identifies RF transmissions related to drones, even in low-power or RF-noisy conditions.
  • Detects any drone emitting RF signals (known and unidentified drones)
  • 360° detection radius up to 3km diameter
  • Simultaneous detection of multiple drones during intrusion
  • Geolocation capability for both drone and controller
When integrated with radar detection, provides 3D location data including flight height and air speed, triggering alerts upon drone detection.
EO Visual and Thermal Camera Tracking
Our visual and thermal camera surveillance provides target viewing capability day and night, serving as an additional layer to RF/Radar systems for imaging detected targets.
  • High sensitivity tracking within detection range
  • Excellent visual output for day camera and thermal imaging
  • Visual intrusion alarm capabilities

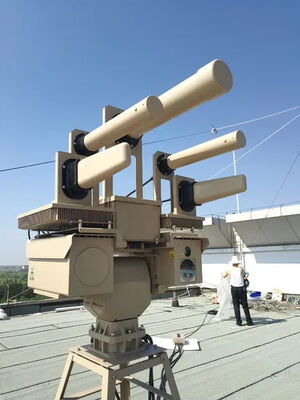

RF Neutralization Subsystem
Designed to neutralize unauthorized drones by interfering with their control and navigation signals.
  • GNSS: 1550-1620 MHz
  • Remote Control Signal: 860-930MHz; 2400-2500MHz; 5725-5850MHz
  • Optional Frequency: 5150-5350MHz; 315MHz; 433MHz
  • Omnidirectional and directional antenna options
  • Additional jamming bands available upon demand
  • Range: Remote Control Signal 1-3km; GNSS Signal 3-5km
Monitoring Software Center
The information processing and command center for automatic UAV detection and defense systems, controlling all subsystems through data collection, presentation, analysis, and real-time system control.
  • Simple, intuitive display and control of multiple subsystems
  • Microsoft Windows based platform
  • User-definable alert and exclusion zones
  • Automatic background map selection
  • Continuous recording and playback for post-event analysis
Advanced Anti-drone System with 3km Detection Range, 360 Degree Monitoring, and RF Neutralization for Comprehensive Drone Defense 0
