Anti-drone system with 3km detection range, 360 degree monitoring and RF neutralization for comprehensive drone defense

1
MOQ
Please consult a sales engineer
가격
Anti-drone system with 3km detection range, 360 degree monitoring and RF neutralization for comprehensive drone defense
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
생산능력: 10000 조각/년
기원: 중국
사양: 감옥 전파 방해기
감지 범위: 1~3km
운송 패키지: 알루미늄 합금 패키지
애플리케이션: 컨퍼런스 센터
강조하다:

3km detection range anti-drone system

,

360 degree monitoring drone defense system

,

RF neutralization counter UAV solution
기본 정보
원래 장소: 중국
브랜드 이름: UND
결제 및 배송 조건
배달 시간: 5~8일
지불 조건: 티/티
공급 능력: 100
제품 설명

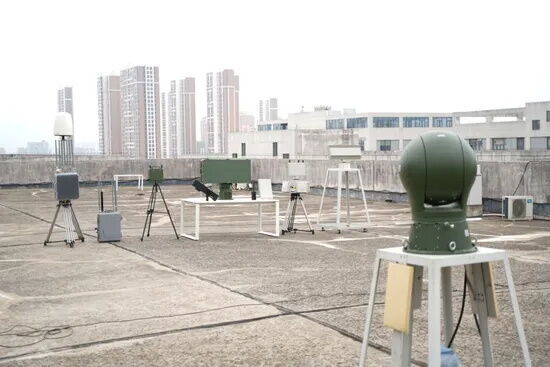

Radar Detection Multiple UAV Defense Systems - Powerful Unmanned Aerial Vehicle Anti-Drones Jamming System
Automatic Counter UAV Solution

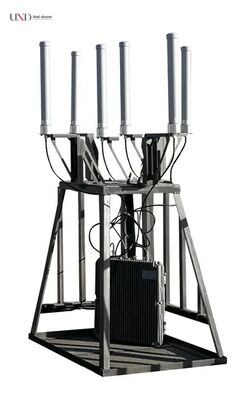

As low-cost, highly capable drones rapidly evolve, they present new security challenges. Our integrated anti-drone solution offers a unique and flexible approach to comprehensive drone defense protection. The system provides RF sensor passive detection, radar active surveillance detection, EO/IR tracking and location of multiple low-flying drones, along with mitigation through RF neutralization systems.
Radar Surveillance Systems
Radar systems emit electromagnetic waves and process echoes reflected by objects to locate them. Our drone detection radar enables detection beyond RF signals, providing front-end real-time detection and monitoring with 360°/90° coverage and fast scan rates. Capable of detecting drones at distances up to 1-3km with automatic detection and tracking of multiple drones.
  • Microwave Pulse Doppler technology based (C-band & S-band)
  • Detection of wide variety of moving objects including pedestrians, land vehicles, and low-flying drones
  • 360°/90° real-time monitoring capability
  • Available for short range, medium range, and long range requirements
RF Drone Detection Systems
Civil drones are typically operated via radio control signals with onboard data link transmitters. Our RF detection system passively detects and identifies RF transmissions related to drones, even with low-power signals or in RF noisy conditions.
  • RF sensor detection for any drone emitting RF signals (known and unidentified drones)
  • 360° detection radius up to 3 kilometer diameter
  • Simultaneous detection of multiple drones during intrusion
  • Geolocation capability for both drone and drone controller
RF sensor detection systems work together with radar detection systems to provide 3D location data, flight height, and air speed measurements. The system automatically triggers alerts upon drone detection.

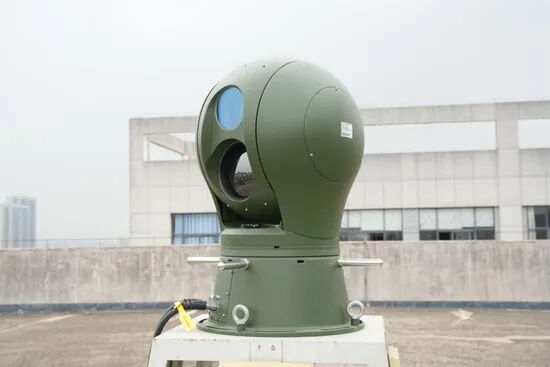

EO Visual and Thermal Camera Tracking
Our visual and thermal camera surveillance provides target viewing capability day and night. This serves as an additional layer on top of RF/Radar systems to provide imaging of detected targets.
  • High sensitivity tracking capability within detection range
  • Excellent visual output for day cameras and thermal imaging cameras
  • Visual intrusion alarm system
Command and Control Center
The information processing and command center serves as the core of the automatic UAV detection and defense system. It controls each subsystem and equipment through collection, presentation, analysis, statistics, and query of various information, along with real-time system control.
  • Simple, intuitive display and control of one or more subsystems
  • Microsoft Windows based platform
  • User definable alert and exclusion zones
  • Automatic selection of background maps
  • Continuous record and playback facility for post-event analysis
