700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules

1
MOQ
Please consult a sales engineer
Price
700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules
Features Gallery Product Description Chat Now
Features
Specifications
Type: RF Module
Output Power: 50W
Frequency: 720-1020 MHz
Dimension: 117*40*18 Mm
Weight: 230g
Highlight:

50w gan module

,

50w jammer module
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: UND-AM50
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description

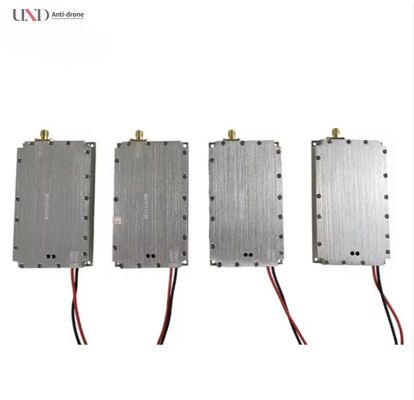

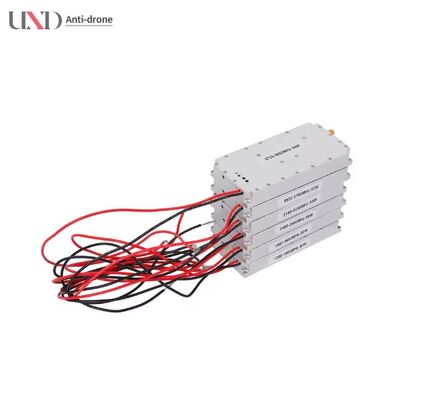

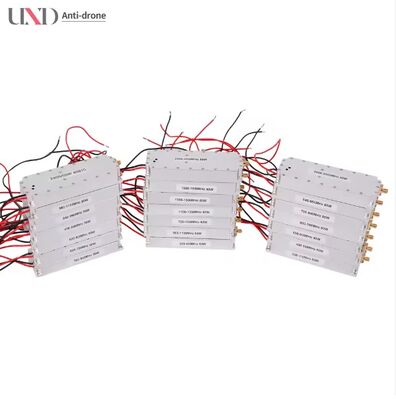

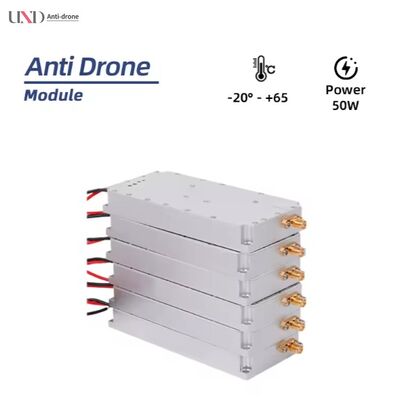

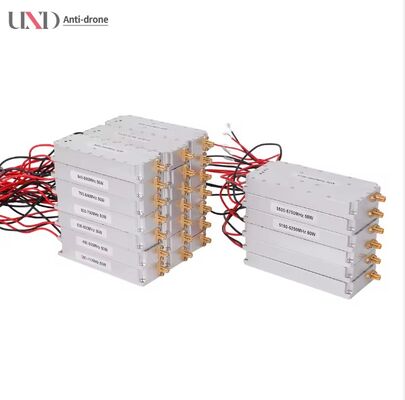

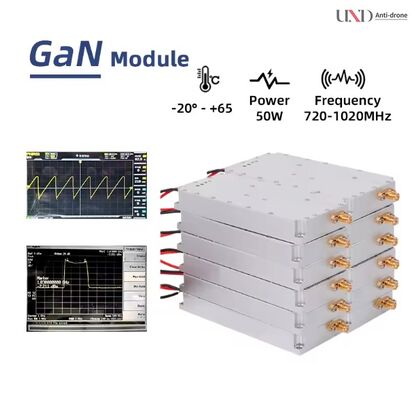

700-1000MHz 50W Broadband Power RF GaN Anti Drone Module Anti Fpv Signal Module

700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 0700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 2


Item
Spec.
Remarks
Frequency Range
720-1020 MHz
Bandwidth Range±10MHz
Working Voltage
28V
24-30V
Working current
≤ 3.5-4.2A
output 50W
Analog sweeping speed
Customized 50-300KHz
Standard 120 KHz
8μ/s
Output Power (Max)
47±1 dBm
50W
Gain (Max)
47±1 dB

Ripple in Band
≤ 3 dB
Peak
Bandwidth adjustment
Yes
By screw
Center adjustment
Yes
By screw
Enable control
Customize
24-28V
Input power (Max)
≤ +10dBm
Optional (If signal source from Subscriber)
Input Signal Source
Built-in high-speed noise modulation signal source
Optional
(customize VCO, DDS or SDR)
Output VSWR
≤1.5
Inside circulator, VSWR protect
High Low
Temperature test
Working Temperature
-20~+65℃
Working properly
Gain Stability
±1 dB
at
-20℃~+65℃
Power stability
±1 dB
at
-20℃~+65℃
Power supply Port
Positive and negative lines
24-28V; GND;
(optional: Enable control wire)
Shell Material
Aluminum with natural color oxide sand blasting

Vibration Need
Meet the load need of moving vehicle

RF output connector
SMA-Female

LED indicator light
Power ON/OFF

Dimension
117*40*18 mm

Installation Dimension
111.8*34.8*13 mm

Screw Size
M3.2

Weight
230g


700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 4

700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 6

700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 8700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 10




ABOUT US
700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 12700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 14700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 16700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 18700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 20700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 22700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 24700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 26



Certification



700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 28700-1000MHz 50W Broadband Power RF GaN Module Anti Drone and FPV Signal Module Wireless & RF Modules 30



1. How long is the production lead time?
The production lead time varies depending on the product and order quantity. Generally, it takes around 7-15 days after receiving the deposit. Please contact us for more accurate information based on your order.
2. Can I customize the product?
Yes,Power and frequency band can be customized according to your needs
Please contact us with your specific requirements.
3. What is your payment term?
We accept various payment methods, including T/T (Telegraphic Transfer), PayPal, and Alibaba Trade Assurance.
Payment terms are typically 30% deposit and 70% balance before shipment.
4. How do you ensure product quality?
We have a strict quality control process, including raw material inspection, in-production checks, and final quality inspections before shipment.
5. What shipping methods are available?
We offer multiple shipping options, including sea freight, air freight, and express courier (DHL, FedEx, UPS, etc.). We will
recommend the most suitable method based on your order quantity and destination.
6. Can I track my order?
Yes, we will provide you with a tracking number once your order is shipped.
You can use this number to track your order through the carrier's website.
7. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including technical assistance and warranty services.
Please contact our customerservice team for any issues related to your order.
