Features

Specifications

Name: Convoy Bomb Jammer

Power Supply: AC110-240V

Output Power: 915W

Weight: 75Kg

Humidity: 5%-95%

Working Temperature: -20°C To +55°C

Jamming Radius: 50-800M Depending On Environment Signal Strength

Highlight:

Vehicle Mounted Convoy Bomb Jammer

Convoy Bomb Jammer 915W

Military Signal Jammer 25MHz

Basic Infomation

Place of Origin: China

Brand Name: UND

Payment & Shipping Terms

Delivery Time: 5-8 days

Payment Terms: T/T

Supply Ability: 100

Gallery

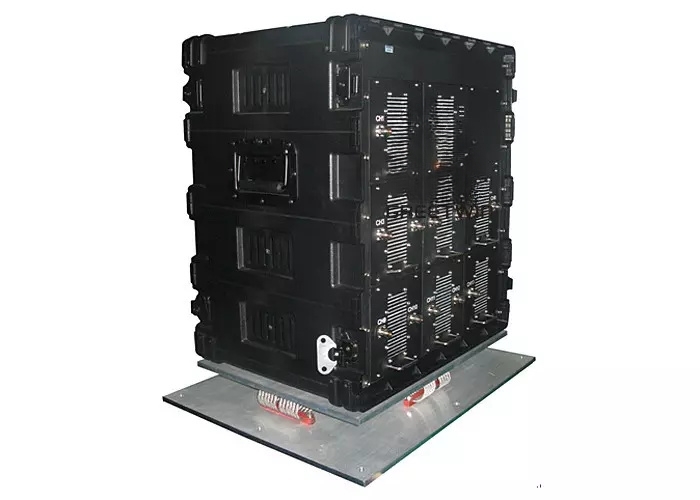

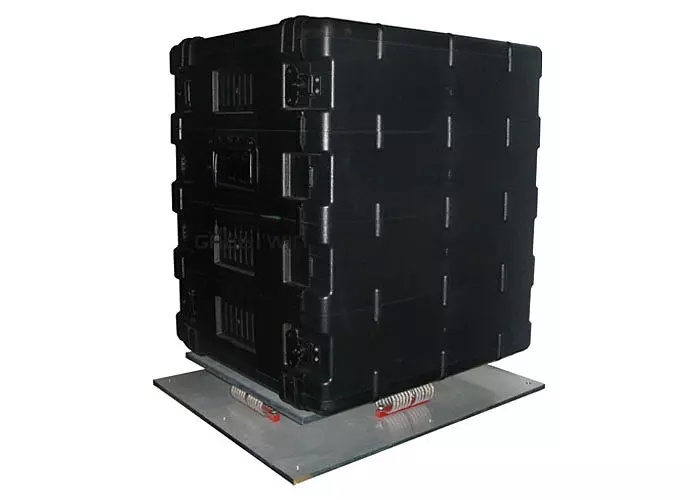

Vehicle Mounted Convoy Bomb Jammer 915W Military Signal Jammer 25MHz - 2500MHz

Product Description

Military Approved Vehicle Mounted Jammer wiRCIED Jammer Military th 360° Protection and Ultra-Broadband 25-2500MHz for Convoy Bomb Jamming

Bomb Jammer Description

The Vehicle Mounted Jammer's Operating System can be fully controlled from the driver's seat to ensure optimal user experience. Our vehicle mounted Counter-IED Jammers provide 360° protection and are capable of protecting other vehicles in the convoy.

These convoy jammers are specifically designed for protecting VIPs (Very Important Persons). RF jamming systems become essential during high-security events and public appearances. For example, when the Chinese President drives through "Window of the World" in Shenzhen, cellular phones of mobile subscribers lose connection with local networks due to these security measures.

Given the deadly nature of remote-controlled weapons, Vehicle Mounted Jammers and VIP Convoy Jammers have become a necessary security requirement in today's threat environment.

Bomb Jammer Features

Ultra-broadband frequency coverage: 25-2500MHz
All frequency bands jammed continuously and simultaneously
Shockproof case design for easy mobility
Approved by Military and International Government agencies
Optional integrated back-up battery system for continuous silent operation and fast start
Integrated independent "smart active" cooling system
System management via remote control unit installed covertly in driver's console
Individual on/off switches for each frequency band
Special RF protection shielding design for passenger and VIP safety
Previously supplied to Olympic Events and Universiade
Designed to protect military, VIP teams, and critical locations from roadside RCIED attacks

The GREETWIN Jammer features ultra-high RF transmission power, resulting in extensive coverage distance. Its jamming system covers RF communication frequencies from 20MHz to 2500MHz, which are commonly used by terrorists to detonate RCIED bombs continuously and simultaneously.

Bomb Jammer Specifications

RF Characteristics	Specifications
Output Power	915 Watts
Internal Modulation	FM Hopping Frequency
Signal Source	VCO Synthesized
Power Supply	AC110-240V, 24V or 48V DC
Modules Per Unit	11
Control	ON/OFF with Switch
Monitoring	Adjusted output power by DIP Switch
Antenna	External - Omni-directional for 360°
Power Amplifier Protectors	Full VSWR protector
Operating hours	Unlimited

Channel	Frequency Range	Target Devices	Output Power
CH1	20~108MHz	Wireless Toys, FM Radio	100W
CH2	135~174MHz	Walkie-talkie (VHF)	100W
CH3	300-400MHz	Remote Control, Drone	100W
CH4	400~470MHz	Walkie-talkie (UHF), car alarm	100W
CH5	851~894 MHz	Cellular CDMA	100W
CH6	925-960MHz	Cellular GSM, E-GSM	100W
CH7	1805~1920MHz	Cellular DCS, PCS	100W
CH8	2110~2170MHz	Cellular WCDMA	100W
CH9	2400-2485MHz	WiFi, Bluetooth, Drone	50W
CH10	1570-1580MHz	GPS L1, Drone	50W
CH11	5725-5850MHz	WIFI, WIMAX, Drone	15W

Additional Specifications:
Power Supply: AC110-240V
Output Power: 915W
Jamming Radius: 50-800M depending on environment signal strength
Power Consumption: 3300W
Weight: 75Kg
External Panel Antennas Size (L*H*W): 640*540*550mm
Humidity: 5%-95%
Working Temperature: -20°C to +55°C

Bomb Jammer Applications

• Special Military Units
• Special Police Units
• VIP Protection
• Bomb Disposal
• Convoy Protection

Note: All Bomb Jammers, IED Jammers, RF Signal Jammers and RCIED Jammers, including cell phone jammers and mobile phone jamming devices are sold for governmental, law enforcement and military users only.
