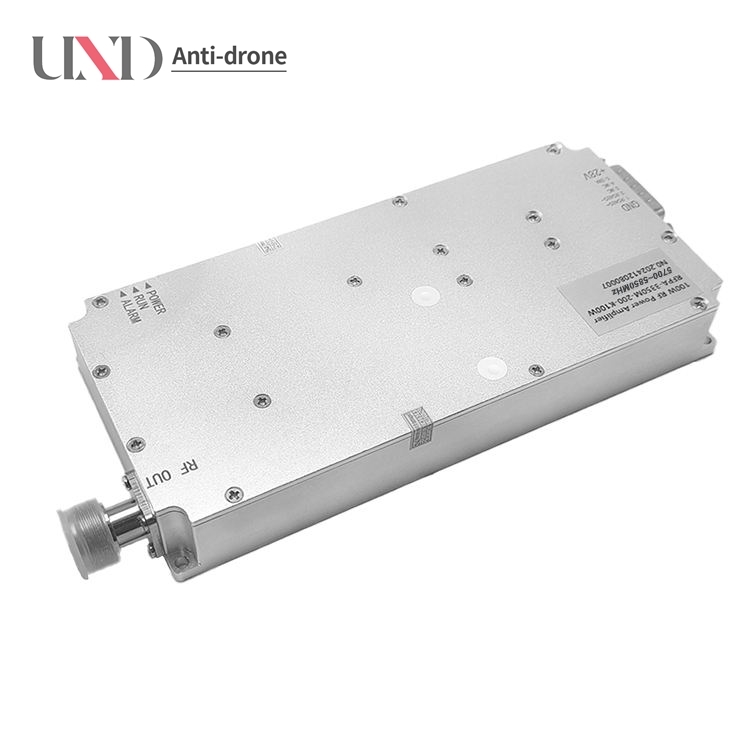

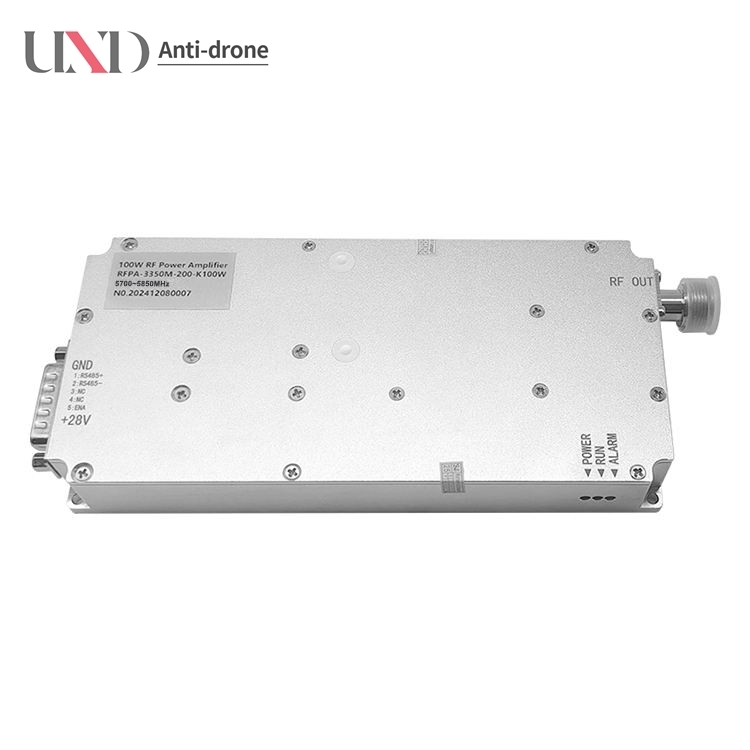

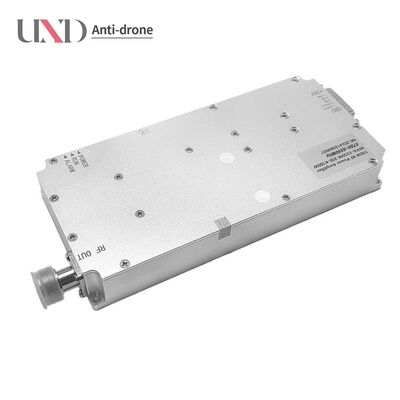

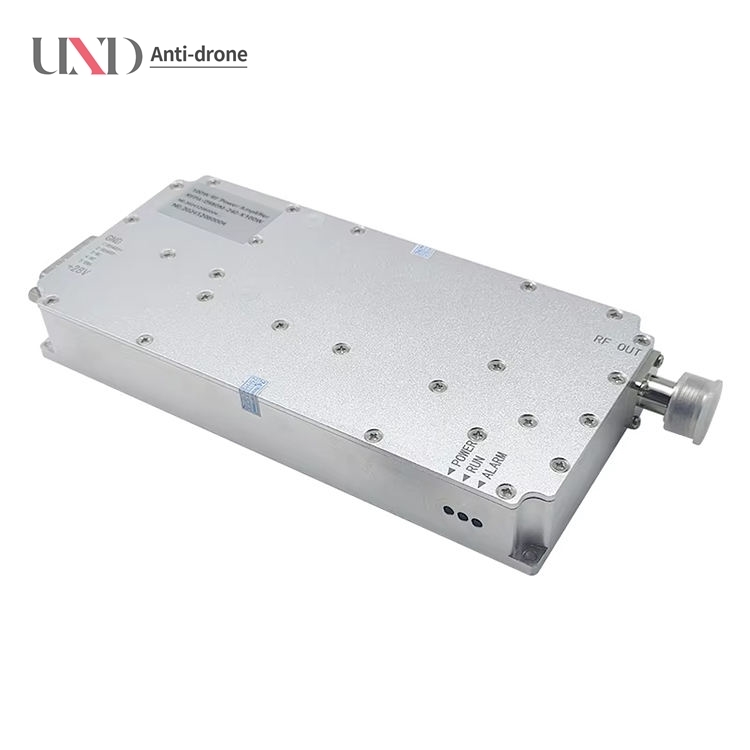

100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable

1
MOQ
Please consult a sales engineer
Price
100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable
Features Gallery Product Description Chat Now
Features
Specifications
Application: Anti-drone
Feature: Durable
Output Power: 100 W
Frequency: 5700-5850 MHZ
Working Voltage: 8A~10A
Installation Dimension: 170*79.5*24mm
Highlight:

100w anti drone module

,

100w drone jammer module

,

5850mhz anti drone module
Basic Infomation
Place of Origin: China
Brand Name: UND
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description

 100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 0
Specifications
Item
Indicator requirements
remarks
Frequency (Mhz)
5700~5850MHz

Saturated Output Power
50 ± 1dBm

Large Signal Gain
55±1dB

Gain Flatness
≤2.0dB

Gain Stability
± 1.5dB
at -25℃~+55℃
Power stability
± 1.5dB
at -25℃~+55℃
DC Input Voltage
DC28±1.0V

Current Consumption
11.0A typ;
13.0A max
@ Pout=100W CW,
50 ohms load

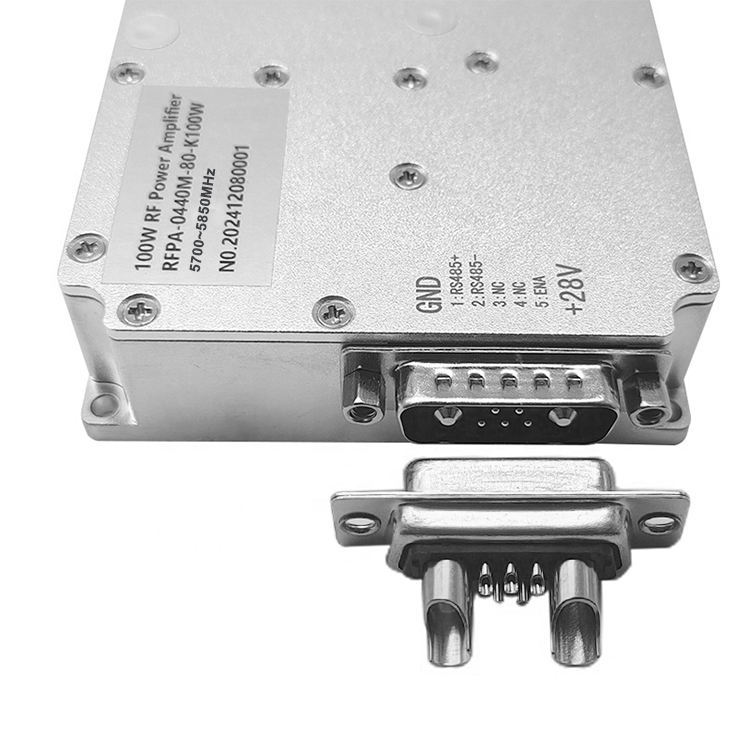

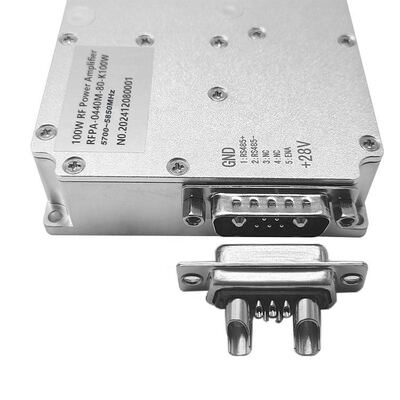

Monitoring interface
7W2 Connector:
A1: GND; A2: +28V;
PIN1: RS485A; PIN2: RS485B; PIN3: GND; PIN4: NC;
PIN5: Power amplifier enable switch,High level +5V off, low level 0V on.
Monitoring type
RS485,Baud rate 19200
Monitoring function
1. Power amplifier query:module status (including power amplifier status, over temperature alarm, standing wave ratio alarm, power amplifier fault alarm);
2. Power amplifier enable switch: Turn on or off the power amplifier.
3. Over temperature alarm: The temperature threshold is +85℃. If the detected temperature exceeds +85℃, an alarm will be triggered, and the power amplifier will be turned off. When it reaches +65℃, the power amplifier will be turned on;
4. Power amplifier standing wave alarm:When the power amplifier standing wave detection is greater than 4.0, the power amplifier starts protection;
5. Overvoltage alarm of power amplifier:When the power amplifier voltage exceeds 32V, the power amplifier will automatically shut down;
6. Power amplifier undervoltage alarm: When the power amplifier voltage is below 24V, the power amplifier will automatically shut down
RF output connector
SMA-KFD
Dimension
170×79.5×24mm
Installation Dimension
164×73.5×24mm
Screw Size
4-Ø3.2mm
100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 2
100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 4100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 6100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 8

ABOUT US
100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 10100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 12100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 14100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 16100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 18100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 20100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 22100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 24



Certification



100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 26100W 5700-5850MHz UAV Jammer Wideband RF Power Amplifier Linear Signal Amplifier Durable 28



1. How long is the production lead time?
The production lead time varies depending on the product and order quantity. Generally, it takes around 7-15 days after receiving the deposit. Please contact us for more accurate information based on your order.
2. Can I customize the product?
Yes,Power and frequency band can be customized according to your needs
Please contact us with your specific requirements.
3. What is your payment term?
We accept various payment methods, including T/T (Telegraphic Transfer), PayPal, and Alibaba Trade Assurance.
Payment terms are typically 30% deposit and 70% balance before shipment.
4. How do you ensure product quality?
We have a strict quality control process, including raw material inspection, in-production checks, and final quality inspections before shipment.
5. What shipping methods are available?
We offer multiple shipping options, including sea freight, air freight, and express courier (DHL, FedEx, UPS, etc.). We will
recommend the most suitable method based on your order quantity and destination.
6. Can I track my order?
Yes, we will provide you with a tracking number once your order is shipped.
You can use this number to track your order through the carrier's website.
7. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including technical assistance and warranty services.
Please contact our customerservice team for any issues related to your order.
