Features Gallery Product Description Chat Now

Features

Specifications

Application: Safety Protection

Feature: Durable

Type: Signal Detector

Product Name: Uav Drone Detector

Frequency Customization: 100MHz~6GHz

Detection Range: 1-10km

DF Refresh Rate: 10-30 Times/minute

Detection Mode: 360°Passive Detection

Highlight:

10km drone detection device

10km drone detection system

outdoor drone detection device

Basic Infomation

Place of Origin: China

Brand Name: UND

Payment & Shipping Terms

Delivery Time: 5-8 days

Payment Terms: T/T

Supply Ability: 100

Gallery

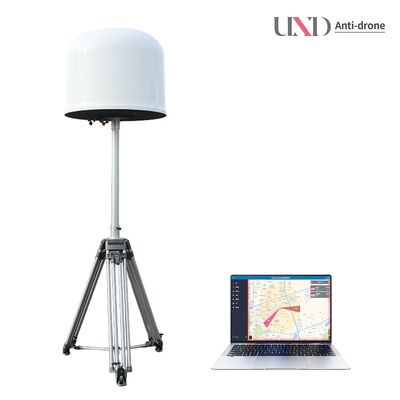

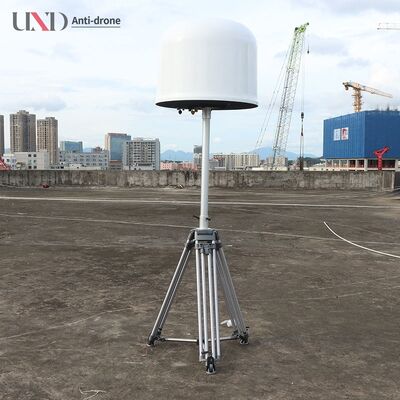

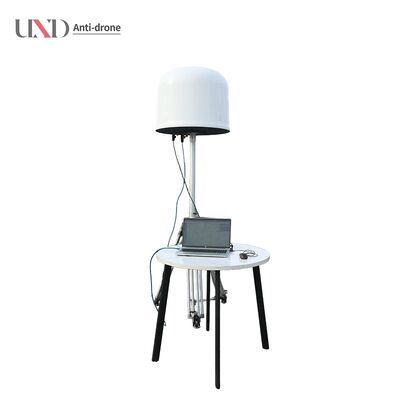

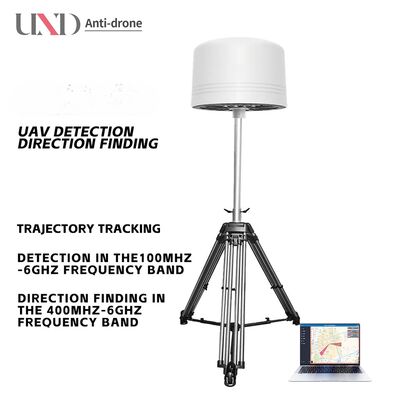

1-10KM TDOA+AOA Outdoor Range Fixed Drone Detector 100MHz-6GHz Band DJI Drone Detection System 360Passive Detection Durable

Product Description

Number	Project	Parameter	Remarks
1	Detection frequency band	100MHz~6GHz
2	Detection distance	1~10km
3	Number of detection targets	≥20 sorties	meanwhile
4	Detection mode	360°Passive detection
5	Direction finding frequency band	2GHz~6GHz
6	Direction finding distance	≥3km
7	Number of direction finding targets	Not less than 3 sorties	meanwhile
8	Directional accuracy	~10°
9	DF refresh rate	10-30 times/minute
10	positioning accuracy	≤20m
11	Number of positioning trajectories	≥5 sorties	meanwhile
12	Scan spectrum range	100MHz~6GHz
13	Detecting and identifying drone models	Common brands of drones such as DJI, Autel, Fimi, Dahua, and Yuneec, as well as most domestically produced models such as walkthrough and WiFi machines on the market

1.Product Overview

X1D-P is a drone detector with drone intrusion alarm, identification, direction-finding and networking location capabilities. One signal device detects and finds drone direction. Multiple XlDs network to locate drones via TDOA (time difference of arrival) algorithm. It emits no signal which makes it interfer-ence-free and suitable for urban environ-ment.

2.Product features
1)Drone positioning:Multiple XlDs network to locate drone.
2)Direction finding: A single station can provide direction finding for the target drone, and the electronic map presents
real-time drone azimuth information. It can simultaneously detect at least 3 drones.
3)Spectral scanning: 100MHz~6GHz spectral scanning, supporting display of spectrograms and waterfall plots.
4)Abnormal signal identification: The system can identify abnormal signals based on the spectrum scanning results and display them
in the list to assist security personnel in handling abnormal signals.
5)Intrusion alarm: When the device detects a drone intrusion, it will sound or light an alarm.
7)Scale networking: Support grid based deployment of multiple devices to meet large-scale coverage.
