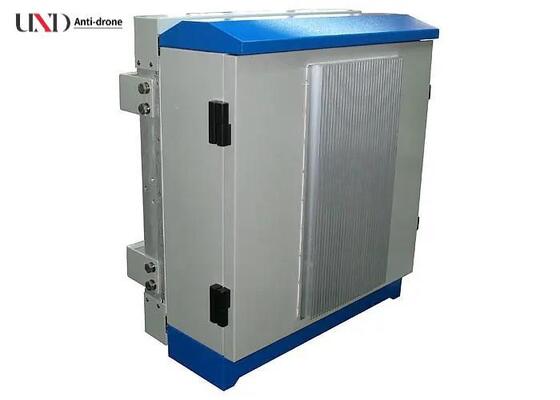

600W Output Power IP65 Waterproof Signal Jammer with Remote Monitoring for Prisons and Military

1
MOQ
Please consult a sales engineer
Price
600W Output Power IP65 Waterproof Signal Jammer with Remote Monitoring for Prisons and Military
Features Gallery Product Description Chat Now
Features
Specifications
Power Supply: AC220V Or DC48V
Weight: 45Kg
Humidity: 30%-95%
Operating Temperature: -20°C To +55°C
Dimensions: 592×395×265mm
Jamming Range: 50-600m (depending On Mobile Network Signal Density)
Highlight:

600W Output Power Signal Jammer

,

IP65 Waterproof Prison Jammer

,

Remote Monitoring GSM Scrambler
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-J300JW
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
600W Cell Phone Prison Jammer with GSM Scrambler Software Platform
High-power outdoor waterproof cell phone signal jammer implementing advanced RF jamming technology to prevent confidential information leaks and unauthorized mobile device usage.
U-J300JW Prison Jammer Overview
Modular design with independent power supply for each frequency band, enabling easy frequency additions and maintenance. Provides comprehensive jamming of cell phones, Wi-Fi, and Bluetooth devices.
Monitoring Software Platform
  • Remote monitoring and control of all jammers via internet connection
  • Real-time alarm information and status feedback to users
  • Centralized management from office location reduces maintenance workload
  • Real-time display of output power, operating temperature, and alarm information
  • Channel-specific monitoring including over-temperature, under-power, VSWR, and door open alarms
Key Features
  • 600W output power with six independent jamming modules
  • Customizable frequency coverage including AM/FM Radio, LoJack, VHF, UHF, Walkie-talkie, Wireless Toys, Remote Control, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, UMTS, 3G, 4G, LTE bands, GPS systems, WIFI, Bluetooth, Spy cameras, WIMAX, UAV, and Drone frequencies
Technical Advantages
  • VSWR protection prevents system damage during antenna disconnection
  • IP65 waterproof rating with efficient cooling system for continuous operation in hot climates
  • Independent power supply for each frequency band
  • Individual channel control with manual power adjustment
  • Optional remote monitoring via IP network with RJ45 interface
Technical Specifications
Output Interface Description Shield Band Frequency RF Output Power
CH1 CDMA800 851-894 MHz 50dBm
CH2 WCDMA 3G 2110-2170 MHz 50dBm
CH3 GSM900 925-960 MHz 50dBm
CH4 GSM1800 / PCS 1900 1805-1880 MHz / 1930-1990 MHz 50dBm
CH5 WIFI, 2.4G 2400-2485 MHz 50dBm
CH6 LTE 2600 (Optional) 2620-2690 MHz 50dBm
Additional Specifications:
Power Supply: AC220V or DC48V
Total Output Power: 600W
Power Consumption: 1800W
Weight: 45Kg
Dimensions: 592*395*265mm
Humidity: 30%-95%
Operating Temperature: -20°C to +55°C
Cooling System: Systematic Smart Cooling
System Protection: VSWR, Over-voltage Circuit, Shock, Temperature
Jamming Source: Frequency Scan Technology
Antenna Type: High Gain Directional Panel Antennas or Omni Antenna
Jamming Range: 50-600m (depending on mobile network signal density)
Important Notice: All bomb jammers, IED jammers, RF signal jammers and RCIED jammers, including cell phone jammers and mobile phone jamming devices are sold for governmental, law enforcement and military users only.
Applications
Prisons, military facilities, government buildings, oil and gas storage facilities, churches, theatres, libraries, museums, courts, border patrol and drug enforcement operations, customs facilities, mosques, and other secure locations.
