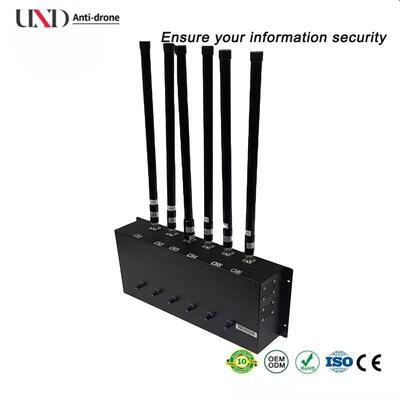

Adjustable Mobile Phone Signal Jammer - 80W Signal Scrambler for 2G, 3G, LTE, and 4G Networks
This high-performance 80W mobile phone signal jammer effectively blocks 2G, 3G, LTE, and 4G cellular signals across multiple frequency bands simultaneously, providing comprehensive signal disruption for various security and privacy applications.
Product Overview
The GW-J80A model features enhanced 40dBm output power and supports 8-band simultaneous jamming with an effective range of 30-100 meters. Designed to address cellular communication challenges in sensitive environments.
Key Applications
Ideal for executive offices, board meetings, conferences, seminars, libraries, cinemas, religious venues, public transport, concert halls, restaurants, educational institutions, prisons, and other security-sensitive locations.
Problem Solutions
Effectively prevents disruptive mobile phone activities including loud incoming call rings, unauthorized telephone conversations, confidential information leaks, mobile-triggered bomb explosions, and electromagnetic interference with sensitive equipment in gas stations, chemical warehouses, and medical facilities.
Technical Features
- Ultra high frequency broadband jamming technology
- Adjustable output power control
- High effective channel power with extended interference radius
- Individual channel switches for precise control
- Stable performance and cost-effective operation
- Eight channels with customizable frequency ranges for global cellular standards
Supported Frequency Standards
LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, 433MHz, 315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, UMTS, 3G, 4G, LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1, GPS L2, Galileo, Compass, Glonass, WiFi, Bluetooth, Spy camera, WIMAX, UAV, Drone, 5.8G, and more.
Technical Specifications
| Output Port |
Frequency |
Average Output Power (±1dBm) |
| GSM |
925-960MHz |
40dBm |
| DCS |
1805-1880MHz |
40dBm |
| GPS L1 |
1570-1580MHz |
40dBm |
| WiFi |
2400-2500MHz |
39dBm |
| 3G |
2110-2170MHz |
40dBm |
| LTE800 |
791-821MHz |
40dBm |
| LTE2600 |
2620-2690MHz |
39dBm |
| Lojack |
173MHz |
40dBm |
General Specifications:
Power Supply: AC110-240V, DC28V
Energy Consumption: 240W
Output Power: 80W
Dimensions: 380(L) * 300(W) * 90(H) mm
Weight: 7kg
Operating Temperature: -25°C to +55°C
Humidity: 5% - 95%
Jamming Range: 10-80m radius (dependent on local signal intensity)
Antennas: 8 external directional panel antennas
