Mobile Signal Amplifier - Indoor Cell Phone Signal Booster
New powerful cellphone WiFi signal jammer with 8 antennas for indoor use, featuring adjustable 46W output power and jamming capability up to 60 meters.
Technical Specifications
| Channel |
Output Port |
Frequency Range |
Average Output Power |
| 1 |
CDMA |
851-894MHz |
39dBm/8W |
| 2 |
GSM |
925-960MHz |
39dBm/8W |
| 3 |
DCS or PCS |
1805-1880 or 1920-1990MHz |
38dBm/6W |
| 4 |
3G |
2110-2170MHz |
38dBm/6W |
| 5 |
4G1 LTE |
700-803 or 790-862MHz |
37dBm/5W |
| 6 |
4G LTE1700 |
1700-1800MHz |
37dBm/5W |
| 7 |
4G Wimax |
2500-2690 or 2300-2400MHz |
36dBm/4W |
| 8 |
WIFI2.4G |
2400-2500MHz |
36dBm/4W |
Power Supply: AC adapter 50 to 60Hz, (110-240V AC-24V DC)
Dimensions: 388 x 145 x 55mm (excluding antenna)
Packing Size: 47 x 27 x 13cm
Net Weight: 3kg
Gross Weight: 3.5kg
Total Power: 46W
Shielding Radius: 20-60 meters at -75dBm
Warranty: One year from delivery date
Product Overview

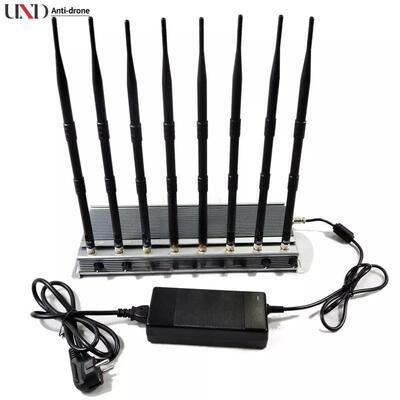

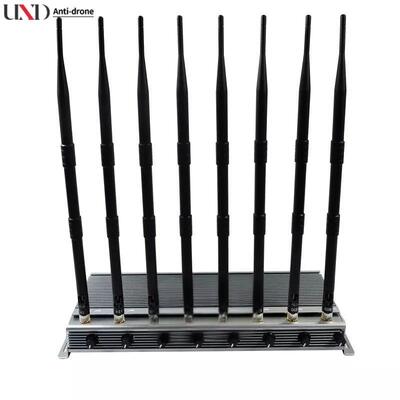

This advanced cellphone WiFi signal jammer features 8 antennas that deliver powerful jamming capabilities. It effectively blocks all 3G and 4G mobile phone signals, as well as WiFi and CDMA450M signals. With adjustable 46-watt high power output, the device provides jamming coverage up to 60 meters, depending on local signal strength. The built-in triple cooling fan system ensures continuous operation, making this an ideal solution for reliable signal blocking at an affordable cost.
Key Advantages
- 8-channel design with 4-8 watt output per band
- High output power totaling 46W, jamming up to 60 meters
- External high gain 2.5db omnidirectional antennas covering all TX frequencies

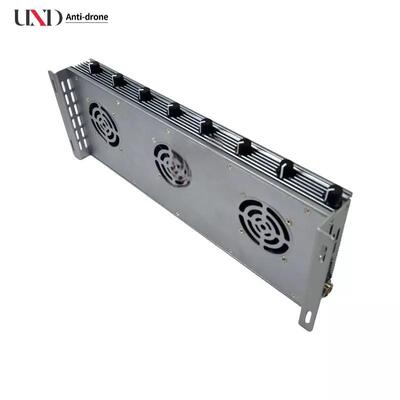

- Built-in triple cooling fan system for non-stop operation
- Individual band adjustment capability without affecting other bands
- Independent module design for easy maintenance and replacement
OEM Customization Services
Custom silkscreen OEM services available to meet your specific branding requirements.
Applications
Ideal for meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, buses, and other locations requiring silence, confidentiality, and information security.
Note: For sensitive locations such as hospitals and gas stations, please conduct field testing first to ensure no interference with normal equipment operation.
