Home /Products/Signal Jammer/16 Antennas Signal Jammer with 120MHz to 2700MHz Frequency Coverage and 38W Total Output Power

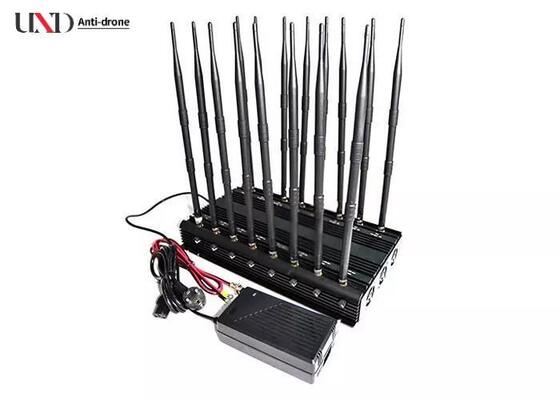

16 Antennas Signal Jammer with 120MHz to 2700MHz Frequency Coverage and 38W Total Output Power

1
MOQ
Please consult a sales engineer
Price
16 Antennas Signal Jammer with 120MHz to 2700MHz Frequency Coverage and 38W Total Output Power
Features Gallery Product Description Chat Now
Features
Specifications
Type: Gps Tracker,Frequency Control,UAV Jammer
Warranty: 36 Months,2 Years,12 Months,3 Years,1 Years
Backup Battery: 500mAh,lithium Battery,DC7.4V/850MA
Color: Black,White
Operating Temperature: -20° To 65° C
Weight: 70g,90g,17kg
Highlight:

16 Antennas Signal Jammer

,

120MHz to 2700MHz RF Jammer

,

38W Total Output Power Mobile Phone Signal Blocker
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-JA16
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
VHF UHF Phone Signal Scrambler 3G 2100 LTE 2600 MHz Full Bands 16 Antennas
16 Antennas 3G 2100 LTE 2600MHz Mobile Phone Signal Jammer with VHF UHF
Block all signals from 120MHz to 2700MHz with this powerful 16-antenna full bands jammer. Ideal for VIP protection in vehicles to prevent road bombs and secure oil/gas stations.
Product Overview
This advanced signal jammer utilizes foreign technology to effectively block GSM, CDMA, DCS, PHS, TD-SCADMA, WCADMA, CDMA2000, LTE, cell phone signals, WiFi, stealth headphones, walkie-talkies, bone conduction headphones, and various conduction tools including erasers, rulers, watches, and glasses cameras.
The device features a 5-40 meter jamming radius (depending on signal strength and location) and includes an efficient cooling system with heat sink and internal fan for 24/7 continuous operation.
Supports use while battery charging and can be powered by car cigarette charger (DC12V only). Custom frequency band configurations available upon request.
Key Features
  • Total output power: 38W
  • 24-hour continuous operation capability
  • Stable performance and cost-effective solution
  • Four cooling fans for optimal thermal management
  • Adjustable output power for each frequency band
  • Vehicle compatibility with car adapter design
  • Sixteen channels covering multiple frequency ranges
  • Customizable for various cellular standards worldwide
Applications
  • Meeting rooms, conference rooms, and training centers
  • Museums, galleries, theatres, and concert halls
  • Churches, temples, and restaurants
  • Classrooms, factories, and banks
  • Trains, buses, and vehicles
  • Note: For hospitals and gas stations, conduct field testing first to ensure no interference with equipment
Important Notices
  • Do not power on before connecting all antennas
  • Never remove antennas during operation
  • Install in well-ventilated areas with clear space for optimal performance
  • Take waterproofing precautions for outdoor use
  • Keep antennas vertical to the ground
  • For vehicle use: ensure DC12V power supply only
Technical Specifications - Type B
Output Port Frequency Average Output Power Watt
1 120-200 MHz 35dBm 3W
2 200-300MHz 35dBm 3W
3 300-400MHz 35dBm 3W
4 400-500MHz 35dBm 3W
5 700-800MHz 35dBm 3W
6 800-900MHz 35dBm 3W
7 900-1000MHz 35dBm 3W
8 1000-1200MHz 33dBm 2W
9 1200-1390MHz 33dBm 2W
10 1500-1600MHz 33dBm 2W
11 1600-1800MHz 33dBm 2W
12 1800-2000MHz 33dBm 2W
13 2100-2199MHz 32dBm 1.5W
14 2200-2400MHz 32dBm 1.5W
15 2400-2500MHz 32dBm 1.5W
16 2500-2700MHz 32dBm 1.5W
Optional Frequencies: 4G 2300 / WiFi 5.8G/3.6G/ UHF 200-400MHz / Wireless camera 1000-1390MHz, etc.
Power Supply: AC adapter (AC220V-DC12V)
Shielding Radius: 5-50 meters @ -75dBm (dependent on signal strength in given area). VHF/UHF signal shielding radius may be lesser than cell phone signals.
Dimensions: 238mm (width) * 60mm (height) * 395mm (length)
Net Weight: 7.0kg
16 Antennas Signal Jammer with 120MHz to 2700MHz Frequency Coverage and 38W Total Output Power 0
Tag:

Anti Drone Jammer

RF Signal Jammer

Drone Frequency Blocker
