250W High Power Signal Jammer with 150m Range and Omni-directional Antennas

1
MOQ
Please consult a sales engineer
Price
250W High Power Signal Jammer with 150m Range and Omni-directional Antennas
Features Gallery Product Description Chat Now
Features
Specifications
Connector Type: 7/16 Or N-K
PIM: <-107dBm
Model: GW-VIP-JAM7
Gain: 5dBi
Wind Velocity: 60 M/s
Hold Pole Diameter: φ40 Mm
Highlight:

250W High Power Signal Jammer

,

150m Range RF Jammer

,

Omni-directional Antennas Frequency Blocker
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-VIP-JAM7
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
250W High Power Signal Jammer with 150m Range

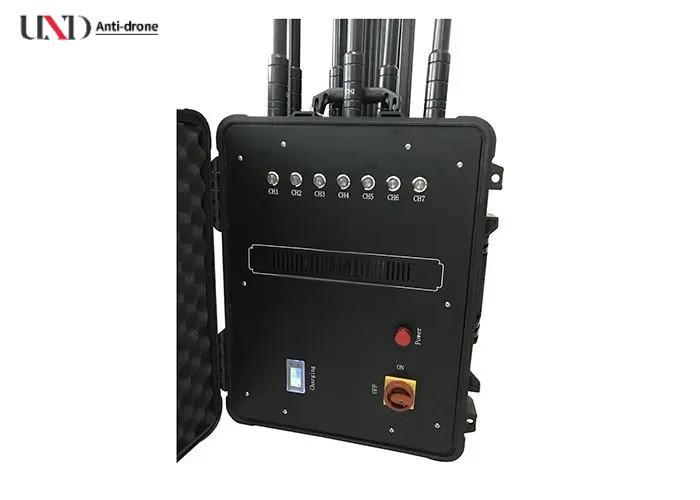

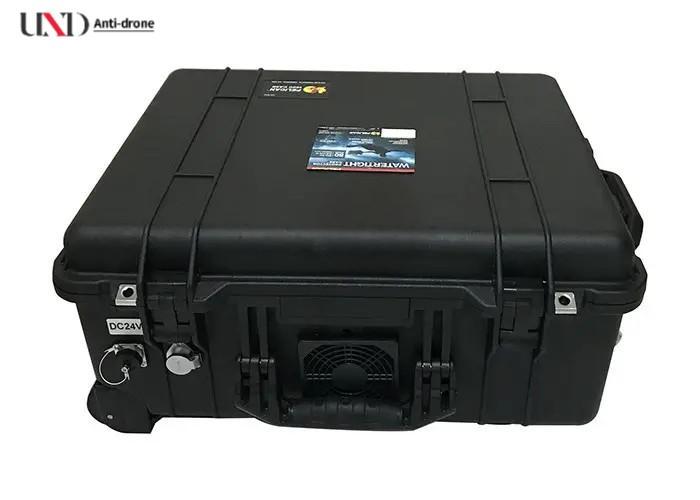

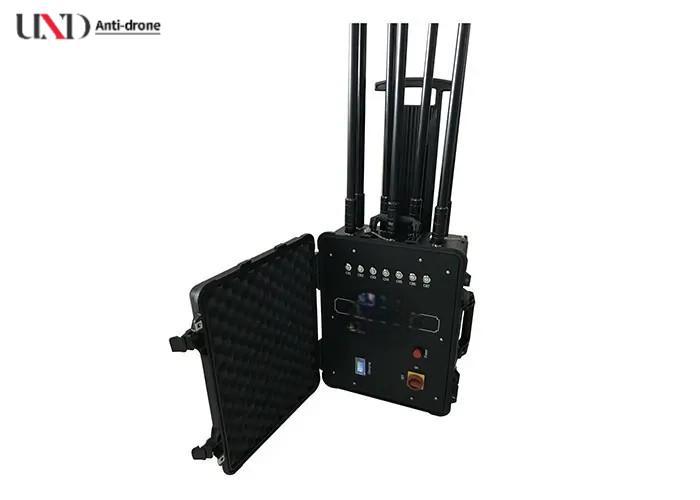

The JAMMER U-VIP-JAM7 is a high-power signal jammer featuring 7 omni-directional antennas that block cellular frequencies up to 3G and VHF-UHF radio frequencies. Designed in a portable luggage-style case, this 250W unit offers jamming coverage up to 150 meters depending on local signal conditions.
Primary Applications
  • Prevents cellular communication within designated areas, ideal for meeting rooms and secure facilities where mobile phone use is restricted
  • Blocks transmission from surveillance devices operating at targeted frequencies, providing comprehensive security protection
Technical Features
  • Utilizes super-high frequency technology with high effective power output
  • Enhanced channel power for extended interference radius
  • Selective downlink frequency interference without disrupting base station operations
  • Advanced slow-start circuit design with imported components for stable high-integration performance
System Interfaces
  • Seven N-type interfaces for antenna connections
  • Dual power supply options: AC220V input and DC24V input
Antenna Specifications
Omni-directional antennas with 5dBi gain and N male connectors
Parameter Specification
Frequency Range CH1: 450-470MHz; CH2: 400-470MHz; CH3: 135-174MHz; CH4: 851-894MHz; CH5: 925-960MHz; CH6: 2110-2170MHz; CH7: 1805-1990MHz
Length 80cm (CH3: 113cm)
Model GW-VIP-JAM7
Input Impedance 50Ω
VSWR ≤1.5
Gain 5dBi
Maximum Power 50W
Polarization Vertical Polarization
PIM <-107dBm
Connector Type 7/16 or N-K
Lightning Protection Direct Ground
Wind Velocity 60 m/s
Hold Pole Diameter φ40 mm
Operation Guidelines
  • Ensure all antennas are connected before powering on the unit. Never remove antennas during operation
  • Position antennas vertically to the ground for optimal performance
  • Protect from water, fire, and avoid operation in excessively wet, hot, high voltage, or high magnetic environments
  • Contact local distributor for charging issues or abnormal operation indicators. Unauthorized modifications or repairs are prohibited
  • Damage resulting from improper operation or disassembly is not covered under warranty
Technical Specifications
Output Interface Frequency Band RF Output Power (±1dBm)
CH1 450-470 MHz 47 dBm
CH2 400-470 MHz 47 dBm
CH3 135-174 MHz 43 dBm
CH4 851-894 MHz 46.5 dBm
CH5 925-960 MHz 46.5 dBm
CH6 2110-2170 MHz 45.5 dBm
CH7 1805-1990 MHz 44.5 dBm
Output Power: 250W
Power Consumption: 500W
Power Supply: AC110V / DC24V 40Ah Battery
Shielding Area: 50-150m (depending on mobile network signal density)
Antenna Weight: 3Kg
Antenna with Packing: 11.2KG
Antenna Packing Dimensions: 117*28*13.5cm
Jammer Weight: 31.2Kg
Jammer with Packing: 41.4KG
Jammer Packing Dimensions: 64*53*34.5cm
Operating Humidity: 30%-95%
Operating Temperature: -20 to +55°C
