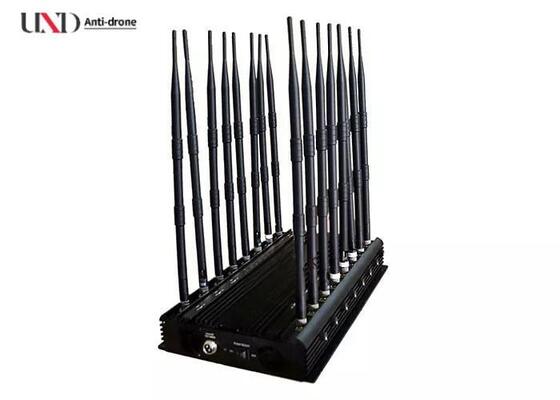

UAV Drone Frequency Jammer with 16 Antennas 5.8G Frequency and 38W Output Power

1
MOQ
Please consult a sales engineer
Price
UAV Drone Frequency Jammer with 16 Antennas 5.8G Frequency and 38W Output Power
Features Gallery Product Description Chat Now
Features
Specifications
Net Weight: 7.0kg
Dimensions: 238mm (width) × 60mm (height) × 395mm (length)
Power Supply: AC Adapter (AC220V-DC12V)
Shielding Radius: 5-50 Meters @ -75dBm (dependent On Local Signal Strength)
Color: Black
Highlight:

16 Antennas UAV Drone Frequency Jammer

,

5.8G Frequency Drone Jamming Device

,

38W Output Power Signal Jammer
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-JA16
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
UAV Drone Frequency Jammer, Drone Jamming Devices 16 Antennas 5.8G
Product Overview

Advanced 5.8G UAV drone frequency jammer featuring 16 antennas for comprehensive signal disruption capabilities across multiple frequency bands.

Key Features
  • 16-antenna design for multi-band signal jamming
  • Blocks 2G, 3G, 4G, 5.8G mobile signals simultaneously
  • Disrupts Bluetooth, WiFi, GPS, VHF, UHF, and LoJack signals
  • Adjustable jamming distance and power settings
  • Vehicle-compatible with car charger and adapter design
  • Advanced cooling system for 24/7 continuous operation
  • Total output power: 38W
  • Heat sink casing for stable thermal performance
Technical Specifications
Output Port Frequency Average Output Power Channel Output Power
CDMA851-894MHz35dBm5dBm/30KHz(min)
GSM925-960MHz35dBm5dBm/30KHz(min)
DCS1805-1880MHz33dBm2dBm/30KHz(min)
PCS1920-1990MHz33dBm2dBm/30KHz(min)
3G2110-2170MHz33dBm2dBm/30KHz(min)
WIFI2.4G2400-2500MHz30dBm0dBm/30KHz(min)
GPS1575MHz32dBm5dBm/30KHz(min)
4G LTE700/LTE800725-825MHz34dBm3dBm/30KHz(min)
4G WIMAX2500-2690 MHz30dBm0dBm/30KHz(min)
UHF400-470Mhz34dBm2dBm/30KHz(min)
VHF135-174Mhz34dBm2dBm/30KHz(min)
LOJACK173.075Mhz34dBm5dBm/30KHz(min)
315315Mhz33dBm5dBm/30KHz(min)
433433Mhz34dBm5dBm/30KHz(min)
5.8G5725-5850MHz33dBm5dBm/30KHz(min)
GPSL2-L51170-1280MHz32dBm5dBm/30KHz(min)
Option4G2300/868/3.6G/ UHF200-400MHz/ Wireless camera1000-1390MHz.etc.
Additional Specifications
  • Power Supply: AC adapter (AC220V-DC12V)
  • Shielding Radius: 5-50 meters @ -75dBm (dependent on local signal strength)
  • VHF/UHF shielding radius typically less than cell phone signal range
  • Dimensions: 238mm (width) * 60mm (height) * 395mm (length)
  • Net Weight: 7.0kg
