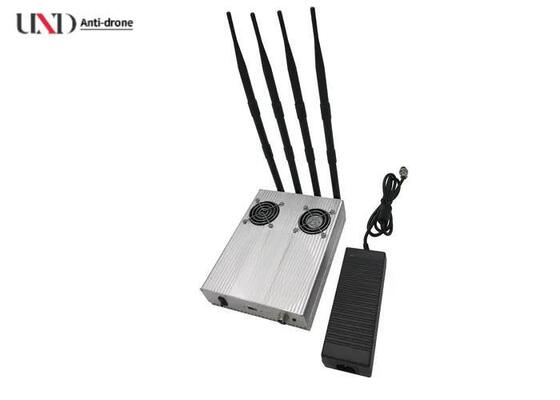

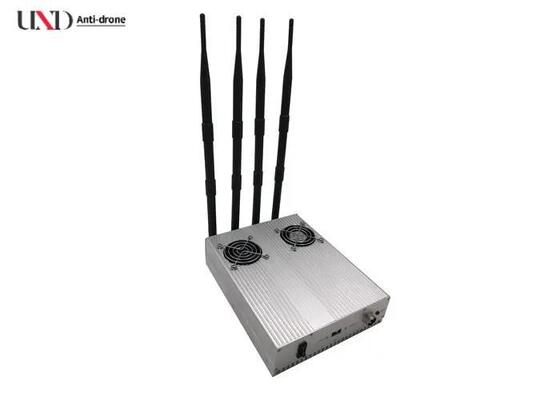

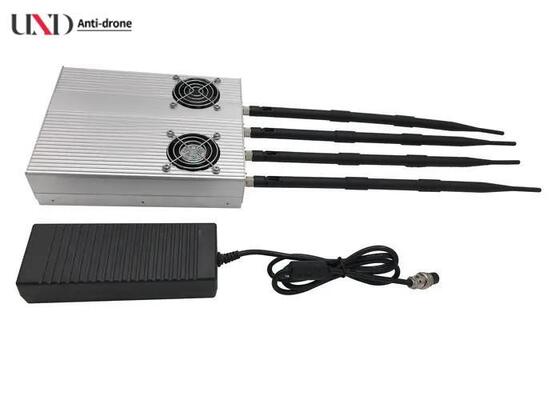

The U-JB20 is a high-performance desktop signal jammer designed to effectively block 2G, 3G, 4G, and WiFi signals in examination halls and other sensitive environments. With 20W output power and four dedicated antennas, this device provides reliable signal disruption within a radius of up to 70 meters.
Ideal for use in theatres, offices, meeting rooms, oil and gas facilities, hospitals, recording studios, banks, contract tendering rooms, churches, conference rooms, classrooms, testing facilities, security services, military operations, secret services, libraries, museums, courts, border patrol, drug enforcement, customs, houses, mosques, and prisons.
| Output Port | Frequency | Average Output Power | Channel Output Power |
|---|---|---|---|
| CDMA | 851-894MHz | 37dBm | 4dBm/30KHz(min) |
| GSM | 925-960MHz | 37dBm | 3dBm/30KHz(min) |
| DCS | 1805-1880MHz | 37dBm | 3dBm/30KHz(min) |
| PCS or 3G | 1930-1990MHz or 2110-2170MHz | 36.5dBm | 1dBm/30KHz(min) |
Power Supply: AC110-240V, DC 5V/12A
Energy Consumption: 60W
Dimensions: 45×24×8.5cm
Weight: 3.5kg
Output Power: 20W
Jamming Range: 2-50m radius (depending on local signal intensity)
Operating Temperature: -10°C to +55°C
Humidity: 5% - 95%
Antennas: External omnidirectional antennas
