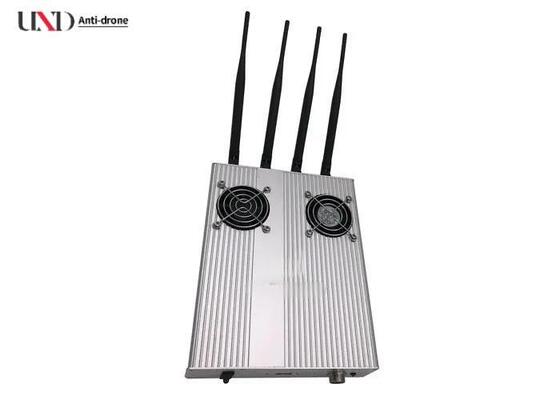

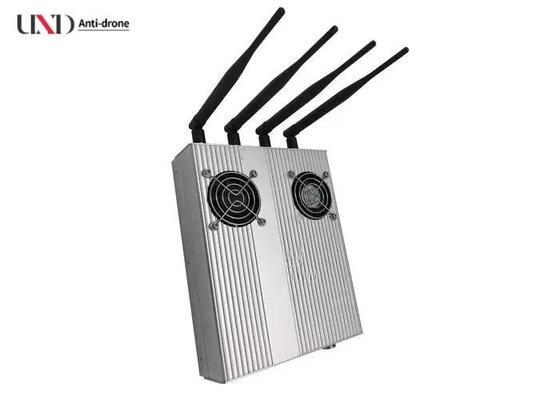

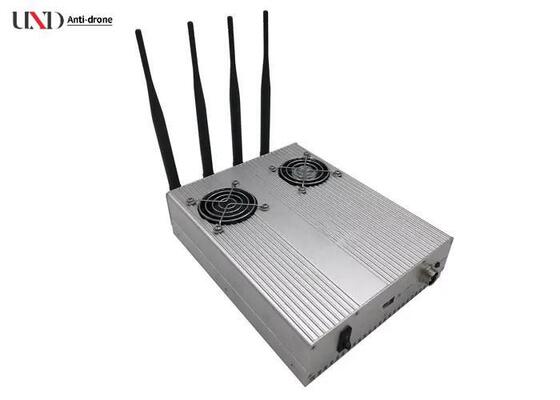

EGSM PCS1900MHz 4G LTE Cell Phone Blocker for Business, Office and Residential Use
In today's wireless world, mobile phone signals are nearly unavoidable. However, there are situations where signal isolation is necessary to create peaceful, secure environments. Our advanced jamming technology provides reliable signal blocking when and where you need it most.
Advanced Signal Blocking Technology
This desktop-adjustable output power jammer stands out with exceptional jamming effectiveness and capability. Engineered as a 4-band adjustable device, it efficiently blocks 2G, 3G, 4G, and WiFi signals. With high-quality construction and optimal performance, it achieves a maximum jamming radius of 40 meters, depending on local signal strength.
Key Features
- Advanced cooling system for optimal performance
- Jamming range up to 40 meters
- 24-hour continuous operation capability
- Remote control on/off functionality
- Stable performance with excellent cost-effectiveness
- 10W output power for enhanced jamming efficiency
- Heat sink casing ensures stable, cool operation
- Four channels with customizable frequency ranges
- Transmits noise signals to disrupt all communication between cell phones and base stations
Supported Frequency Customization
Customizable for various cellular standards worldwide including Walkie Talkie, 450MHz, GPRS, iDEN, GPS, Galileo, Compass, Glonass, UMTS, WiFi, AWS, and LTE 4G.
Applications
Theatres
Offices
Meeting Rooms
Oil and Gas Facilities
Hospitals
Recording Studios
Banks
Contract Tendering Rooms
Churches
Conference Rooms
Classrooms
Testing Facilities
Security Services
Military
Secret Services
Libraries
Museums
Courts
Border Patrol
Drug Enforcement
Customs
Residential Properties
Mosques
Prisons
Important: This device only interferes with downlink frequency of mobile systems and does not affect normal operation of base stations.
Technical Specifications
Frequency and Power Output
| Output Port |
Frequency |
Average Output Power |
Output Power |
| CDMA800 |
851-894MHz |
35dBm |
3W |
| GSM900 |
925-960MHz |
35dBm |
3W |
| DCS1800/PCS1900 |
1805-1880MHz/1930-1990MHz |
33dBm |
2W |
| 3G |
2110-2170MHz |
33dBm |
2W |
| GPS (Optional) |
1570-1580MHz |
33dBm |
2W |
| WIFI (Optional) |
2400-2500MHz |
33dBm |
2W |
General Specifications
| Parameter |
Specification |
| Total Output Power |
10 Watt |
| Power Supply |
AC110-240V, DC 5V/8A |
| Power Consumption |
30 Watt |
| Weight |
2.8kg |
| Size |
210*170*50mm |
| Running Temperature |
-10°C to +55°C |
| Humidity |
5% - 95% |
| Jamming Range (Radius) |
2 - 40 meters (depending on local signal strength) |
Antenna Specifications
| Parameter |
Specification |
| Frequency Range |
Same as jammer channel |
| Impedance |
50 Ohm |
| VSWR |
<1.5 |
| Gain |
2-3dBi |
| Polarization |
Vertical |
| Radiation Direction |
Omni |
| Max. Power |
50 W |
| Connector |
SMA |
| Color |
Black |
Package Contents
Complete set includes four omni-directional antennas, power cable, remote control, and fixed mount. The device is securely packed in a robust safety box with PE foam interior, providing superior protection and convenient portability.
