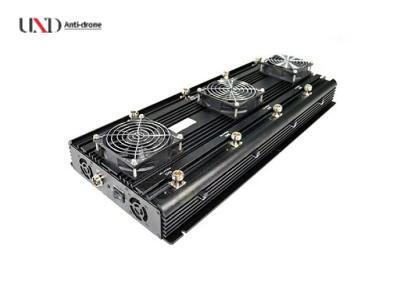

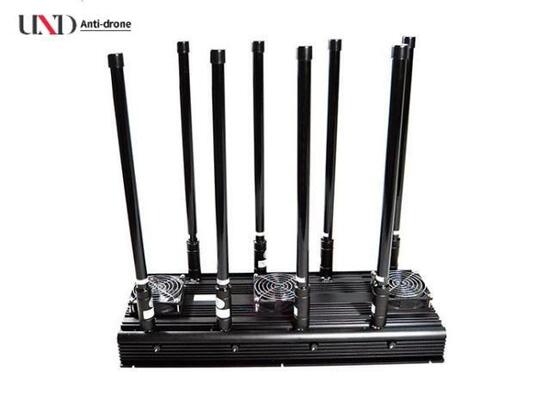

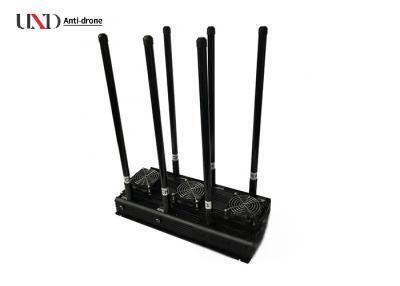

100 Watt 6 Channels Signal Jammer with 150 Meters Range for Prisons and Conference Rooms

1
MOQ
Please consult a sales engineer
Price
100 Watt 6 Channels Signal Jammer with 150 Meters Range for Prisons and Conference Rooms
Features Gallery Product Description Chat Now
Features
Specifications
Package Size: 460×235×95mm
Working Temperature: -30°C To 60°C
Total Power: 80-100W
Warranty: One Year From Delivery Date
Shielding Radius: 20-150 Meters At -75dBm (dependent On Local Signal Strength)
Power Supply: AC Adapter 50 To 60Hz (AC110 Or 240V-DC27V)
Highlight:

100 Watt Signal Jammer

,

6 Channels Cell Phone Jammer

,

150 Meters Range Frequency Blocker
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-006B-M
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
3G 4G Signal Jammer For Prisons / Conference Rooms 100 Watt 6 Channels
Product Overview
The SA-006B-M 100W 6 Channels 3G 4G Signal Jammer is one of the most powerful cell phone jammers available on the market. With 100W output power, this professional-grade blocker effectively disables GSM, 3G, CDMA, 4G, GPS, Lojack, WiFi, and other communication frequencies within a radius of up to 150 meters.
Key Features
  • Continuous 24/7 operation in extreme hot/cold weather conditions
  • Fast and easy installation and operation
  • Configurable for jamming frequencies in any country
  • Secure design to prevent sabotage
  • Compatible with UPS battery systems
  • VSWR circuit protection against system burn, antenna short circuiting, or disconnection
Technical Specifications
Channel Output Port Frequency Range Average Output Power
1 CDMA 850-894MHz 44dbm / 20W
2 PCS 1920-1990MHz 41dbm / 10W
3 3G 2110-2170MHz 41dbm / 10W
4 4G LTE 2600 2500-2690 MHz 40dbm / 10W
5 4G LTE 700 700-803 MHz 44dbm / 15W
6 Wi-Fi 2.4G+4G2300 2345-2500MHz 40dbm / 10W
Optional Frequency Bands
The following frequencies can be substituted for the standard configuration to create custom 6-band combinations:
Option Frequency Range Power Output
WIFI5.2G 5100-5500MHz 36dbm / 4W
Wi-Fi 5.8G 5500-5580MHz 36dbm / 4W
GPSL1 1570-1580MHz 41dbm / 10W
LOJACK & XM Radio 167-175MHz 44dbm / 20W
VHF 130-174MHz 44dbm / 20W
UHF 400-470MHz 44dbm / 20W
4G1 LTE 850 790-862MHz 44dbm / 20W
4G1 LTE 1700 1710-1780MHz 41dbm / 10W
GSM 925-960MHz 44dbm / 20W
DCS 1805-1880MHz 44dbm / 10W
General Specifications
  • Power Supply: AC adapter 50 to 60Hz (AC110 or 240V-DC27V)
  • Dimensions: 520*230*200mm (excluding antennas)
  • Package Size: 460*235*95mm
  • Net Weight: 7kg, Gross Weight: 10kg
  • Working Temperature: -30°C to 60°C
  • Total Power: 80-100W
  • Shielding Radius: 20-150 meters at -75dBm (dependent on local signal strength)
  • Warranty: One year from delivery date
Applications
  • Prisons, meeting rooms, conference rooms, and secure facilities
  • Museums, galleries, theaters, concert halls, churches, and temples
  • Restaurants, classrooms, training centers, and factories
  • Banks, trains, buses, and transportation systems
Important Note: For sensitive locations such as hospitals and gas stations, please conduct field testing first to ensure no interference with normal equipment operation.
Package Contents
  • 1 high power 3G 4G signal jammer unit
  • 1 AC outer detachable power supply
  • 6 antennas
