Home /Products/Prison Cell Phone Jammers/70W High Power Prison Cell Phone Jammer With 4 Cooling Fans And 6 Bands For 3G 4G Signal Blocking

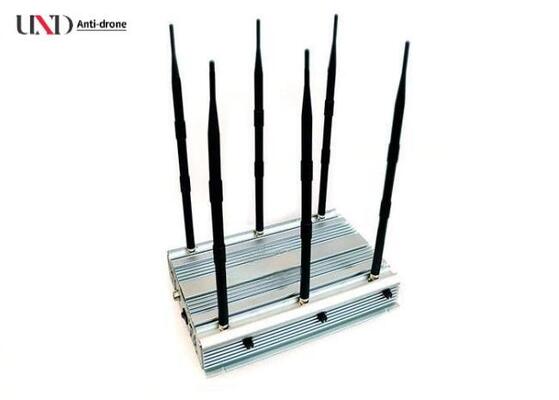

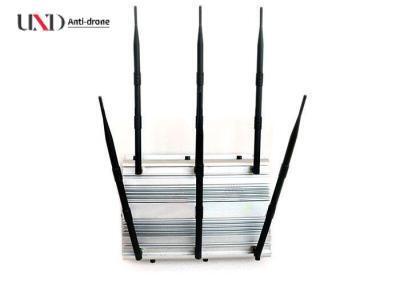

70W High Power Prison Cell Phone Jammer With 4 Cooling Fans And 6 Bands For 3G 4G Signal Blocking

1
MOQ
Please consult a sales engineer
Price
70W High Power Prison Cell Phone Jammer With 4 Cooling Fans And 6 Bands For 3G 4G Signal Blocking
Features Gallery Product Description Chat Now
Features
Specifications
Dimensions: 335 X 238 X 60mm (excluding Antenna)
Power Supply: AC Adapter 50 To 60Hz (AC110 Or 240V-DC27V)
Weight: Net 6kg
Operating Temperature: -20°C To +60°C
Total Power: 70W
Warranty: One Year From Delivery Date
Highlight:

70W High Power Prison Cell Phone Jammer

,

4 Cooling Fans Signal Jammer

,

6 Bands Frequency Blocker
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-006M-S
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
U-006M-S High Power Cell Phone Signal Blocker
The U-006M-S is a professional-grade cell phone signal blocker designed for long-distance signal disruption. With 70W output power and 6 frequency bands, this device effectively blocks cellular communications including CDMA, GSM, 2G, 3G, 4G WiMAX, 4G LTE, WiFi 2.4GHz, GPS, and remote control signals within an 80-meter radius.
Key Features
  • Advanced cooling system with 4 cooling fans
  • Low electromagnetic radiation operation
  • Works with DC 12V to AC 220V inverter (2000W)
  • Compatible with normal car battery DC 12/80-100AH for 24-hour continuous operation
  • External battery option provides 1.5 hours of operation (24V/20AH LiFePo4) with charger
  • Effective jamming range up to 80 meters
  • Stable performance with heat sink casing
  • Six configurable frequency channels
  • Customizable for various cellular standards worldwide
Technical Specifications
Channel Output Port Frequency Range Average Output Power
1 GSM 850-960MHz 20W
2 DCS 1805-1990MHz 10W
3 3G 2110-2170MHz 10W
4 WiFi 2.4G 2400-2500MHz 10W
5 4G1 LTE 700-805MHz 20W
6 4G LTE 2500-2690MHz 10W
Optional Frequency Configurations
Option Frequency Range Output Power
WiFi 5.2G 5100-5500MHz 39dbm / 8W
WiFi 5.8G 5500-5580MHz 39dbm / 8W
WiFi 3.6G 3500-3600MHz 39dbm / 8W
GPS L1 1570-1580MHz 40dbm / 10W
GPS L2+L5 1170-1280MHz 40dbm / 10W
LOJACK & XM Radio 167-175MHz 44dbm / 25W
VHF 130-174MHz 44dbm / 15W
UHF 400-470MHz 44dbm / 15W
UHF2 190-300MHz 44dbm / 15W
UHF3 300-400MHz 44dbm / 15W
4G1 LTE 1700 1710-1780MHz 40dbm / 10W
Power Supply: AC adapter 50 to 60Hz (AC110 or 240V-DC27V)
Dimensions: 335 x 238 x 60mm (excluding antenna)
Package Size: 450 x 235 x 95mm
Weight: Net 6kg, Gross 8kg
Operating Temperature: -20°C to +60°C
Total Power: 70W
Warranty: One year from delivery date
Shielding radius: 20-80 meters at -75dBm (dependent on signal strength in given area). VHF/UHF signal shielding radius may be lesser than cell phone signals.
Additional Options
  • Directional External Patch Panel Antennas
  • Omni car magnetic antenna bases
  • External battery with 1.5 hour operation (24V/20AH LiFePo4) + Charger
  • DC 12V to AC 220V inverter 2000W for car battery operation
Applications
  • Prevent unauthorized cell phone usage
  • Protect against confidential information leaks
  • Block GPS location tracking
  • Prevent remote-controlled cell phone detonation
  • Educational institutions, examination centers, religious facilities, healthcare facilities
Package Contents
  • 1x Desktop Jammer Unit
  • 1x AC 110/220V DC 12/27V 20A Power Supply
  • 6x Omni Antennas (380mm length)
Tag:

Cell Phone Jamming Devices

Phone Signal Blocker

Cell Phone Jamming Equipment
