Home /Products/Drone Anti Jammer Device/Miniaturized and Lightweight UAV Anti Jamming Module with BDS+GPS+GLONASS+GALILEO Support and 6-Interference Resistance

Miniaturized and Lightweight UAV Anti Jamming Module with BDS+GPS+GLONASS+GALILEO Support and 6-Interference Resistance

1
MOQ
Please consult a sales engineer
Price
Miniaturized and Lightweight UAV Anti Jamming Module with BDS+GPS+GLONASS+GALILEO Support and 6-Interference Resistance
Features Gallery Product Description Chat Now
Features
Specifications
Operating Frequency: BDS-B1: 1561.098MHz GPS-L1, GAL-E1: 1575.42MHz GLO-G1: 1602MHz
Positioning Accuracy: No Interference: Horizontal ≤1.5m, Elevation ≤1.5m With Interference: Horizontal ≤10m, Elevation ≤10m
Velocity Accuracy: ≤0.2m/s (95%)
Timing Accuracy: ≤100ns (95%)
Operating Voltage: 6-33V
Power Consumption: ≤25W
Highlight:

BDS+GPS+GLONASS+GALILEO Support UAV Anti Jamming Module

,

6-Interference Resistance GNSS Signal Extender

,

Miniaturized and Lightweight GPS Amplifier
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-3T7A21C-WG-DT
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Satellite Drone Signal Module Anti Jamming GPS Amplifier UAV GLONASS Extender
Anti-Jamming GPS Amplifier
This miniaturized satellite navigation anti-interference all-in-one device is designed for civil UAVs and industrial users. It supports BDS+GPS+GLONASS+GALILEO systems, features broadband interference resistance, and can effectively counter up to 6 simultaneous interference sources.
The device integrates antenna arrays, anti-interference components, and satellite navigation receivers, offering exceptional performance with miniaturized design, lightweight construction, and cost-effective operation.
Key Features
  • Multi-system support: BDS, GPS, GLONASS, and GALILEO
  • Advanced broadband interference resistance technology
  • Capable of resisting up to 6 simultaneous interference sources
  • Compact, lightweight design for easy integration
  • Cost-effective solution for industrial applications
  • Integrated antenna arrays and navigation receivers
Technical Specifications
Parameter Specifications
Operating Frequency BDS-B1: 1561.098MHz
GPS-L1, GAL-E1: 1575.42MHz
GLO-G1: 1602MHz
Interference Resistance Single Interference SIR: ≥110dB
Triple Interference SIR: ≥100dB
Six Interference SIR: ≥90dB
Positioning Accuracy No Interference: Horizontal ≤1.5m, Elevation ≤1.5m
With Interference: Horizontal ≤10m, Elevation ≤10m
Velocity Accuracy ≤0.2m/s (95%)
Timing Accuracy ≤100ns (95%)
Operating Voltage 6-33V
Power Consumption ≤25W
Product Image

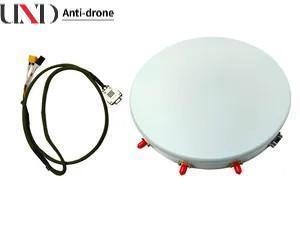

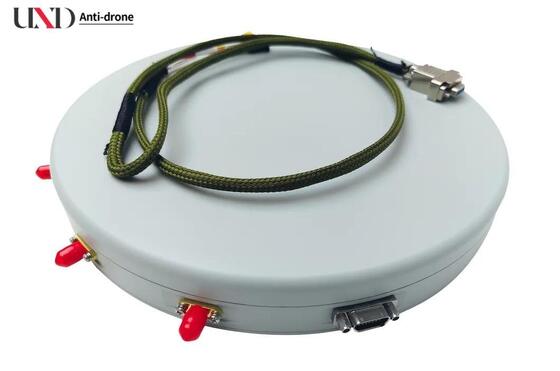

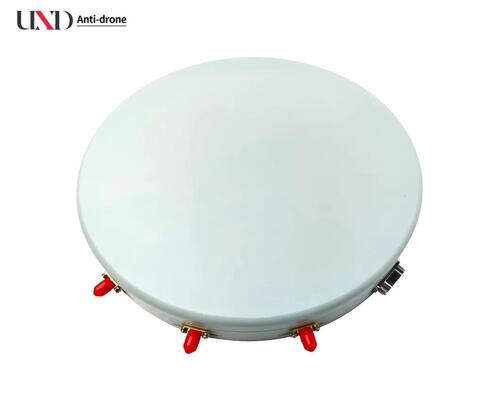

Miniaturized and Lightweight UAV Anti Jamming Module with BDS+GPS+GLONASS+GALILEO Support and 6-Interference Resistance 0
