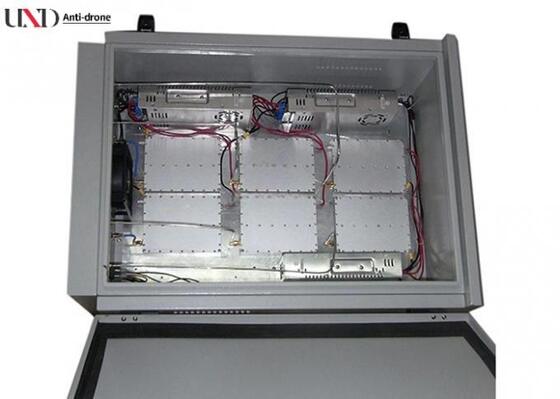

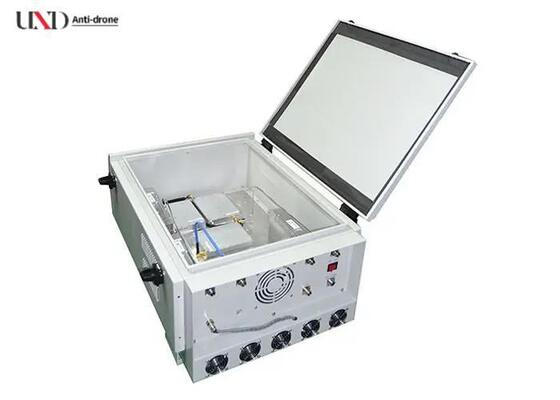

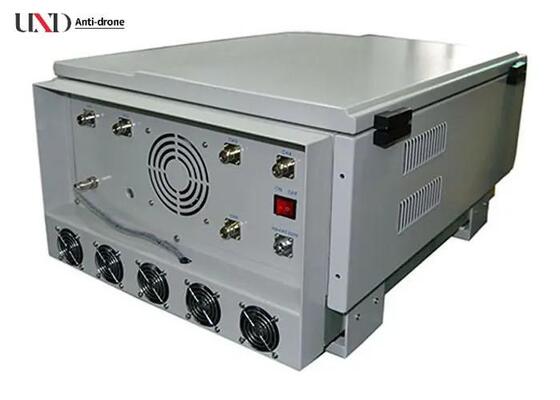

Drone Signal Scrambler Jamming Range up to 1000M DJi UAV High Power Signal Jammer
The GW-J250UAVi8 High Power Drone Jammer is a professional-grade signal scrambling device with a 350W output and jamming range up to 1000 meters. Specifically designed for outdoor applications, this advanced system effectively blocks 6-8 frequency bands simultaneously and operates continuously in high-temperature environments.
Product Specifications
Model: U-J250UAVi8
Key Features
- High RF power coverage for 100% of DJI UAVs including Phantom 4, Phantom 3 Professional, Advanced, Standard series, and Inspire Series
- Directional jamming range: 300-1000 meters (dependent on local signal strength)
- 6-8 frequency bands in one device
- Continuous operation in high-temperature environments without time limitations
- Outdoor design with easy installation
Product Advantages
- Simultaneously blocks 6-8 frequency bands
- Continuous operation in very hot environments without time limits
- Outdoor design for easy installation
- Protection design to prevent damage
- Directional or optional omni-directional antennas available
- Optional antennas for customizable jamming range
- Optional wireless RC or Ethernet PC remote control
- 100% safe VSWR over protection for every module
Package Contents
Main jammer master (1 pc), Power cord (1 pc), Omni antennas with magnetic bases (6 pc)
OEM Customization Services
Flexible mixing of 6 frequency modules with various power options including L2/L3/L4/L5 (100W), VHF 130-180MHz (100W), 300-400MHz (100W), UHF 420-480MHz (100W), RC 868MHz (100W), and customizable frequency ranges. All combinations across 6 bands are possible, with silkscreen OEM services available.
Applications
Ideal for securing sensitive areas including churches, museums, movie theaters, conference rooms, classrooms during exams, courts, hospitals, banks, recording studios, and other crowded locations where mobile device usage is prohibited to prevent information leakage.
Technical Specifications (American Market)
| Channel |
Output Port |
Frequency Range |
Average Output Power |
| 1 |
433 |
433MHz |
47dBm / 50W OR 100W |
| 2 |
915 or 868 or 912 |
868-915MHz |
47dBm / 50W OR 100W |
| 3 |
GPSL1 |
1570-1607MHz |
47dBm / 50W OR 100W |
| 4 |
GPSL2 |
1225-1249MHz |
47dBm / 50W OR 100W |
| 5 |
2400 |
2400-2500MHz |
47dBm / 50W OR 100W |
| 6 |
5.8G |
5725-5850MHz |
44dBm / 30W |
Additional Specifications
Power supply: AC adapter 50 to 60Hz (110 or 240V AC-27V DC)
Dimensions: 740*510*350mm (excluding antenna)
Package size: 90*70*50cm
Net weight: 70kg
Gross weight: 95kg
Working temperature: -30 to 60°C
Total power: 350W
Shielding radius: 300-1000 meters at -75dBm
Warranty: One year from delivery date
Shipping Information
FOB Port: Shenzhen
Lead Time: 5-10 days
Dimensions per Unit: 90*70*50cm
Weight per Unit: 100kg
Units per Export Carton: 1
Export Carton Dimensions: 90*70*50cm
Export Carton Weight: 100kg
