Adjustable Output Power RF Blocker with 40m Jamming Range and 5 Bands Coverage Signal Jammer for Schools

1
MOQ
Please consult a sales engineer
preço
Adjustable Output Power RF Blocker with 40m Jamming Range and 5 Bands Coverage Signal Jammer for Schools
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Impedância: 50 ohm
Ganho: 2-3dBi
Máx. Poder: 50 W
Cor: Preto
Umidade: 5% - 95%
Temperatura de corrida: -10℃ a +55℃
Destacar:

Adjustable Output Power Signal Jammer

,

40m Jamming Range RF Blocker

,

5 Bands Coverage Mobile Phone Jammer
Informação básica
Lugar de origem: China
Marca: UND
Número do modelo: U-JB5A
Condições de Pagamento e Envio
Tempo de entrega: 5-8 dias
Termos de pagamento: T/T
Habilidade da fonte: 100
Descrição de produto

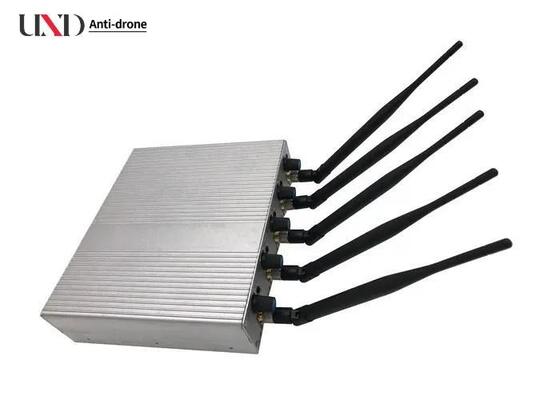

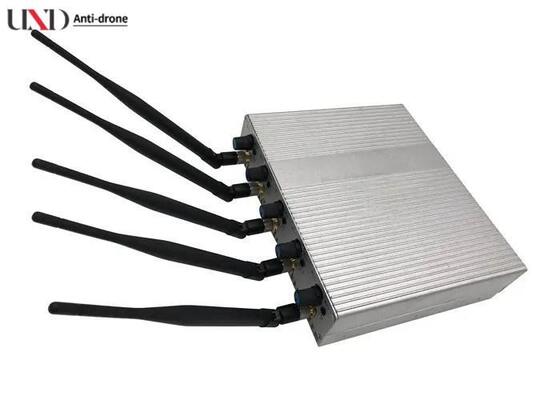

Adjustable RF Blocker, Mini Portable Mobile Phone Signal Jammer for Schools 3G 4G
Product Overview
This adjustable RF blocker is a sophisticated desktop mobile phone signal jammer designed for creating mobile-free zones in various environments. With adjustable output power settings and powerful jamming capabilities, it effectively blocks 3G, 4G, and other cellular signals within a radius of up to 40 meters.
Key Features
  • Advanced cooling system for optimal performance
  • Jamming range up to 40 meters depending on signal strength
  • 24-hour continuous operation capability
  • Remote control on/off functionality
  • Stable performance with cost-effective operation
  • 12.5W output power for efficient jamming
  • Heat sink case ensures stable and cool operation
  • Five frequency channels with customizable options including Walkie Talkie, GPS, WiFi, LTE 4G, and more
  • Transmits noise signal to disrupt communication between cell phones and base stations
Applications
  • Theatres, offices, and meeting rooms
  • Oil and gas storage facilities
  • Hospitals and recording studios
  • Banks and contract tendering rooms
  • Churches, conference rooms, and classrooms
  • Testing facilities and security services
  • Military, secret services, and government facilities
  • Libraries, museums, courts, and border patrol
  • Prisons and correctional facilities
Technical Specifications
Only interferes with downlink frequency of mobile systems without affecting base station operations
Output Port Frequency Average Output Power Output Power
CDMA800 851-894MHz 35dBm 3W
GSM900 925-960MHz 35dBm 3W
DCS1800/PCS1900 1805-1880MHz/1930-1990MHz 33dBm 2W
3G 2110-2170MHz 33dBm 2W
GPS (Optional) 1570-1580MHz 33dBm 2W
WIFI (Optional) 2400-2500MHz 33dBm 2W
Total Output Power 12.5 Watt
Power Supply AC110-240V, DC 5V/8A
Power Consumption 30 Watt
Weight 3.0kg
Size 210*170*50mm
Running Temperature -10℃ to +55℃
Humidity 5% - 95%
Jamming Range 2-40 meters radius (depending on local signal strength)
Antenna Specifications
Parameter Specification
Frequency Range Same as jammer channel
Impedance 50 Ohm
VSWR <1.5
Gain 2-3dBi
Polarization Vertical
Radiation Direction Omni
Max. Power 50 W
Connector SMA
Color Black
Package Contents
Device is packed in a strong safety box with PE foam interior for maximum protection. Includes four omni-directional antennas, power cable, remote control, and fixed mount.
