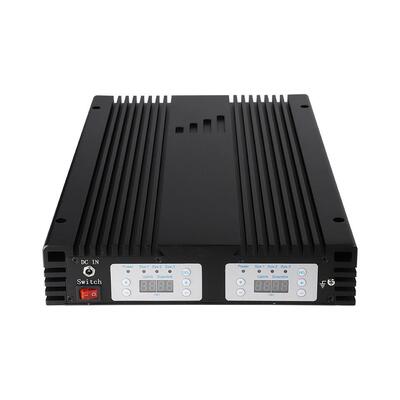

30dBm Dual Band Signal Booster 80dB Gain Indoor Cell Phone Booster For GSM WCDMA 3G 4G

1
MOQ
Please consult a sales engineer
Price
30dBm Dual Band Signal Booster 80dB Gain Indoor Cell Phone Booster For GSM WCDMA 3G 4G
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Dual Band Signal Booster
Band Width: Wide Band
Manual Gain Control: 31dB / 1dB Step
Noise Figure: ≤ 6dB
Operating Temperature: -10°C ~ +55°C
Size: 239*268*58mm
Weight: 5.5Kg
Highlight:

30dBm Dual Band Signal Booster

,

80dB Gain Indoor Cell Phone Booster

,

30dBm Indoor Cell Phone Booster For
Basic Infomation
Place of Origin: China
Brand Name: UND
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Dual Band Signal Booster with 30dBm Output Power and 80dB Gain for GSM WCDMA 3G 4G in Supermarkets and Underground Parking
Professional GSM/WCDMA 3G/4G signal booster designed for supermarket and underground parking applications. This dual-band repeater enhances indoor wireless connectivity with advanced features and reliable performance.
30dBm Dual Band Signal Booster 80dB Gain Indoor Cell Phone Booster For GSM WCDMA 3G 4G 0
Technical Specifications
Parameter Uplink Downlink
GSM900 880-915MHz 925-960MHz
WCDMA2100 1920-1980MHz 2110-2170MHz
Gain 75dB±2dB 80dB±2dB
Output Power 27dBm±2dBm 30dBm±2dBm
Band Width Wide Band
Manual Gain Control 31dB / 1dB Step
ALC ≥ 20dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Power Supply AC 90-264V, DC 9V/5A
Operating Temperature -10°C ~ +55°C
Size 239*268*58mm
Weight 5.5Kg
Product Overview
This indoor signal repeater series provides an ideal solution for small/medium businesses and home users seeking enhanced indoor wireless connectivity. The system connects via coaxial cable to donor and service antennas, extending radio coverage to blind areas while maintaining high voice quality and minimizing network interference.
Key Features
  • Digital Display Panel with intelligent mode setting
  • Smart function activation via digital display panel
  • Adjustable gain and working system via LCD Digital Panel
  • Simple and efficient parameter setting
  • Automatic Gain Control (AGC) to prevent over saturation
  • Compact design with easy installation
  • Wall installation compatible
  • Heatsink convection cooling system
  • Dual band operation for comprehensive coverage
Standard Package Contents
  • AC90-264V, DC9V/5A power supply adapter (1 piece)
  • AC power cord (EU/US/UK/SA/China standard, etc.) (1 piece)
  • Installation kit (1 piece)
  • User manual (1 piece)
Connection Guide
BTS Port: Connect donor antenna cable to Outdoor Port
MS Port: Connect service whip antenna to Indoor Port
DC IN: Connect to Power adaptor
