6 Channel UAV Drone Jammer 155W High Power Drone Signal Scrambler With 2KM Distance

1
MOQ
Please consult a sales engineer
Price
6 Channel UAV Drone Jammer 155W High Power Drone Signal Scrambler With 2KM Distance
Features Gallery Product Description Chat Now
Features
Specifications
Operating Temperature: -20°C To +65°C
Relative Humidity: 5%-95% Non-condensing
Cooling: Forced Air Cooling
Operational Power: 90-260V AC / 24V DC Internal Power Supply
Application: Airport,Lab Testing / Signal Jammer,Signal Jammer,conference,Control Drone By GPS/GALILEO/GLONASS
Warranty: 1 Year
Highlight:

6 Channel UAV Drone Jammer

,

UAV Drone Jammer 155W

,

High Power Drone Signal Scrambler
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-JM007
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description

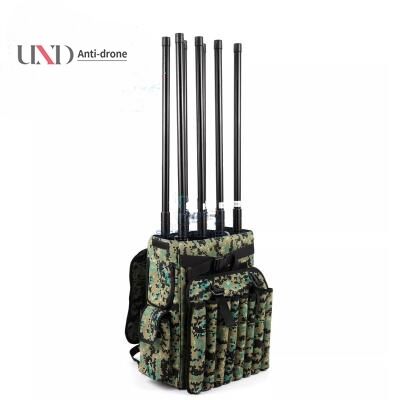

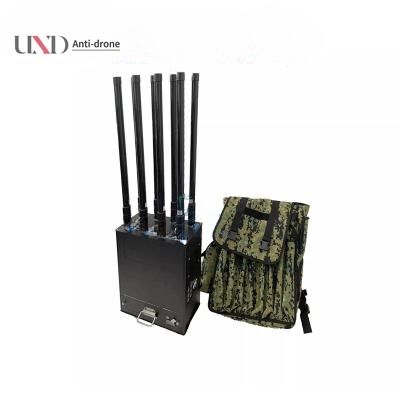

155W High Power Backpack Drone Signal Jammer with 2KM Distance and 6 Channels for UAV Jamming
Professional 6-channel drone frequency jammer featuring VSWR protection and customizable frequency bands. This high-power backpack system delivers reliable signal disruption at distances up to 2 kilometers.
Product Overview
The U-JM006 backpack drone radio jammer offers flexible configuration with optional 5, 6, 7, or 8 frequency bands. Available with either omnidirectional or directional antennas, this 155W high-power system provides comprehensive signal disruption capabilities including cellular phone signals.
Power Options: Built-in Li-ion battery provides 1.5 hours continuous operation, 48 hours standby, with 5-hour charging time. Can also operate via power adapter with 90-260V AC or 12/24V DC input.
Key Features
  • Backpack design for mobile deployment
  • VSWR protection system
  • Overheat protection: 70°C cutoff, 65°C resume operation
  • 90-260V AC / 24V DC internal power supply
  • Forced air cooling system
  • On/Off switch with indicator and individual band selection controls
  • Internal Li-ion 20AH battery
  • 2KM effective jamming distance
Technical Specifications
Antenna System
6 omnidirectional high gain antennas (6-8 dBi), one per frequency band with VSWR disconnect/short antenna protection
Jamming System
Frequency Bands Output Power
1560-1610 MHz 50W / 47±1.5dbm
2400-2500 MHz 50W / 47±1.5dbm
5700-5900 MHz 30W / 44±1.5dbm
902-928 MHz 50W / 47±1.5dbm
GPSL2/433/900/Customized 25-50W / 47±1.5dbm
Electrical Specifications
  • Protection: VSWR protection, Overheat protection (70°C cutoff, 65°C resume)
  • Operational Power: 90-260V AC / 24V DC Internal Power Supply
  • Cooling: Forced Air Cooling
  • Controls & Indicators: On/Off switch & indicator with individual band selection buttons
  • Batteries: Internal Li-ion 20AH
Mechanical Specifications
  • Deployment: Rapid Deployment/Mobile
  • Casing: Rigidized backpack
  • Weight: No more than 22kg (main backpack unit with battery, without external antennas)
Environmental Specifications
  • Operating Temperature: -20°C to +65°C
  • Resistance: IP52 rated
  • Relative Humidity: 5%-95% non-condensing
