190W Power Waterproof IP64 UAV Jammer with 2km Range for Outdoor Anti-Drone Signal Blocking

1
MOQ
Please consult a sales engineer
Price
190W Power Waterproof IP64 UAV Jammer with 2km Range for Outdoor Anti-Drone Signal Blocking
Features Gallery Product Description Chat Now
Features
Specifications
Jamming Radius: 1000-3000 Meters
Output Power: Total 190W
Power Consumption: 380W
Waterproof Rating: IPX64
Operating Temperature: -40℃ To 75℃
Dimensions: 53×41×23cm
Highlight:

190W Power UAV Jammer

,

2km Range Drone Signal Jammer

,

Waterproof IP64 Anti-Drone Device
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-WDJ05
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description

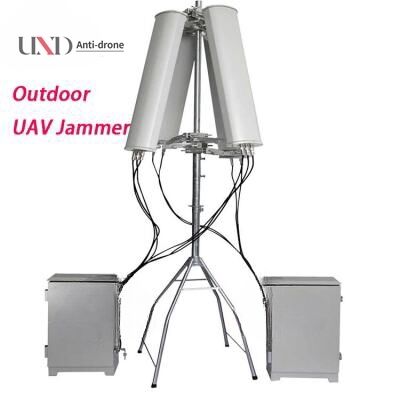

Waterproof UAV Drone Signal Jammer 190W 2km Range
This outdoor anti-UAV drone signal jammer model U-WDJ05 features a waterproof IP64-rated system with network monitoring capabilities. It effectively blocks 2.4G, 5.8G, and GPS signals with a powerful 190W output. Combined with high-gain directional antennas for each frequency band, it provides a shielding radius of 1000 to 3000 meters depending on environmental conditions and signal strength.
Key Features
  • Ultra-high power 190W output with high-gain directional antennas
  • 3-channel or multi-channel signal shielding with IP64 protection
  • Separate frequency RF modules with individual switch control
  • Efficient heat dissipation system for continuous operation
  • Optional monitoring software with PC and mobile app control
  • VSWR protection with power supply protection box
  • Advanced lightning protection system
  • Only affects downlink signals without interfering with base stations
Technical Specifications
Model U-WDJ05
Jamming Radius 1000-3000 meters
Output Power Total 190W
Standard Frequencies GPS L1: 1560-1620MHz
WiFi 2.4G: 2400-2485MHz
WiFi 5.8G: 5725-5850MHz
Power Consumption 380W
Dimensions 53×41×23cm
Waterproof Rating IPX64
Operating Temperature -40℃ to 75℃
Antenna Specifications
Dimensions 124×28×8cm (Customizable)
Gain 16±1dBi (Customizable)
VSWR ≤1.5
Polarization Vertical
Input Power 100W per connector
Wind Resistance 60m/s

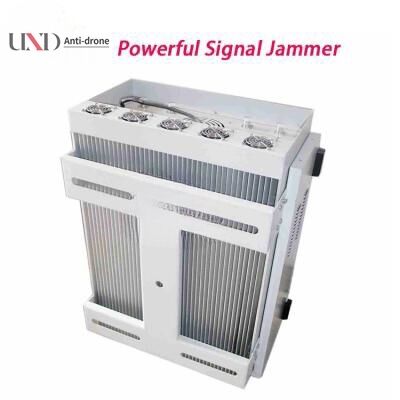

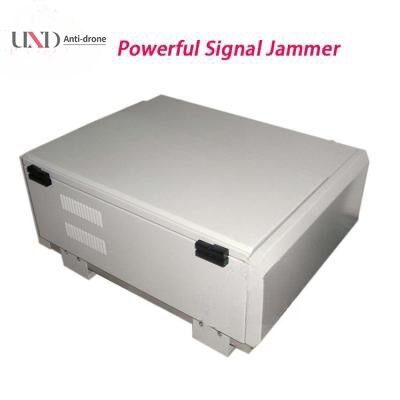

Main Engine Features
  • IP64-rated aluminum alloy construction with hinge lock protection
  • N-type connectors for antenna connection
  • Built-in fan and fin cooling system
  • Individual module design for frequency-specific control
  • LED status indicators and protection systems
  • Directional or omnidirectional antenna options
Optional Frequency Modules
Available in various power outputs (10W, 20W, 30W, 40W, 50W, 100W) for customized frequency requirements including CDMA/GSM, 3G/4G/LTE, WiMAX, VHF/UHF, and specialized radio control bands.
Note: Ensure antenna is properly connected before powering on the device. Performance range varies based on environmental conditions and signal strength.
