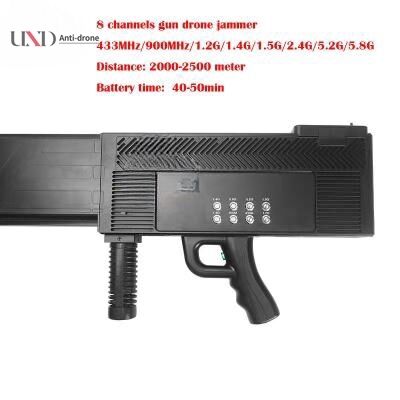

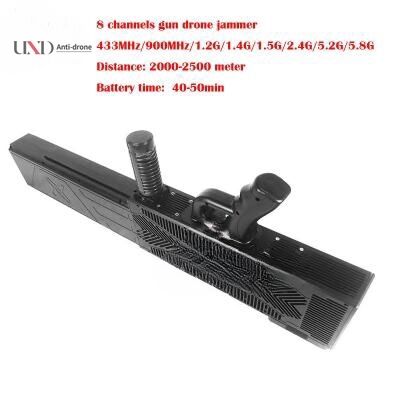

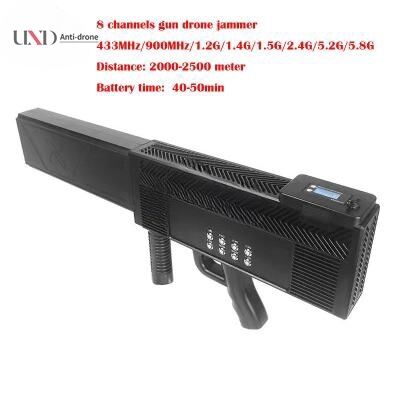

200W High Power 8 Bands Drone Signal Jammer with 2000-2500m Range Anti Drone Jammer

1
MOQ
Please consult a sales engineer
Price
200W High Power 8 Bands Drone Signal Jammer with 2000-2500m Range Anti Drone Jammer
Features Gallery Product Description Chat Now
Features
Specifications
Size: 820×300×80mm
Weight: 6.45kg
Effective Range: 2000-2500 Meters (depends On Real Environment)
Application: Airport,Lab Testing / Signal Jammer,Signal Jammer,conference,Control Drone By GPS/GALILEO/GLONASS
Warranty: 1 Year
Color: Black
Highlight:

200W High Power Drone Signal Jammer

,

8 Bands Anti Drone Jammer

,

2000-2500m Range UAV Jammer

Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-UAV-SJ084
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
8 Bands 200W High Power Long Distance Gun Anti-Drone Signal Jammer Blocker
Introducing the Drone Signal Jammer, the ultimate gun-type blocker specifically designed to protect your airspace from drones. This powerful 200W device is capable of jamming and blocking most drone signals on the market, giving you the power to take back control. With its high-performance design, 6.45kg weight, and -40ºC to +65ºC operating temperature range, this drone signal jammer is the perfect solution for securing your airspace from unwanted drones.
Key Features
Product Name: Drone Signal Jammer
Jamming Range: 2000-2500 meters
Type: Gun Type
Relative Humidity: 35~85%
Battery Working Time: 40-50 minutes
Operating Temperature: -40ºC to +65ºC
Operation Instructions
1. Check the LCD screen to ensure the jammer is fully charged
2. Choose the frequency band to jam and press the button
3. Target the drone gun at the flying drone in the sky
4. Drone will be forced to return home or land immediately
Recommended Channels: Pressing the channels below provides effective jamming for 95% of drones in the market:
• 2.4 GHz Channel
• 5.8 GHz Channel
• 1.5 GHz Channel
Technical Specifications
Model No. U-UAV-SJ084
Size 820×300×80mm
Weight 6.45kg
Effective Range 2000-2500 meters (depends on real environment)
Frequency & Output Power 410-485 MHz (433 MHz) 10W
840-920 MHz (900 MHz) 10W
1100-1280 MHz (1.2 GHz) 10W
1300-1390 MHz (1.4 GHz) 10W
1560-1620 MHz (1.5 GHz) 30W
2400-2500 MHz (2.4 GHz) 50W
5150-5350 MHz (5.2 GHz) 30W
5725-5850 MHz (5.8 GHz) 50W
Total: 200W
Inside Antenna Gain 433MHz / 5dBi
2400MHz / 14dBi
2400MHz / 14dBi
GPSL1-L5 (1.2G/11dBi, 11.5G/12dBi)
5800MHz / 16dBi
5200MHz / 16dBi
900MHz / 9dBi
Power Supply 24V 10A inside lithium-ion battery (can be designed to connect external battery)
Recommended Applications
To avoid the rapidly emerging threat by UAVs, our jammer can be used in the following locations:
• Government: Prison, Court, Military, Police, Law Enforcement
• Infrastructure: Petrol Station, Oil Depot, Gas Station, Airport, Security Agencies
• Public Events: Stadiums, Important Meetings, Large Gatherings
• Transportation: Ports, Marine, Superyachts
• Institutional: Detention Centers, Schools, Theaters, Churches, Hospitals
• Personal: VIP Protection, Privacy Security
Important Safety Caution
1. All bands open simultaneously will consume large power; use for less than 5 minutes to extend battery life
2. Fully charge the jammer before use
3. Ensure the jamming frequency is suitable for your specific needs
4. Forbidden to use while charging
5. Barriers between the UAV and jammer will influence jamming distance
Package Contents
• 1 × Drone Jammer
• 1 × Battery
• 1 × Charger
* User manual provided online
