Backpack Drone Signal Jammer with 150W High Power 1.5km Jamming Range and Built-In Battery for UAV Blocking

1
MOQ
Please consult a sales engineer
Price
Backpack Drone Signal Jammer with 150W High Power 1.5km Jamming Range and Built-In Battery for UAV Blocking
Features Gallery Product Description Chat Now
Features
Specifications
Application: Airport,Lab Testing / Signal Jammer,Signal Jammer,conference,Control Drone By GPS/GALILEO/GLONASS
Material: Aluminum And Cooper,Plastic
Size: Middle Size,320*200*460mm,76*20*26cm,37.5*29*10cm
Control Distance: 1000 Meters,>500m
Dimension: 210*110*25 (mm)
Power Supply: AC-220V/DC-48V,48V / 110V / 220V
Highlight:

150W High Power Drone Signal Jammer

,

1.5km Jamming Range UAV Jammer

,

Built-In Battery Anti-Drone Device
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-DJ03-Plus
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description

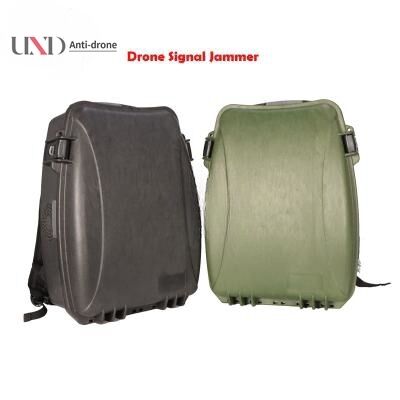

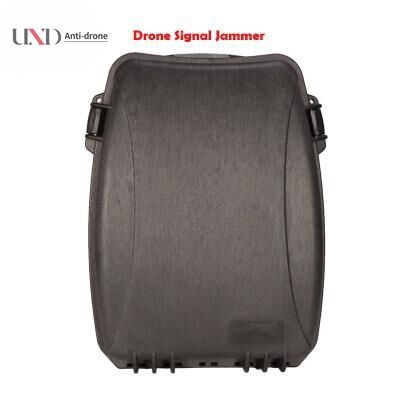

Backpack Drone Signal Blocker with GPS, WiFi & Built-In Battery
Professional backpack drone signal jammer designed for comprehensive UAV countermeasures. This industrial-grade device blocks 400MHz, 900MHz, GPS, and WiFi frequencies (2.4G & 5.8G) with 150W total output power and a jamming radius of up to 1.5km.
Product Overview
Our backpack UAV drone jammer features built-in battery operation, supporting 1.5 hours of continuous use after a 5-hour charge. The system operates on 90-260V AC or 12/24V DC power with VSWR monitoring for optimal performance.
Key Features
  • Blocks 400MHz, 900MHz, GPS, WiFi 2.4G, and WiFi 5.8G frequencies (customizable)
  • 150W high power output with 1500m effective range
  • 4 omnidirectional high-gain antennas (6-8 dBi), one per frequency band
  • Built-in battery provides 1.5 hours operation after 5-hour charge
  • Supports 90-260V AC and DC 12/24V power inputs
  • Compact design weighing only 18kg
  • OEM and ODM support with custom branding available
  • 12-month factory warranty
Technical Specifications
Version I: 3 Band, Omni Antenna + Directional Antenna
Frequency Band, MHz Power (W) ±1.5dB
1559-1610 47dBm (50W)
2400-2500 47dBm (50W)
5725-5875 44dBm (25W)
Version II: 4 Band, Omni Antenna + Directional Antenna
Frequency Band, MHz Power (W) ±1.5dB
902-928 47dBm (50W)
1559-1610 47dBm (50W)
2400-2500 47dBm (50W)
5725-5875 44dBm (25W)
Version III: 5 Band, Omni Antenna + Directional Antenna
Frequency Band, MHz Power (W) ±1.5dB
1559-1610 47dBm (50W)
2400-2500 47dBm (50W)
2400-2500 47dBm (50W)
5725-5875 44dBm (25W)
5725-5875 44dBm (25W)
Version IV: 5 Band, Omni Antenna + Directional Antenna
Frequency Band, MHz Power (W) ±1.5dB
428-438 47dBm (25W)
902-928 47dBm (30W)
1559-1610 47dBm (30W)
2400-2500 47dBm (30W)
5725-5875 44dBm (25W)
Applications
Counter drone solutions and anti-drone systems for military bases, police and prison systems, government facilities, oil depots, agricultural operations, plant protection, building security, and water resource protection.
Package Contents
  • 1 Backpack unit
  • 4 omnidirectional antennas or 1 directional panel antenna
  • 1 remote control with command cable
  • 1 jammer antenna with built-in trigger and indicator
  • 4 RF cables and 1 command cable
