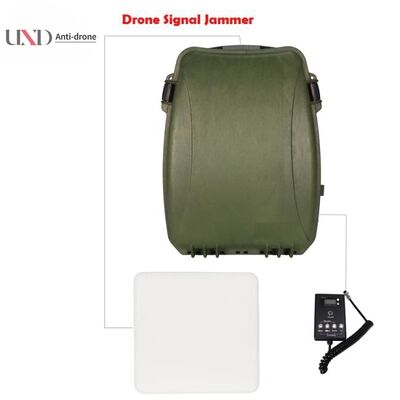

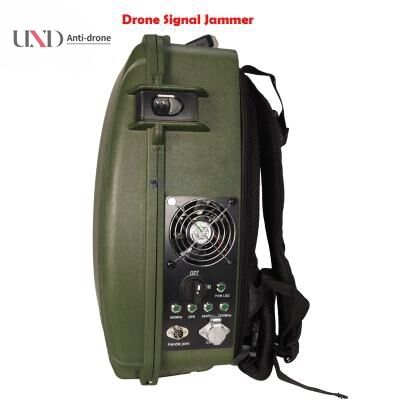

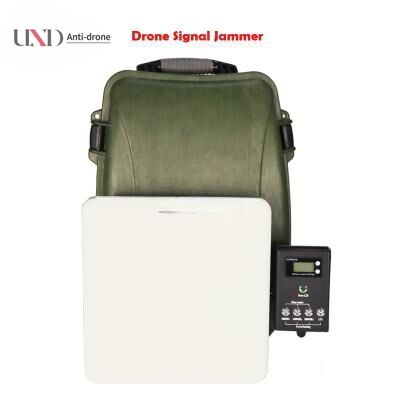

1500m Distance Backpack Drone Signal Jammer with 200W High Power and Wide Frequency Coverage

1
MOQ
Please consult a sales engineer
Price
1500m Distance Backpack Drone Signal Jammer with 200W High Power and Wide Frequency Coverage
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Temperature: -20°C To +65°C
Relative Humidity: 5%-95% Non-condensing
Operational Power: 90-260 VAC / 24V DC Internal Power Supply
Batteries: Internal Li-Ion 20AH
Cooling: Forced Air Cooling
Color: Black
Highlight:

1500m Distance Drone Signal Jammer

,

200W High Power UAV Jammer

,

Wide Frequency Coverage Anti-Drone Device
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-DJ03-Plus
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
1500m Distance Backpack Drone Signal Scrambler
High-power industrial drone signal jammer with wide frequency coverage up to 200W VSWR, designed for maximum range and reliability.
Product Overview
This professional backpack drone jammer offers flexible band configurations (3, 4, or 5 bands) with comprehensive signal blocking capabilities including WiFi, GPS, 900MHz, and 400MHz frequencies. Engineered for maximum performance with high power output up to 200W.
Key Performance Specifications
Jamming Range: 500-800m (omnidirectional), 1000-1500m (directional)
Operating Time: 1.5 hours continuous operation after full charge
Weight: Less than 20kg (main unit with battery)
Available Colors: Green and Black
Product Features
  • Backpack design with high power output and 2km effective distance
  • Optional omnidirectional or directional antennas for flexible deployment
  • Built-in battery system for portable operation
  • Intuitive, easy-to-use controls
  • VSWR and thermal protection systems
  • Included flight case for secure transport
  • Custom frequency options available (OEM/ODM)
  • 1-year comprehensive warranty
Technical Specifications
Frequency Bands Output Power
1560-1610 MHz 50 W / 47±1.5dbm
2400-2500 MHz 50 W / 47±1.5dbm
5700-5900 MHz 25 W / 44±1.5dbm
902-928 MHz 50 W / 47±1.5dbm
Electrical Specifications
  • Protection: VSWR protection, Overheat Protection (70° cut off, 65° resume)
  • Operational Power: 90-260 VAC / 24V DC Internal Power Supply
  • Cooling: Forced Air Cooling
  • Controls & Indicators: On/Off switch & indicator + External wired remote control
  • Batteries: Internal Li-Ion 20AH
Mechanical & Environmental
  • Deployment: Rapid Deployment/Mobile
  • Casing: Rigidized backpack
  • Operating Temperature: -20°C to +65°C
  • Resistance: IP52 rated
  • Relative Humidity: 5%-95% non-condensing
Package Contents
  • 1x Backpack unit
  • 4x Omnidirectional antennas OR 1x Directional Panel Antenna
  • 1x Remote control with command cable
  • 1x Jammer antenna with built-in trigger and indicator
  • 4x RF cables and 1x command cable
All specifications subject to change without notice. Contact manufacturer for custom configuration options.
