Home /Products/Drone Jammer/10KM Long Distance Directional Drone Signal Jammer Anti UAV System with IP66 Waterproof Protection

10KM Long Distance Directional Drone Signal Jammer Anti UAV System with IP66 Waterproof Protection

1
MOQ
Please consult a sales engineer
Price
10KM Long Distance Directional Drone Signal Jammer Anti UAV System with IP66 Waterproof Protection
Features Gallery Product Description Chat Now
Features
Specifications
Power Consumption: 5,000 W (including Cloud Platform And Jammer)
Weight: 150kg (including Cloud Platform And Jammer)
Operating Temperature: -20ºC To +70ºC
Relative Humidity: Monthly Maximum 95% (minimum Temperature 25ºC)
Altitude: ≤2500m
Power Supply: 220V 50Hz
Highlight:

10KM Long Distance Drone Signal Jammer

,

Directional Anti UAV System

,

IP66 Waterproof Drone Jammer
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-UAV-JM001
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description

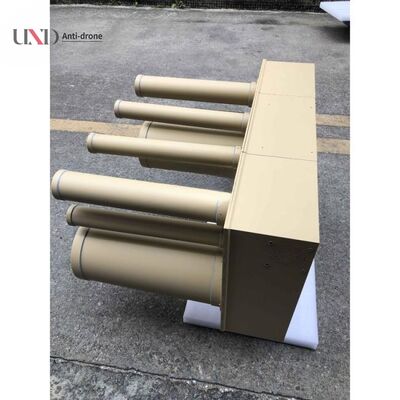

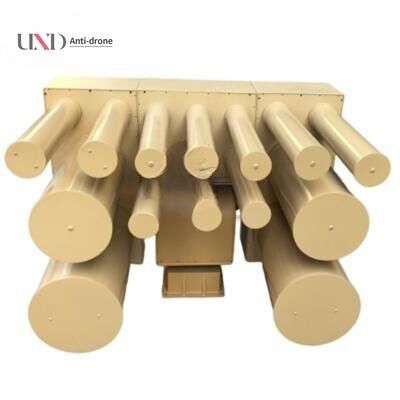

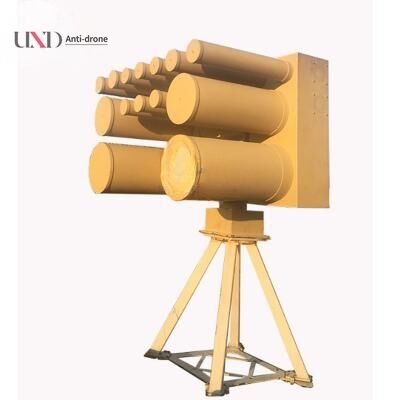

Radar 10KM Long Distance Directional Drone Jammer Anti UAV System
This advanced anti-drone jamming system is engineered for military applications, featuring comprehensive cloud platform integration and high-performance jamming equipment. With exceptional power output, it achieves an impressive operational range of up to 8km. Built for outdoor deployment, the system boasts IP66 waterproof certification for reliable performance in various environmental conditions.
Key Features
  • Long-range coverage: Up to 8km operational distance
  • Multi-frequency jamming: 400MHz, 800MHz, 900MHz, GPS, WiFi 2.4G, and WiFi 5.8G
  • Customizable frequencies available upon request
  • Robust construction: IP66 waterproof rating for outdoor use
  • Advanced targeting: Precise directional control with helical antennas
Applications
Ideal for securing critical infrastructure including oil and gas reservoirs, chemical industry parks, prisons, and government facilities. Also effective for protecting large-scale public events from unauthorized drone intrusion.
Technical Specifications
Parameter Specification
Coverage ≥8km
Interference Frequency Bands 430-470MHz, 830-940MHz, 1200-1300MHz, 1560-1620MHz, 2400-2500MHz, 5725-5850MHz
Beamwidth / Gain 430-470MHz: >40°/6dBi
800-1620MHz: >30°/8dBi
2400-2450MHz: >40°/11dBi
5725-5850MHz: >40°/11dBi
Frequency Power Range 430-470MHz: 53dBm
800-1620MHz: 53dBm
2400-2450MHz: 50dBm
5725-5850MHz: 50dBm
Transmitting Antenna Type Helical Antenna
Maintenance Features Power-on self-inspection and fault reporting
Rotation Speed Horizontal: 0.01°~30°/S
Pitch: 0.01°~10°/S (continuous variable speed)
Rotation Angle Horizontal: 360° continuous
Pitch: -10°~70°
Preset Positions 200
Positioning Accuracy ±0.1°
Repeatability Precision ±0.1°
Communication Interface RJ45
Power Consumption 5,000 W (including cloud platform and jammer)
Weight 150kg (including cloud platform and jammer)
Carrying Mode Top load / Side load
Driving Mode Turbine Worm Drive
Protection Level IP66
Operating Temperature -20ºC to +70ºC
Storage Temperature -40ºC to +75ºC
Relative Humidity Monthly maximum 95% (minimum temperature 25ºC)
Altitude ≤2500m
Power Supply 220V 50Hz
Vibration & Impact Standards GJB150.16A-2009; GJB150.18A-2009
Frequently Asked Questions
Are you a factory or a trading company?
We are a leading factory of mobile signal jammers in China.
What is your minimum order quantity? Are samples available?
Yes, samples are available for purchase.
What shipping methods do you offer?
DHL, UPS, FedEx, TNT, EMS, Aramex and other major carriers.
What are your payment terms?
Bank Transfer (TT), Western Union, PayPal, and other secure payment methods.
What is the warranty period?
12 months warranty from shipment date.
What is your delivery time?
3 working days after payment confirmation.
How long until I receive my order?
8-12 days after shipment.
