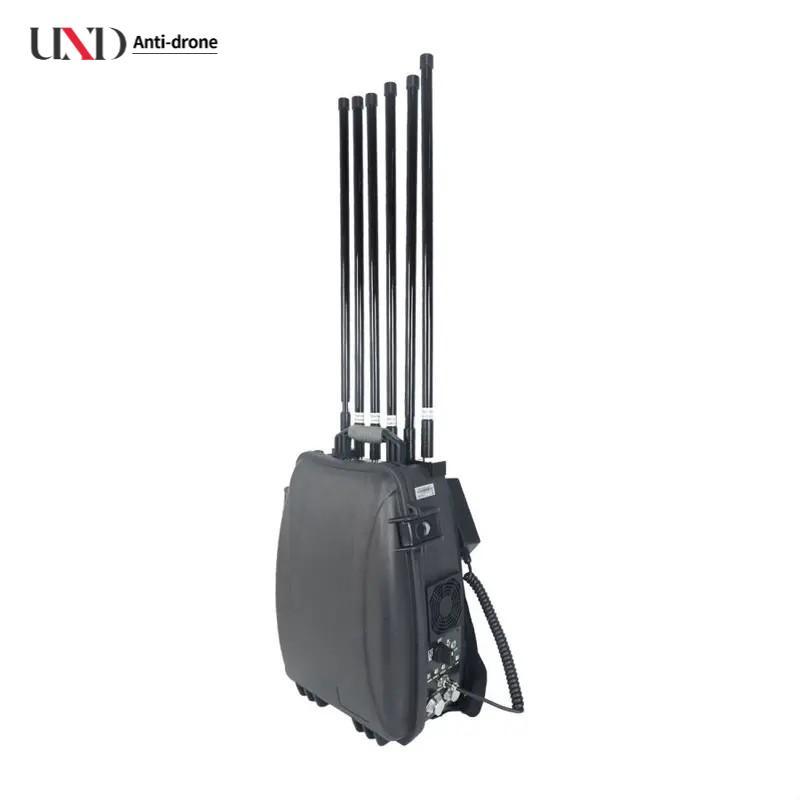

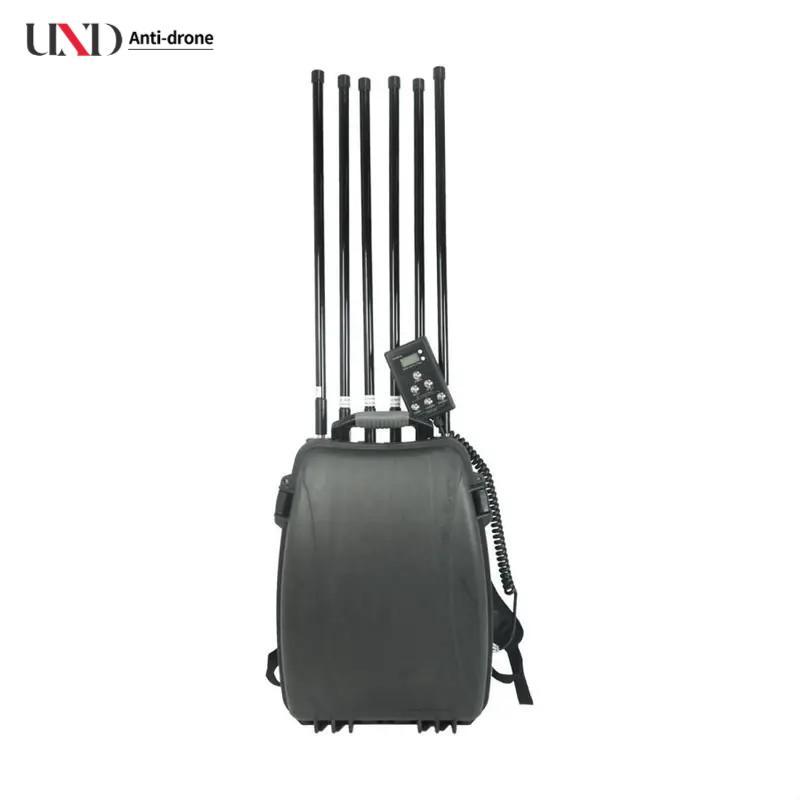

300W Power 1500 Meters Range 6 Channels UAV Drone Jammer Anti Drone Device

1
MOQ
Please consult a sales engineer
Price
300W Power 1500 Meters Range 6 Channels UAV Drone Jammer Anti Drone Device
Features Gallery Product Description Chat Now
Features
Specifications
Power Consumption: 600W
Power Supply: AC-220V/DC-48V
Main Unit Weight: 16.8Kg
Dimensions: 350*190*490mm
Humidity Range: 30%-95%
Operating Temperature: -20ºC To +70ºC
Highlight:

300W Power Drone Jammer

,

1500 Meters Range UAV Jammer

,

6 Channels Anti Drone Device
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-UAVBP15D
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
300W Long Range 6 Channels Anti Drone 1500 Meters 900MHz 1.2G 1.5G 2.4G 5.2G 5.8G UAV Drone Jammer 6 Band
6 Band 300W Long Range 6 Channels Anti Drone 1500 Meters 900MHz 1.2G 1.5G 2.4G 5.2G 5.8G UAV Drone Jammer
Technical Specifications
Channel Working Frequency Output Power (±1dBm)
900MHz 840-960MHz 47 dBm (50W)
2.4G 2400-2500MHz 47 dBm (50W)
5.2G 2400-2500MHz 47 dBm (50W)
5.8G 5150-5300MHz 47 dBm (50W)
GPS L1 1570-1620MHz 47 dBm (50W)
GPS L2 1150-1300MHz 47 dBm (50W)
System Specifications
Total Output Power: 300W
Power Consumption: 600W
Power Supply: AC-220V/DC-48V
Main Unit Weight: 16.8Kg
Dimensions: 350*190*490mm
Jammer Module Number: 6
Cooling System: Systematic Smart Cooling System
Jamming Source: Noise Technology
Humidity Range: 30%-95%
Operating Temperature: -20ºC to +70ºC

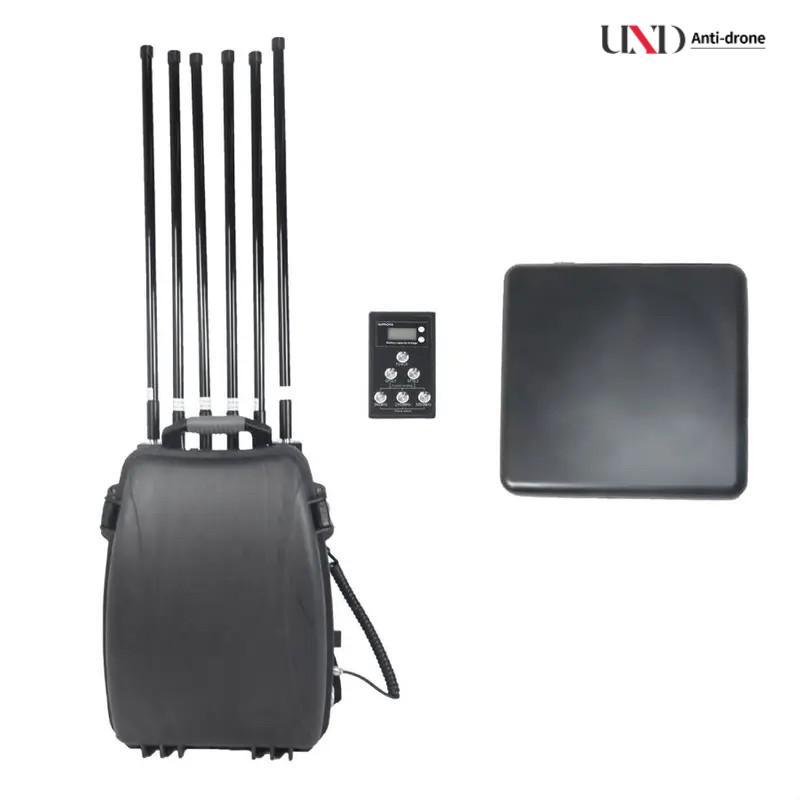

Antenna Options & Range
  • Directional panel antenna 10dBi (jamming range 0.8km-1.5km)
  • 6 omnidirectional antennas 7dBi (jamming range 100m-500m)
Battery & Control Features
Internal Battery Runtime: 1.5 hours at 24V, 24A
Battery Charger: 5A (Open external switch to charge, automatic current management, full auto-disconnect)
External Remote Control Panel: Displays battery voltage, enables individual band on/off switching
300W Power 1500 Meters Range 6 Channels UAV Drone Jammer Anti Drone Device 0
