Home /Products/Drone Jammer/350W Power 2KM Range Anti Drone Signal System with 6 Bands UAV Jammer

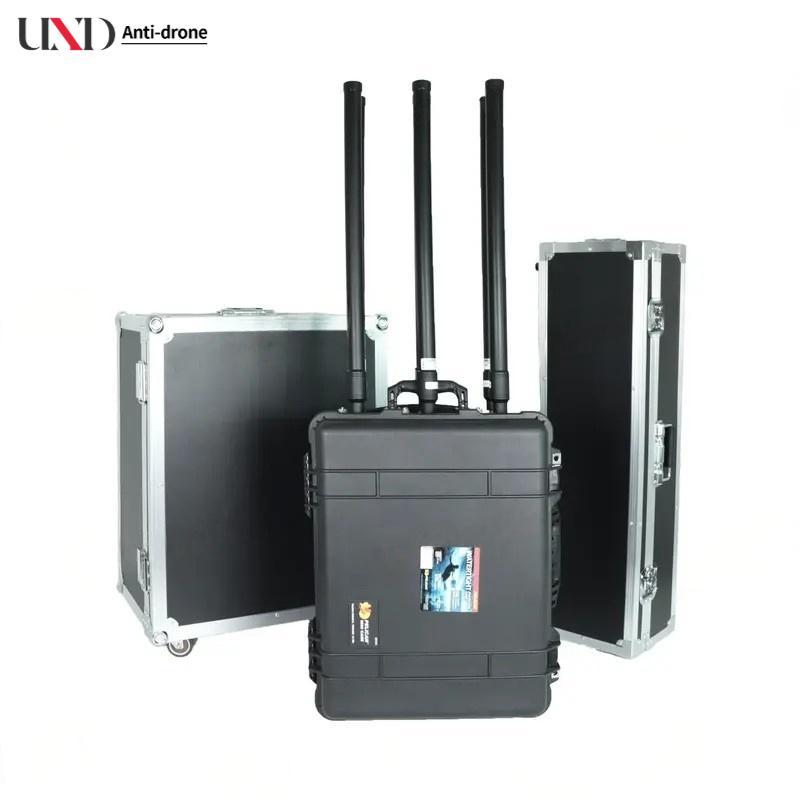

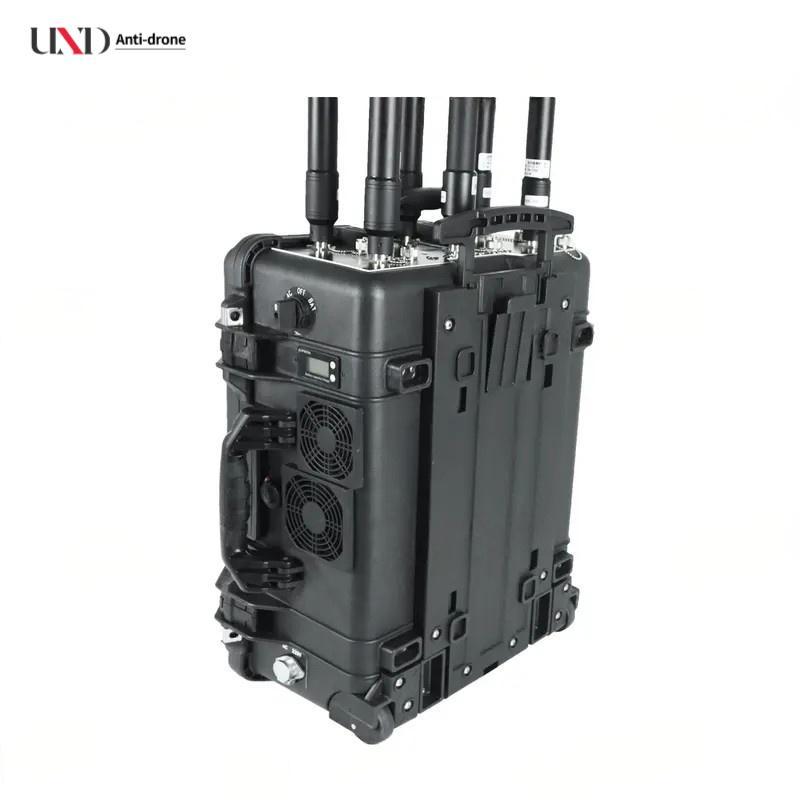

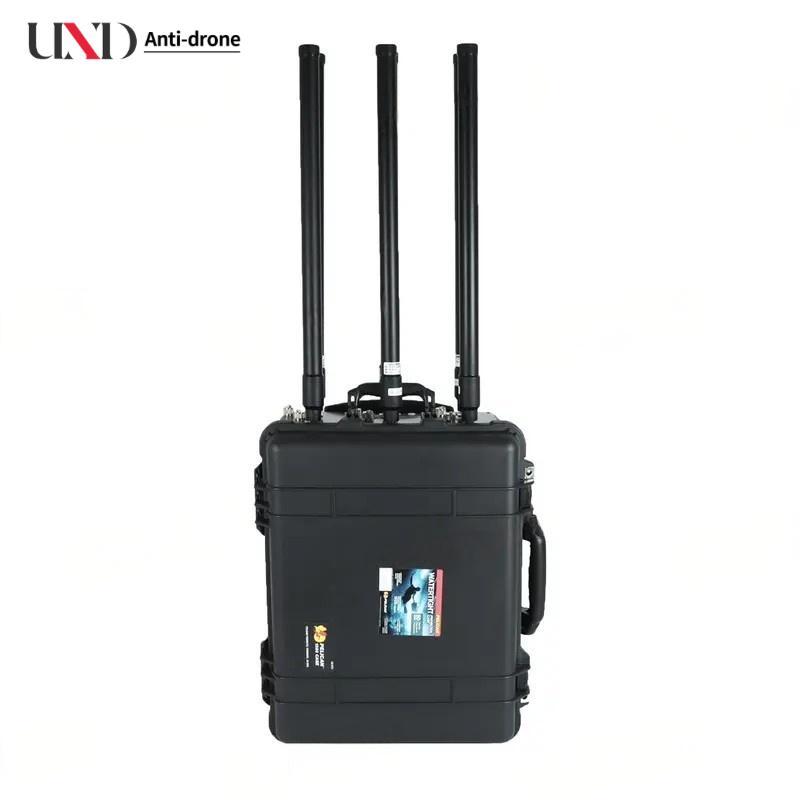

350W Power 2KM Range Anti Drone Signal System with 6 Bands UAV Jammer

1
MOQ
Please consult a sales engineer
Price
350W Power 2KM Range Anti Drone Signal System with 6 Bands UAV Jammer
Features Gallery Product Description Chat Now
Features
Specifications
Power Supply: AC220V
Frequency Range: 20-6000MHz
Gross Weight: 45Kg
Operating Temperature: -20ºC To +65ºC
Jamming Range: 500-2000m (depending On Signal Network Conditions)
Number Of Antennas: 6
Highlight:

350W Power Drone Jammer

,

2KM Range Anti Drone Signal System

,

6 Bands UAV Jammer
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-VIP-JAM6UAV
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Anti Drone Signal System 2KM Range 350W UAV Drone Jammer
Model: GW-VIP-JAM6UAV
System Overview
  • 6 independent modules - failure in one module doesn't affect others
  • Pelican case construction - shockproof and drop-resistant for harsh field environments
  • Compact design - device weight under 40kg
  • Continuous simultaneous interference against common remote control and phone signals
Applications
Sensitive Areas
Prisons
Oil Refineries
Military Bases
Protected Areas
Technical Specifications
Output Interface Description RF Output Power (±1.5dBm) Antenna
CH1 433MHz 47dBm (50W) Omni Antenna
CH2 860-930MHz 47dBm (50W) Omni Antenna
CH3 1170-1280MHz 47dBm (50W) Omni Antenna
CH4 2400-2500MHz 50dBm (100W) Omni Antenna
CH5 1560-1620MHz 47dBm (50W) Omni Antenna
CH6 5725-5850MHz 47dBm (50W) Omni Antenna
System Parameters
Power Supply: AC220V
Total Output Power: 350 Watt
Frequency Range: 20-6000MHz
Power Consumption: 800Watt
Gross Weight: 45Kg
Humidity Tolerance: Up to 80%
Operating Temperature: -20ºC to +65ºC
Jammer Modules: 6
Jamming Bands: 6 bands
Cooling System: 4 Cooling Fans
System Protection: VSWR, Over-voltage, Over-current
Jamming Source: Noise Technology
Antenna Type: High Gain Omni and Directional Antennas
Number of Antennas: 6
Power Supply (Optional): AC charging
Jamming Range: 500-2000m (depending on signal network conditions)
350W Power 2KM Range Anti Drone Signal System with 6 Bands UAV Jammer 0
Tag:

Drone Signal Jammer

Drone Signal Blocker

Drone Frequency Jammers
