1-10KM Detection Range 1-5KM Jamming Range 300-6200MHz Frequency Coverage Drone Jammer Anti-Drone System

1
MOQ
Please consult a sales engineer
Price
1-10KM Detection Range 1-5KM Jamming Range 300-6200MHz Frequency Coverage Drone Jammer Anti-Drone System
Features Gallery Product Description Chat Now
Features
Specifications
Detection Distance: 2～10km
Direction Finding Frequency Band: 2GHz～6GHz
Directional Accuracy: ~10°
Detection Mode: 360° Passive Detection
DF Refresh Rate: 10-30 Times/minute
Number Of Positioning Trajectories: ≥5 Sorties
Highlight:

1-10KM Detection Range Drone Jammer

,

1-5KM Jamming Range Anti-Drone System

,

300-6200MHz Frequency Coverage UAV Jammer
Basic Infomation
Place of Origin: China
Brand Name: UND
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description

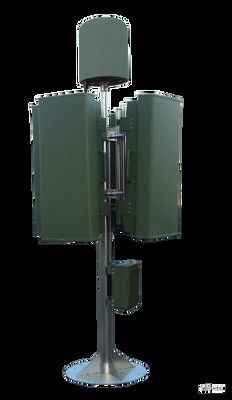

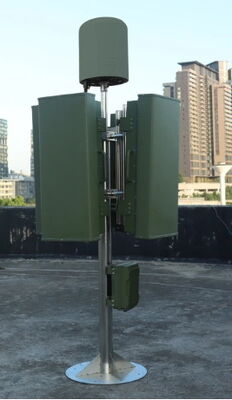

X1D-4JA Drone Detection & Jamming System
The X1D-4JA is a fixed-position system integrating drone detection, positioning, and jamming capabilities. It combines a drone detection device with a four-sided jamming array to provide comprehensive airspace security.
1-10KM Detection Range 1-5KM Jamming Range 300-6200MHz Frequency Coverage Drone Jammer Anti-Drone System 0
Detection System Technical Parameters
Parameter Specification Remarks
Detection Frequency Band 100MHz～6GHz
Detection Distance 2～10km
Number of Detection Targets ≥20 sorties Simultaneous detection
Detection Mode 360° Passive Detection
Direction Finding Frequency Band 2GHz～6GHz X1D
Direction Finding Distance ≥3km
Number of Direction Finding Targets ≥3 sorties Simultaneous tracking
Directional Accuracy ~10°
DF Refresh Rate 10-30 times/minute
Positioning Accuracy ≤20m
Number of Positioning Trajectories ≥5 sorties Simultaneous tracking
Scan Spectrum Range 100MHz～6GHz
Detectable Drone Models DJI, Autel, Fimi, Dahua, Yuneec, and most domestic models including walkthrough and WiFi drones
Jamming Array Technical Parameters
Parameter Specification Remarks
Jamming Range 1～5Km Depending on conditions
Control Method Web interface via computer connection
Connection Method DC power cable to control chassis or direct remote controller connection
Power Supply 220V AC via power adapter
Jamming Frequency Range & Power
Frequency Range Power
420MHz～480MHz 50W
650MHz～850MHz 50W
850MHz～950MHz 50W
1100MHz～1300MHz 50W
1300MHz～1500MHz 50W
2400MHz～2500MHz 100W
1550MHz～1620MHz 50W
5100MHz～5300MHz 50W
5720MHz～5860MHz 100W
The four-sided jamming array can be used as a standalone jamming unit or integrated with detection devices such as X1M, X1D, D2 (Detection + Positioning range 1~10Km) to enhance specific performance parameters.
Key Features & Capabilities
  • Full-Band Detection: Comprehensive detection coverage from 300MHz-6200MHz within a 1-10 km radius. Advanced drone signature database enables accurate identification of commercial drones, FPV drones, and DIY models while minimizing false alarms.
  • Embedded Jamming Module Design: Twelve frequency band jamming modules with integrated power supply and heat dissipation for powerful performance in a compact form factor.
  • High-Gain Directional Antennas: Four-sided array with directional antennas that enhance signal transmission strength for complete coverage.
  • Omnidirectional Jamming: Multi-sided coordination ensures deadlock-free electromagnetic coverage within a 1-5 km radius, even in complex environments.
  • Full-Band Coverage Jamming: Comprehensive jamming across all frequency bands used by commercial and FPV drones.
  • Automated Operation: Automatic jamming activation upon drone detection for expulsion or forced landing.
  • Fixed Deployment: Designed for permanent installation to protect core areas and critical infrastructure.
