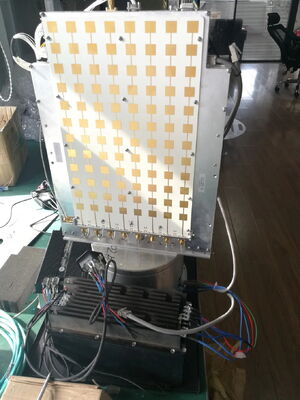

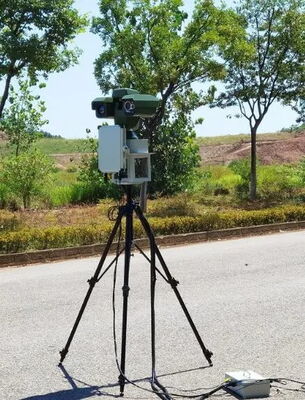

Active Phased Array Ground Surveillance Radar with C Band (5.5-5.8GHz), 360° Azimuth Coverage, and All-weather Adaptability

1
MOQ
Please consult a sales engineer
Price
Active Phased Array Ground Surveillance Radar with C Band (5.5-5.8GHz), 360° Azimuth Coverage, and All-weather Adaptability
Features Gallery Product Description Chat Now
Features
Specifications
Minimum Detection Range: ≤100m
Working Frequency: C Band (5.5-5.8GHz)
Detection Range: 2.5km (Pedestrians) 5km (Vehicles)
Target Detection Speed: 0.2m/s - 30m/s
Power Supply: AC220V/40W (Single Panel)
Working Temperature: -40°C To +60°C
Highlight:

C Band Ground Surveillance Radar

,

360° Azimuth Coverage Phased Array Radar

,

All-weather Adaptability Security Surveillance Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U 215-1C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Active Phased Array Detection Ground Surveillance Radar with U 215-1c
Product Overview
The U 215-1C is a C Band phased array ground surveillance radar featuring advanced technology and stable performance for detecting moving targets on the ground.
Key Features
  • High data rate and positioning accuracy
  • Multi-Input Multi-Output (MIMO) system
  • All-weather operational capability
Applications
Security surveillance for border protection, oil fields, prisons, and other critical areas.
Technical Specifications
Item Specification
Working mode Phased array + Pulse Doppler
Working frequency C band (5.5-5.8GHz)
Detection range 2.5km (Pedestrians)
5km (Vehicles)
Minimum detection range ≤100m
Azimuth coverage Single panel: 90° (Dual panel:180°, 3-panel:270°, 4-panel:360°)
Elevation coverage 9°
Distance accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target detection speed 0.2m/s - 30m/s
Speed precision ≤0.2m/s
Data rate ≤1.5s
Net weight ≤4.8kg
Power supply AC220V/40W (Single panel)
Interface Ethernet (UDP protocol)
Dimension 432mm x 324mm x 79mm
Working temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
