Home /Products/Drone Jammer/Backpack 140W Power 2km Range UAV Jammer with 2.4G 5.8G GPS Block Anti-Drone System

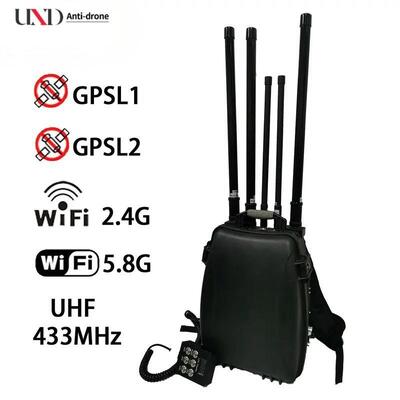

Backpack 140W Power 2km Range UAV Jammer with 2.4G 5.8G GPS Block Anti-Drone System

1
MOQ
Please consult a sales engineer
Price
Backpack 140W Power 2km Range UAV Jammer with 2.4G 5.8G GPS Block Anti-Drone System
Features Gallery Product Description Chat Now
Features
Specifications
Main Unit Weight: 16.8Kg
Size: 350×190×490mm
Humidity: 30%-95%
Battery Runtime: 1.5 Hours (24V, 24A)
Power Supply: AC90-260V, DC24-28V
Total Output Power: 140W
Highlight:

140W Power Drone Jammer

,

2km Range UAV Jammer

,

2.4G 5.8G GPS Block Anti-Drone System
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-UAV-BP15PRO
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Backpack 140W 2km WiFi UAV Drone Jammer 2.4G 5.8G
Product Overview
The U-UAV-BP15Pro Backpack Drone Jammer is the ultimate anti-drone solution designed for security applications. This safe, easy-to-operate device provides effective drone signal disruption for residential, commercial, airport, and military installations. Using focused electronic countermeasures, it blocks drone control, GPS, and video signals while minimizing interference with other local devices.
Key Features
  • High integration with stable operation and noise technology
  • Highly effective power with jamming distance up to 2km
  • Separate control of each module for convenient operation
  • High-quality tubular radiator for effective heat dissipation
  • Import components with VSWR and overheat protection
  • No interference to nearby frequency bands
  • Safe operation - causes no harm to drones or operators
Technical Specifications
Channel Working Frequency Output Power (±1dBm)
2.4G 5725-5850MHz 44 dBm (25W)
2.4G 2400-2500MHz 45 dBm
5.8G 5725-5850MHz 44 dBm
GPS L1 1570-1620MHz 45 dBm
GPS L2 2400-2500MHz 45 dBm

Total Output Power: 140W

Power Consumption: 400W

Power Supply: AC90-260V, DC24-28V

Main Unit Weight: 16.8Kg

Size: 350*190*490mm

Antenna Options: Directional panel antenna 10dBi (2km-2.5km range) or 5 omni antennas 7dBi (1.5km-2km range)

Jammer Modules: 5

Cooling System: Systematic Smart Cooling System

Jamming Source: Noise Technology

Humidity: 30%-95%

Operating Temperature: -20°C to +70°C

Battery Runtime: 1.5 hours (24V, 24A)

Battery Charger: 5A with automatic current management and full charge disconnect

External Remote Control: Displays battery voltage with individual band on/off switching

OEM Customization Service
Silkscreen OEM services available for custom branding requirements.
Backpack 140W Power 2km Range UAV Jammer with 2.4G 5.8G GPS Block Anti-Drone System 0
Note: This device disrupts 2.4GHz and 5.8GHz frequencies used by commercial drones for control and video transmission, causing drones to return to their home location without causing damage.
