Home /Products/Ground Surveillance Radar/Ground Surveillance Radar with 5km Detection Range, Phased Array + Pulse Doppler Technology, and All-Weather Adaptability for Security Surveillance

Ground Surveillance Radar with 5km Detection Range, Phased Array + Pulse Doppler Technology, and All-Weather Adaptability for Security Surveillance

1
MOQ
Please consult a sales engineer
Price
Ground Surveillance Radar with 5km Detection Range, Phased Array + Pulse Doppler Technology, and All-Weather Adaptability for Security Surveillance
Features Gallery Product Description Chat Now
Features
Specifications
Minimum Detection Range: ≤100m
Detection Range: 2.5km (Pedestrians) 5km (Vehicles)
Working Frequency: C Band (5.5-5.8GHz)
Target Detection Speed: 0.2m/s - 30m/s
Power Supply: AC220V/40W (Single Panel)
Net Weight: ≤4.8kg
Highlight:

5km Detection Range Ground Surveillance Radar

,

Phased Array + Pulse Doppler Security Surveillance Radar

,

All-Weather Adaptability Phased Array Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Vehicle Detection Ground Surveillance Radar with 5km Detection Range

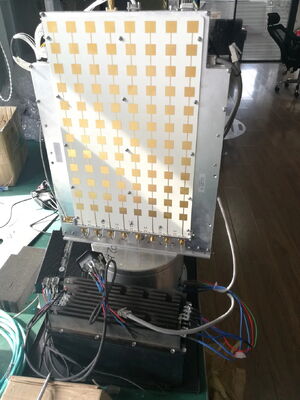

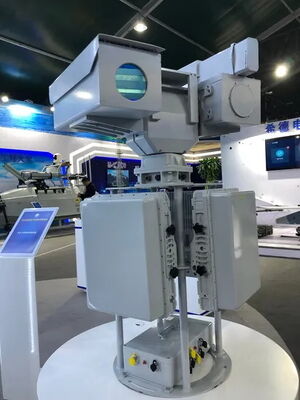

Ground Surveillance Radar - U 215-1C / C Band

The U 215-1C is a phased array radar system featuring advanced technology and stable performance for detecting moving targets on the ground.

Key Features
  • High data rate and positioning accuracy
  • Multi-Input Multi-Output (MIMO) system
  • All-weather operational capability
Applications
Security surveillance for border areas, oil fields, prisons, and other critical locations.
Technical Specifications
Item Specification
Working mode Phased array + Pulse Doppler
Working frequency C band (5.5-5.8GHz)
Detection range 2.5km (Pedestrians)
5km (Vehicles)
Minimum detection range ≤100m
Azimuth coverage Single panel: 90° (Dual panel: 180°, 3-panel: 270°, 4-panel: 360°)
Elevation coverage 9°
Distance accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target detection speed 0.2m/s - 30m/s
Speed precision ≤0.2m/s
Data rate ≤1.5s
Net weight ≤4.8kg
Power supply AC220V/40W (Single panel)
Interface Ethernet (UDP protocol)
Dimension 432mm x 324mm x 79mm
Working temperature -40°C ~ +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
Ground Surveillance Radar with 5km Detection Range, Phased Array + Pulse Doppler Technology, and All-Weather Adaptability for Security Surveillance 0
Tag:

Ground Radar System

Ground Security Radar

Compact Surveillance Radar
