2KM Range 140W Power GPSL1 Signal Drone Jammer UAV Anti-Drone System with WiFi 2.4G 5.8G Jamming

1
MOQ
Please consult a sales engineer
Price
2KM Range 140W Power GPSL1 Signal Drone Jammer UAV Anti-Drone System with WiFi 2.4G 5.8G Jamming
Features Gallery Product Description Chat Now
Features
Specifications
Total Power Output: 75 Watts
Charging Time: 2 Hours
Operating Temperature: -15°C To +75°C
Weight: Approximately 16 Kg
Jamming Range (Directional): 1000-1500 Meters
Frequency Bands: 5 Bands (1570-1620MHz, 2300-2500MHz, 5500-5900MHz, 433MHz, 915MHz)
Highlight:

2KM Range Drone Jammer

,

GPSL1 Signal UAV Jammer

,

140W Power Anti-Drone System

Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-UAV-BP15PRO
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
2KM GPSL1 Signal 140W WiFi 2.4G 5.8G GPS UAV Drone Jammer

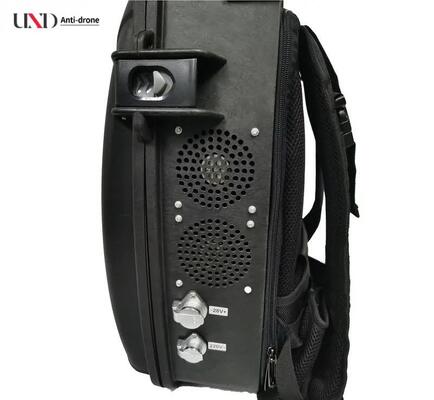

The U-UAV-BP15Pro backpack drone jammer provides comprehensive anti-drone protection with a 2km range. This professional-grade system safely disrupts five critical frequencies used by commercial drones, offering flexible operational modes for various security scenarios.
Primary Function: Effective interference with UAV remote-control signals (2400MHz), GPS L1 signals, and transmission signals (5800MHz). Operators can choose to force drones to land or return to their operator.
Key Features
  • High integration with stable operation and advanced noise technology
  • Highly effective power output with jamming distance up to 2km
  • Separate control of each module for convenient operation
  • High-quality tubular radiator for effective heat dissipation
  • Premium imported components with VSWR and overheat protection
  • No interference to nearby frequency bands
Applications
  • Sensitive Areas
  • Prisons
  • Oil Refineries
  • Military Bases
  • Protected Areas
Technical Specifications
Parameter Specification
Jamming Range (Omni-directional) 500-800 meters
Jamming Range (Directional) 1000-1500 meters
Total Power Output 75 Watts
Frequency Bands 5 bands (1570-1620MHz, 2300-2500MHz, 5500-5900MHz, 433MHz, 915MHz)
Antennas 5 omni-directional high gain antennas + 5 directional high gain antennas
Battery Operation 1.5 hours continuous jamming / 48 hours standby
Charging Time 2 hours
Weight Approximately 16 kg
Operating Temperature -15°C to +75°C
Environmental Protection IP52 rated, water-resistant backpack casing
Cooling System Forced air cooling
Frequency Band Details
1570-1620 MHz: GPS L5 & Glonass L1, Galileo - 15W output
2300-2500 MHz: WiFi 11 b,g - 15W output
5500-5900 MHz: WiFi 11.a - 15W output
433 MHz: 15W output
915 MHz: 15W output
Safety & Protection Systems
VSWR protection with automatic antenna disconnect/short circuit protection
Overheat protection: 75°C operation cutoff, 71°C operation resume
No harm to drones or operators during operation
