Home /Products/Ground Surveillance Radar/C Band (5.5-5.8GHz) Ground Surveillance Radar with 360° Surveillance and All-Weather Adaptability for Perimeter Detection

C Band (5.5-5.8GHz) Ground Surveillance Radar with 360° Surveillance and All-Weather Adaptability for Perimeter Detection

1
MOQ
Please consult a sales engineer
Price
C Band (5.5-5.8GHz) Ground Surveillance Radar with 360° Surveillance and All-Weather Adaptability for Perimeter Detection
Features Gallery Product Description Chat Now
Features
Specifications
Working Frequency: C Band (5.5-5.8GHz)
Detection Range: 2.5km (Pedestrians) 5km (Vehicles)
Azimuth Coverage: 4-panel: 360°
Target Detection Speed: 0.2m/s - 30m/s
Power Supply: AC220V/160W
Dimensions: 580mm X 580mm X 820mm
Highlight:

C Band Ground Surveillance Radar

,

360° Surveillance Security Surveillance Radar

,

All-Weather Adaptability Phased Array Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U 215-4C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Microwave Ground Surveillance Radar Sensor for Perimeter Detection
U 215-4C / C band security surveillance radar is a phased array radar system designed for detecting ground moving targets with 360° surveillance capability. This advanced system is engineered to perform reliably in harsh environmental conditions.
Advanced Radar Technology

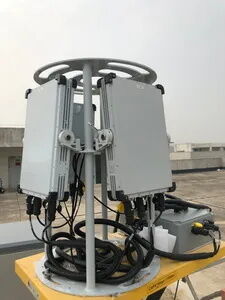

The U 215-4C utilizes the same advanced phased array technology as the U 215-1C model, but features an integrated system of four U 215-1C radars working in unison for comprehensive coverage and enhanced performance stability.
Key Features
  • High data rate and superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
Applications
Border security, oil field protection, prison perimeter monitoring, and other critical area surveillance applications.
Technical Specifications
Parameter Specification
Working Mode Phased array + Pulse Doppler
Working Frequency C band (5.5-5.8GHz)
Detection Range 2.5km (Pedestrians)
5km (Vehicles)
Minimum Detection Range ≤100m
Azimuth Coverage 4-panel: 360°
Elevation Coverage 9°
Distance Accuracy ≤5m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.2m/s - 30m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Net Weight ≤50kg
Power Supply AC220V/160W
Interface Ethernet (UDP protocol)
Dimensions 580mm x 580mm x 820mm
Working Temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
