Home /Products/Ground Surveillance Radar/C Band (5.5-5.8GHz) Ground Surveillance Radar with 360° Surveillance and 5km Vehicle Detection

C Band (5.5-5.8GHz) Ground Surveillance Radar with 360° Surveillance and 5km Vehicle Detection

1
MOQ
Please consult a sales engineer
Price
C Band (5.5-5.8GHz) Ground Surveillance Radar with 360° Surveillance and 5km Vehicle Detection
Features Gallery Product Description Chat Now
Features
Specifications
Working Frequency: C Band (5.5-5.8GHz)
Detection Range: 2.5km (Pedestrians) 5km (Vehicles)
Azimuth Coverage: 4-panel: 360°
Target Detection Speed: 0.2m/s - 30m/s
Power Supply: 220V
Working Temperature: -40°C To +60°C
Highlight:

C Band Ground Surveillance Radar

,

360° Surveillance Security Surveillance Radar

,

5km Vehicle Detection Phased Array Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U 215-4C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Middle Range Doppler Ground Surveillance Radar Sensor
Ground Surveillance Radar U 215-4C / C band

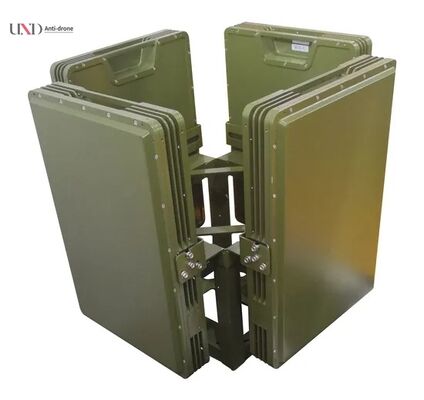

The U 215-4C is an advanced security surveillance radar system featuring the same phased array technology as the U 215-1C model, delivering superior performance and reliability for 360° ground moving target detection. This enhanced version integrates four U 215-1C radar units working in unison to provide comprehensive perimeter security coverage.

Key Features
  • High data rate and exceptional positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
Applications

Ideal for perimeter security surveillance in border areas, oil fields, prisons, and other critical infrastructure sites requiring reliable intrusion detection.

Technical Specifications
Parameter Specification
Working Mode Phased Array + Pulse Doppler
Working Frequency C Band (5.5-5.8GHz)
Detection Range 2.5km (Pedestrians)
5km (Vehicles)
Minimum Detection Range ≤100m
Azimuth Coverage 4-panel: 360°
Elevation Coverage 9°
Distance Accuracy ≤5m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.2m/s - 30m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Net Weight ≤50kg
Power Supply 220V
Interface Ethernet (UDP Protocol)
Dimensions 580mm × 580mm × 820mm
Working Temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
C Band (5.5-5.8GHz) Ground Surveillance Radar with 360° Surveillance and 5km Vehicle Detection 0
Tag:

Ground Radar System

Ground Security Radar

Compact Surveillance Radar
