360° Surveillance Phased Array Radar with 5km Vehicle Detection and All-Weather Adaptability for Ground Surveillance

1
MOQ
Please consult a sales engineer
Price
360° Surveillance Phased Array Radar with 5km Vehicle Detection and All-Weather Adaptability for Ground Surveillance
Features Gallery Product Description Chat Now
Features
Specifications
Minimum Detection Range: ≤100m
Azimuth Coverage: 4-panel: 360°
Working Frequency: C Band (5.5-5.8GHz)
Detection Range: 2.5km (Pedestrians) 5km (Vehicles)
Target Detection Speed: 0.2m/s - 30m/s
Power Supply: AC220V/160W
Highlight:

360° Surveillance Phased Array Radar

,

5km Vehicle Detection Ground Surveillance Radar

,

All-Weather Adaptability Security Surveillance Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U 215-4C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Intrusion Detection Active Phased Array Radar for Perimeter Protection Ground Surveillance Radar Alarm System
Ground Surveillance Radar U 215-4C / C Band

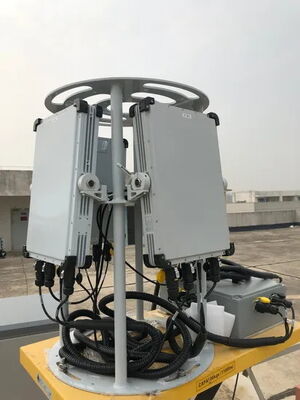

The U 215-4C is an advanced security surveillance radar system featuring phased array technology with exceptional stability and performance. Designed for comprehensive 360° surveillance of ground moving targets, this system integrates four U 215-1C radar units working in unison to provide superior coverage and detection capabilities.
Key Features
  • High data rate with superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
Applications
Ideal for perimeter protection and surveillance of critical infrastructure including border security, oil fields, prisons, and other high-security areas requiring reliable intrusion detection.
Technical Specifications
Item Specification
Working Mode Phased Array + Pulse Doppler
Working Frequency C Band (5.5-5.8GHz)
Detection Range 2.5km (Pedestrians)
5km (Vehicles)
Minimum Detection Range ≤100m
Azimuth Coverage 4-panel: 360°
Elevation Coverage 9°
Distance Accuracy ≤5m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.2m/s - 30m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Net Weight ≤50kg
Power Supply AC220V/160W
Interface Ethernet (UDP protocol)
Dimensions 580mm × 580mm × 820mm
Working Temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
