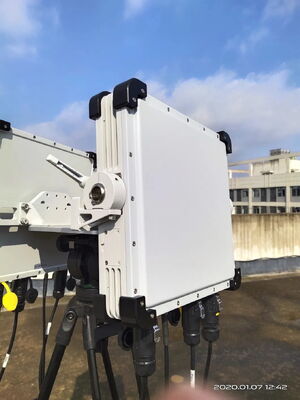

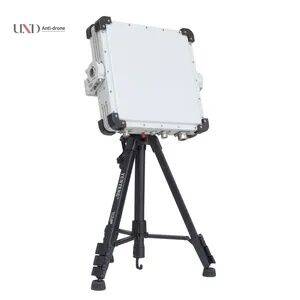

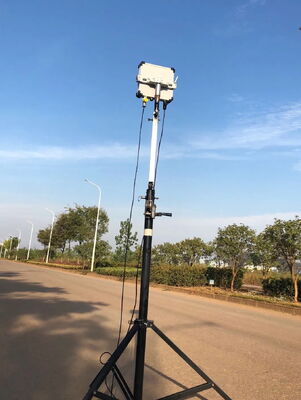

C-Band Ground Surveillance Radar with 1.5km Pedestrian Detection 3km Vehicle Detection and All-Weather Adaptability

1
MOQ
Please consult a sales engineer
Price
C-Band Ground Surveillance Radar with 1.5km Pedestrian Detection 3km Vehicle Detection and All-Weather Adaptability
Features Gallery Product Description Chat Now
Features
Specifications
Target Detection Speed: 0.2m/s - 30m/s
Elevation Coverage: 18°
Detection Range: 1.5km (Pedestrians) 3km (Vehicles)
Working Frequency: C Band (5.5-5.8GHz)
Dimension: 324mm X 295mm X 92mm
Working Temperature: -40°C To +60°C
Highlight:

1.5km Pedestrian Detection Ground Surveillance Radar

,

3km Vehicle Detection C-Band Radar

,

All-Weather Adaptability Security Surveillance Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U101-1C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Airport Security 2D C-Band Ground Surveillance Radar System for Protection Against Illegal Activities
Ground Surveillance Radar - U101-1C / C Band
The U101-1C provides state-of-the-art protection for airfield and ground security. This C-band radar system is specifically designed to detect and track ground targets, immediately reporting position and coordinate information to enable rapid threat response planning.
Key Features
  • High data rate and superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
Applications
  • Checkpoint security
  • Prison perimeter monitoring
  • Reservoir protection
  • Oil field security
  • General perimeter surveillance
Technical Specifications
Item Specification
Working mode Phased array + Pulse Doppler
Working frequency C band (5.5-5.8GHz)
Detection range 1.5km (Pedestrians)
3km (Vehicles)
Minimum detection range ≤100m
Azimuth coverage Single panel: 90° (Dual panel: 180°, 3-panel: 270°, 4-panel: 360°)
Elevation coverage 18°
Distance accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target detection speed 0.2m/s - 30m/s
Speed precision ≤0.2m/s
Data rate ≤1.5s
Net weight ≤3.8kg
Power supply AC220V/DC12V (External Battery)/35W
Interface Ethernet (UDP protocol)
Dimension 324mm x 295mm x 92mm
Working temperature -40°C to +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
