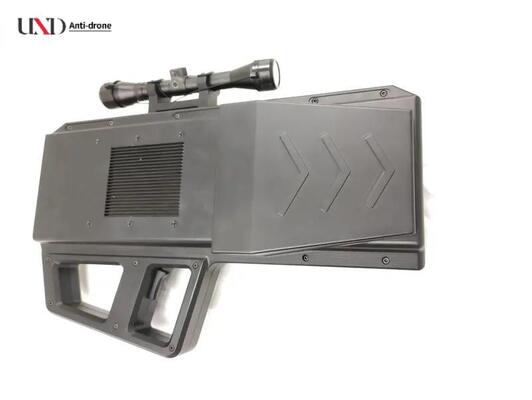

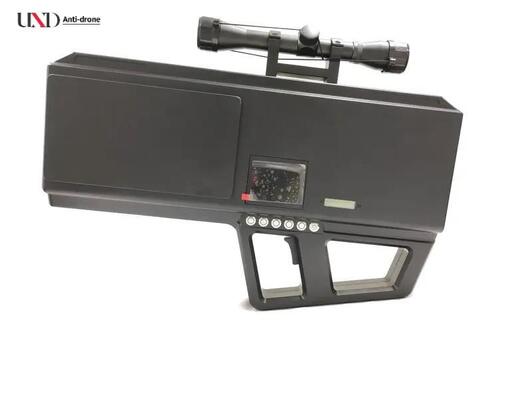

2km Range 5 Bands LCD Display Drone Jammer UAV Signal Jammer for Long Distance Control

1
MOQ
Please consult a sales engineer
Price
2km Range 5 Bands LCD Display Drone Jammer UAV Signal Jammer for Long Distance Control
Features Gallery Product Description Request A Quote
Features
Specifications
Dimensions: 490×340×90mm
Weight: 4.9KG (Device), 6.5KG (Packed)
Power Consumption: 350W
Operating Temperature: -20°C To +55°C
Battery Runtime: 60 Minutes
Total Output Power: 125W
Highlight:

2km Range Drone Jammer

,

5 Bands UAV Jammer

,

LCD Display Drone Signal Jammer
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-UAV90PRO
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
433MHz 930MHz 5.8G 2.4G Drone Jamming Device - 2km Range
Drone Shield 2km UAV Jammer with LCD Display

This 5-band portable signal jammer (433MHz, 930MHz, 5.8G, 2.4G, 1.5G GPS) is designed to effectively manage and control unauthorized drones. Developed using advanced domestic and international technology, this environmentally friendly device operates without affecting surrounding signals including mobile communications, operator base stations, automotive remotes, or police radar systems.

The system utilizes 3 primary signal output channels (2.4G, 5.8G, and GPS) to block wireless transmission signals, rendering drones uncontrollable. Extensive testing confirms the device can effectively disrupt communication and navigation between UAVs and their controllers at significant distances, enabling operators to either drive away drones or force them to land safely.

Key Features
  • Imported chips with ultra-high speed sweeping technology for multiple bandwidth signal generation
  • Wideband ultra-high gain integrated antenna with built-in battery for portability and ease of operation
  • Secondary oxidation and wear-resistant aluminum shell with intelligent temperature control and cooling
  • Effective jamming distance of 600-800 meters (dependent on remote control-to-UAV distance exceeding 100 meters)
  • Convenient power switch with indicator light for one-handed operation
  • Independent control switches for stopping surveillance, driving away drones, and forcing landing
Applications
  • Prisons and correctional facilities
  • Airports and aviation security
  • Scientific research centers
  • Detention facilities and interrogation rooms
  • Courthouses and judicial complexes
  • Military installations and strategic locations
  • Prevention of unauthorized aerial photography
Product Components
  • Power Port
  • 2.4G/5.8G Switcher
  • GPS Control
  • Carrying Handle
  • Battery Compartment
  • Antenna Position
Technical Specifications
Channel Working Frequency
CH1 - 2.4G 2400-2485MHz
CH2 - 5.8G 5725-5850MHz
CH3 - GPSL1, Glonass, BDS 1575.4±2.5MHz (1.5G-GPS)
1602±5MHz (1.5G-GLONASS)
1561±2.5MHz (BDS)
CH4 - 433MHz 430-436MHz
CH5 - 900MHz 900-930MHz
Power Supply Internal battery: 24V, 10A; or External battery
Controls 1 Power Switch, 5 Independent Band Switches
Total Output Power 125W
Battery Runtime 60 minutes
Operating Temperature -20°C to +55°C
Power Consumption 350W
Weight 4.9KG (Device), 6.5KG (Packed)
Dimensions 490*340*90mm
Antenna Gain 5.8G >12dBi, 2.4G >10dBi, 1.5G >8dBi, 900M >5dBi, 433M >3dBi
Display LCD showing battery percentage
Operating Instructions
  • Verify all accessories are complete upon unboxing
  • Ensure full charge before initial use (red light = charging, green light = full)
  • Point device toward UAV and activate switches
  • Use 2.4G/5.8G switch to stop surveillance and drive away drones
  • Use GPS switch to force landing
Package Contents
Item Quantity Specifications
Jammer Unit 1
DC24V Charger 1 AC220V-240V Input
Instruction Manual / Certificate 1
