Home /Products/Drone Jammer/590W High Power 12 Band Frequency UAV Jammer with 0.5-1KM Range Anti Drone System

590W High Power 12 Band Frequency UAV Jammer with 0.5-1KM Range Anti Drone System

1
MOQ
Please consult a sales engineer
Price
590W High Power 12 Band Frequency UAV Jammer with 0.5-1KM Range Anti Drone System
Features Gallery Product Description Chat Now
Features
Specifications
Dimensions: 513 × 462 × 233 Mm
Weight: 29.9 Kg
Humidity: 5% - 95%
Block Range: 100-500m (dependent On Local Environment)
Energy Consumption: 1180W
Total RF Power: 590W
Highlight:

590W High Power Drone Jammer

,

12 Band Frequency UAV Jammer

,

0.5-1KM Range Anti Drone System
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-50L12
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
High Power 590W Anti-Drone System - 12 Band Vehicle FPV Signal Jammer
This 12-band vehicle-mounted FPV signal jammer delivers high-power 590W performance with an effective range of 0.5-1KM for comprehensive UAV countermeasures.
590W High Power 12 Band Frequency UAV Jammer with 0.5-1KM Range Anti Drone System 0
With drone sales expected to grow exponentially and increasing incidents of unauthorized drone activity, our anti-drone system provides effective countermeasures against nefarious use of consumer and commercial drones. Designed to help public and private sector customers, where permitted by law, this system enables proactive security measures against airborne threats to safety, security, and privacy.
Technical Specifications
Frequency Output Channels
Output Port Frequency Average Output Power (+1dBm)
CH1350-450MHz46dBm (40W)
CH2450-600MHz47dBm (50W)
CH3600-700MHz47dBm (50W)
CH4700-850MHz47dBm (50W)
CH5850-1050MHz47dBm (50W)
CH61050-1200MHz47dBm (50W)
CH71200-1400MHz47dBm (50W)
CH81400-1600MHz47dBm (50W)
CH92350-2550MHz47dBm (50W)
CH105150-5350MHz47dBm (50W)
CH115700-5900MHz47dBm (50W)
CH125900-6100MHz47dBm (50W)
Power Supply: AC110-240V OR DC 24-28V
Total RF Power: 590W
Energy Consumption: 1180W
Dimensions: 513 * 462 * 233 mm
Weight: 29.9 kg
Operating Temperature: -25°C to +65°C
Humidity: 5% - 95%
Antennas: 12 pcs Omni-directional antennas
Block Range: 100-500m (dependent on local environment)
Installation & Setup
Designed for vehicle roof mounting with high-gain magnetic antennas for secure installation and optimal performance.
Pictures are for reference only

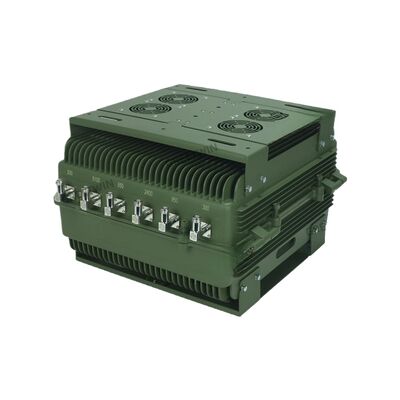

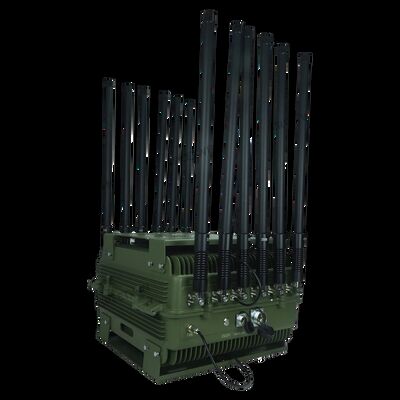

590W High Power 12 Band Frequency UAV Jammer with 0.5-1KM Range Anti Drone System 1 590W High Power 12 Band Frequency UAV Jammer with 0.5-1KM Range Anti Drone System 2
Key Features
High-gain magnetic antennas for secure vehicle roof mounting
Advanced cooling system for continuous operation
Stable performance and cost-effective solution
High jamming range with customizable cellular standards worldwide
