360° Surveillance Ground Surveillance Radar with 5km Vehicle Detection and All-Weather Adaptability for Perimeter Protection

1
MOQ
Please consult a sales engineer
Price
360° Surveillance Ground Surveillance Radar with 5km Vehicle Detection and All-Weather Adaptability for Perimeter Protection
Features Gallery Product Description Chat Now
Features
Specifications
Net Weight: ≤50kg
Power Supply: AC220V/160W
Dimensions: 580mm × 580mm × 820mm
Working Temperature: -40°C To +60°C
Target Detection Speed: 0.2m/s - 30m/s
Azimuth Coverage: 360° (4-panel Configuration)
Highlight:

360° Surveillance Ground Surveillance Radar

,

5km Vehicle Detection Perimeter Protection Radar

,

All-Weather Adaptability Security Surveillance Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U 215-4C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
High-Precision, All-Weather, and Wide-Range Global Monitoring Ground Surveillance Radar Perimeter Protection Solution
Product Overview

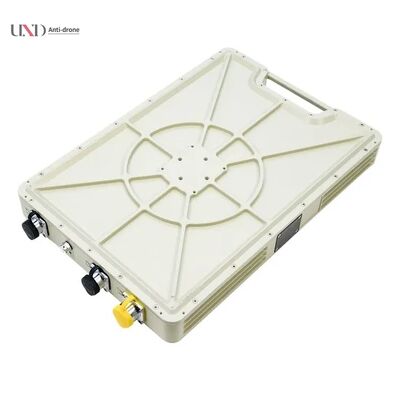

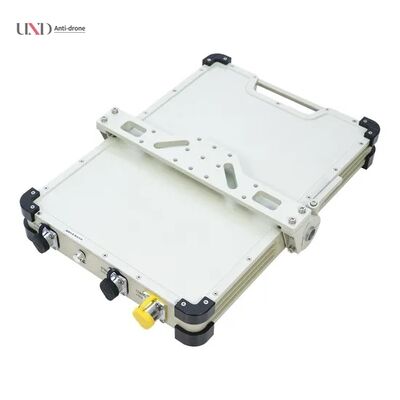

The U 215-4C Ground Surveillance Radar is an advanced C-band security surveillance system designed for comprehensive 360° detection of ground moving targets. This sophisticated phased array radar combines four U 215-1C radar units working in unison to deliver superior perimeter protection capabilities.

Key Features
  • High data rate and exceptional positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
  • Advanced phased array technology with stable performance
  • Comprehensive 360° surveillance coverage
Applications
Border security, oil field protection, prison perimeter monitoring, and other critical area security surveillance applications.
Technical Specifications
Parameter Specification
Working Mode Phased Array + Pulse Doppler
Working Frequency C Band (5.5-5.8GHz)
Detection Range 2.5km (Pedestrians)
5km (Vehicles)
Minimum Detection Range ≤100m
Azimuth Coverage 360° (4-panel configuration)
Elevation Coverage 9°
Distance Accuracy ≤5m
Azimuth Accuracy ≤1.0°
Target Detection Speed 0.2m/s - 30m/s
Speed Precision ≤0.2m/s
Data Rate ≤1.5s
Net Weight ≤50kg
Power Supply AC220V/160W
Interface Ethernet (UDP protocol)
Dimensions 580mm * 580mm * 820mm
Working Temperature -40°C to +60°C
Working Environment Rain-proof, Dust Prevention, Sand-prevention, Moisture-proof, Mould-proof, and Salt-proof
