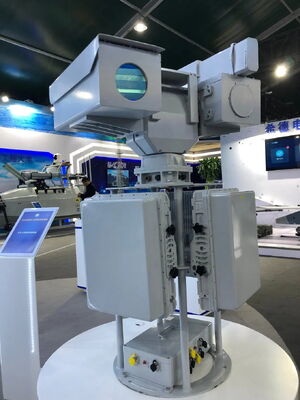

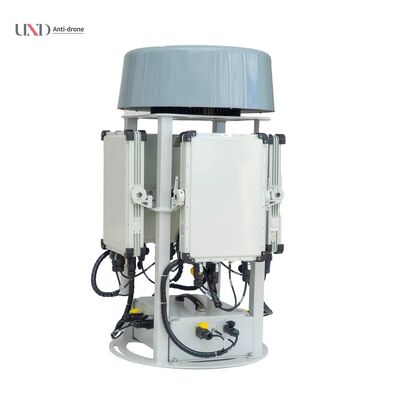

Active Phased Array Ground Surveillance Radar with C Band (5.5-5.8GHz) for 360° Surveillance and 5km Vehicle Detection

1
MOQ
Please consult a sales engineer
Price
Active Phased Array Ground Surveillance Radar with C Band (5.5-5.8GHz) for 360° Surveillance and 5km Vehicle Detection
Features Gallery Product Description Chat Now
Features
Specifications
Minimum Detection Range: ≤100m
Working Frequency: C Band (5.5-5.8GHz)
Detection Range: 2.5km (Pedestrians) 5km (Vehicles)
Target Detection Speed: 0.2m/s - 30m/s
Power Supply: AC220V/160W
Working Temperature: -40°C ~ +60°C
Highlight:

C Band Ground Surveillance Radar

,

360° Surveillance Phased Array Radar

,

5km Vehicle Detection Security Surveillance Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U 215-4C
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Active Phased Array Ground Surveillance Radar for Vehicle/Human Detection
Ground Surveillance Radar U 215-4C / C Band

The U 215-4C is an advanced security surveillance radar system featuring the same phased array technology as the U 215-1C model, with enhanced capabilities and reliable performance for 360° ground moving target detection. While the U 215-1C operates as a single-array radar, the U 215-4C integrates four U 215-1C radar units working in unison for comprehensive coverage.

Key Features
  • High data rate and superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
Applications
Border security, oil field protection, prison monitoring, and other critical area surveillance applications
Technical Specifications
Item Specification
Working mode Phased array + Pulse Doppler
Working frequency C band (5.5-5.8GHz)
Detection range 2.5km (Pedestrians)
5km (Vehicles)
Minimum detection range ≤100m
Azimuth coverage 4-panel: 360°
Elevation coverage 9°
Distance accuracy ≤5m
Azimuth Accuracy ≤1.0°
Target detection speed 0.2m/s - 30m/s
Speed precision ≤0.2m/s
Data rate ≤1.5s
Net weight ≤50kg
Power supply AC220V/160W
Interface Ethernet (UDP protocol)
Dimension 580mm x 580mm x 820mm
Working temperature -40°C ~ +60°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
